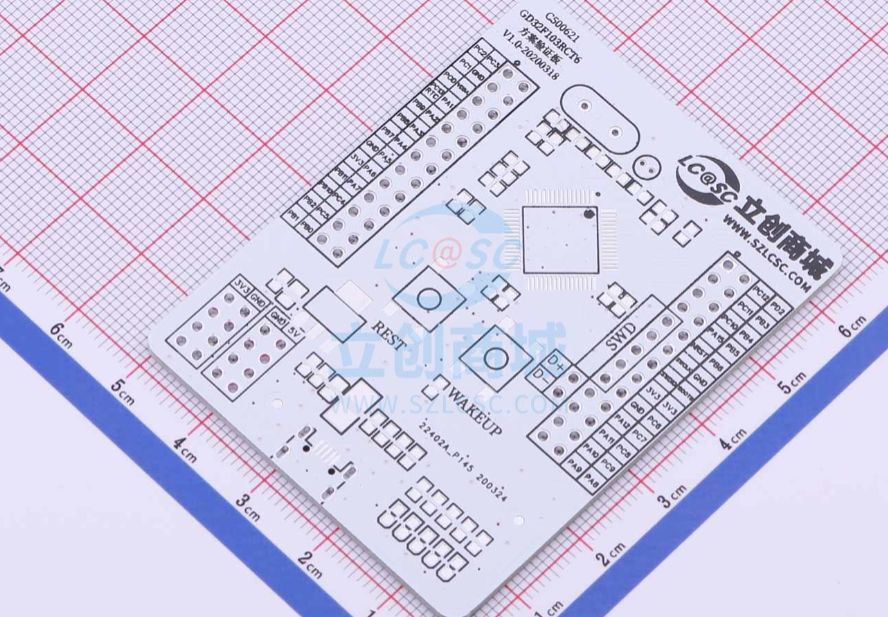

A solution verification board designed for the GD32F103RCT6 chip model of GigaDevice. The entire board is powered by micro USB and regulated output of 3.3V through the 1117 voltage regulator tube. It is equipped with a wake-up button and a reset button in the middle, and IOs lead from the chip pins on both sides. The port is used for debugging, including 3.3V and 5V voltage selection, BOOT0 mode selection, SWD debugging interface, USB device selection, power indicator light and 4 LED lights for debugging. Note: This verification board is also compatible with some GD32 chip models packaged as LQFP-64.
