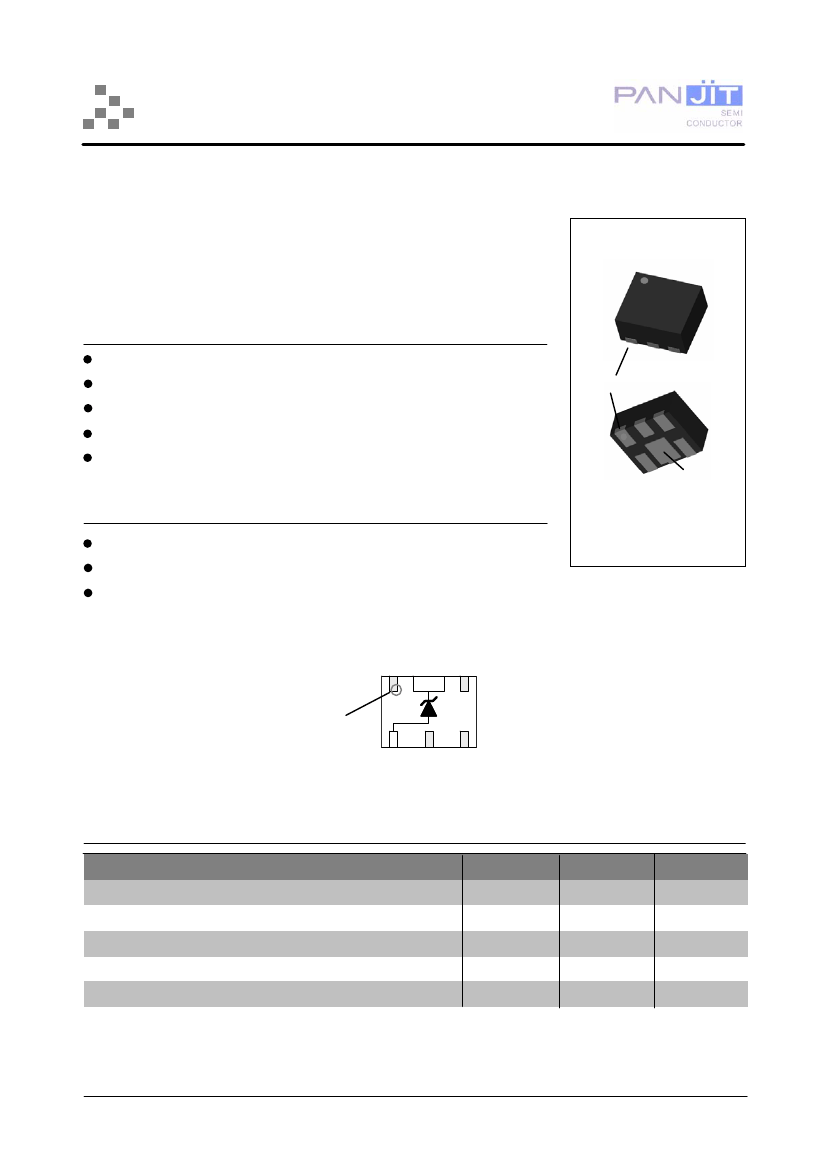

PJBZ5200Q SERIES

500mW ZENERS IN QFN 1.2x1.5 mm² PACKAGE

This new PANJIT Zener family comes in a very small package that only uses

1.8 sq mm PCB area. With a maximum power dissipation rating of 500mW,

the PJBZ5200Q Series is an industry first. It's superior power-footprint ratio

of 278mW per sq mm, makes it ideal for applications where board space is a

premium.

PRELIMINARY

SPECIFICATION FEATURES

Working Peak Reverse Voltage Range - 2.4V to 39V

5% Tolerance (2% Optional)

500mW at minimum pad mounting conditions, Room Temperature

Low profile QFN1.2x1.5 sq mm Package

Close Compatibility with the SC75 package layout

Cathode

Anode

APPLICATIONS

Camcorders, MP3 Players, Digital still cameras

Handheld/Laptop Computers

Portable Instrumentation Electronics

QFN 1.2x1.5 sq mm

Cathode

Dot indicates

polarity

Anode

TOP VIEW

MAXIMUM RATINGS

Tj = 25°C

Rating

Power dissipation, minimum pad mounting

Thermal resistance Case to Ambient

Operating Temperature Range

Storage Temperature Range

Lead Soldering Temperature (max 10 secs)

Symbol

th CA

stg

Value

500

180

-55 to 125

-55 to 150

260

Units

°C/W

°C

6/9/2004

Page

www.panjit.com
