KBJ4B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> KBJ4B

KBJ4B: DescriptionBridge Rectifier Diode, 4A, 100V V(RRM),; CategoryDiscrete semiconductor diode; File Size761KB，2 Pages; ManufacturerGood-Ark; Environmental Compliance; Suzhou Gotech is a complete and comprehensive manufacturer of design, manufacturing, packaging and sales in the domestic semiconductor discrete device diode industry. From the independent development of front-end chips to various packaging technologies of back-end finished products, it has formed a complete industrial chain. The main products include leadless integrated circuit products and discrete device products with the latest packaging technology, automotive rectifier diodes, power modules, rectifier diode chips, silicon rectifier diodes, switching diodes, Zener diodes, micro bridge piles, military fuses, photovoltaic bypass modules, etc., with a total of more than 50 series and more than 1,500 varieties. The products are widely used in many fields such as aerospace, automobiles, green lighting, IT, household appliances and power supply devices for large equipment. Design and develop silver paste for solar cells and various electronic pastes, and develop and mass produce various new sensors in the field of the Internet of Things.

Download Datasheet Parametric View All

KBJ4B Overview

Bridge Rectifier Diode, 4A, 100V V(RRM),

KBJ4B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Good-Ark
package instruction	R-PSFM-T4
Reach Compliance Code	compliant
Is Samacsys	N
Minimum breakdown voltage	100 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSFM-T4
Maximum non-repetitive peak forward current	150 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2.4 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

KBJ4B Preview

Download Datasheet

View All

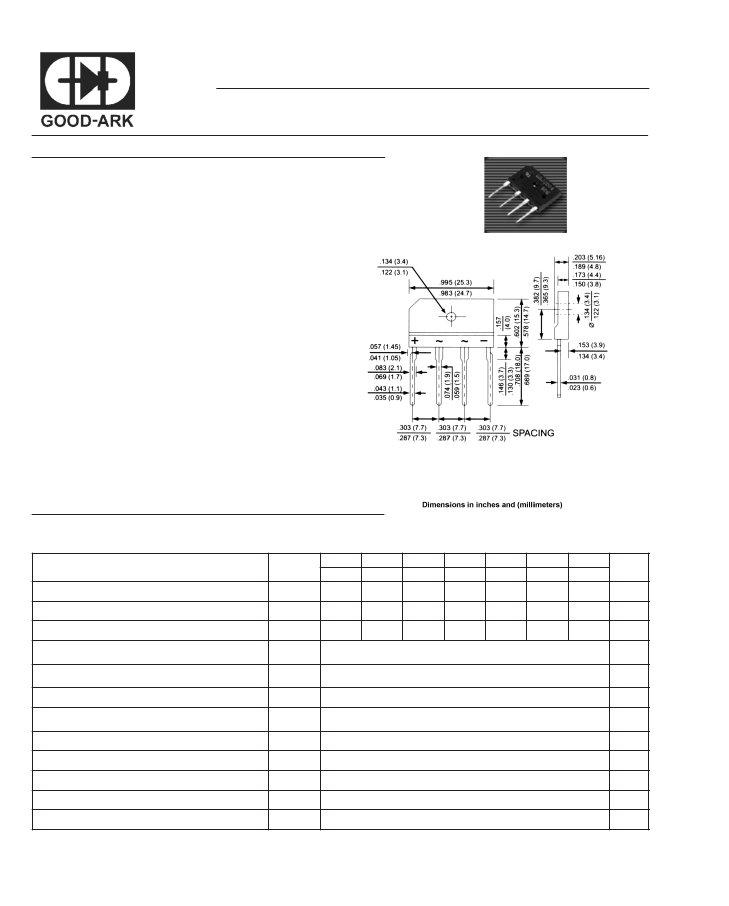

GBJ/KBJ4A thru GBJ/KBJ4M

Glass Passivated Single-Phase Bridge Rectifiers

Voltage Range 50 to 1000 Volts Forward Current 4.0 Amperes

Features

Surge overload rating - 150 Amperes peak

Ideal for printed circuit boards

Plastic material has Underwriters Laboratory Flammability

Classification 94V-0

Mounting Position: Any

Maximum Ratings and Electrical Characteristics

Rating at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Parameter

Maximum recurrent peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward

(with heatsink Note 2)

rectified output current @T

=100

C (without heatsink)

Peak forward surge current, 8.3ms single half sine-wave

superimposed on rated load (JEDEC Method)

Max. instantaneous forward voltage drop at 2.0A DC

Maximum DC reverse current

at rated DC blocking voltage per element

Rating for fusing (t<8.3ms)

Typical junction capacitance per element (Note 1)

Typical thermal resistance (Note 2)

Operating temperature range

Storage temperature range

Notes:

=25 C

=125

Symbols

RRM

RMS

F(AV)

FSM

STG

K B J4A

GBJ4A

K B J4B

GBJ4B

100

K B J4D

GBJ4D

200

140

200

K B J4G

GBJ4G

400

280

400

4.0

2.4

150.0

1.0

5.0

500.0

2.2

-55 to +150

K B J4J

GBJ4J

600

420

600

K B J4K

GBJ4K

800

560

800

K B J4M

GBJ4M

1000

700

1000

Units

Volts

Amps

Volt

se c

C/W

1. Measured at 1.0MHz and applied reverse voltage of 4.0V DC

2. Device mounted on 50mm x 50mm x 1.6mm Cu plate heatsink
