1F21030D-PFSL-AN datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1F21030D-PFSL-AN

1F21030D-PFSL-AN: DescriptionBoard Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

1F21030D-PFSL-AN Overview

Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,

1F21030D-PFSL-AN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1F
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

1F21030D-PFSL-AN Preview

Download Datasheet

View All

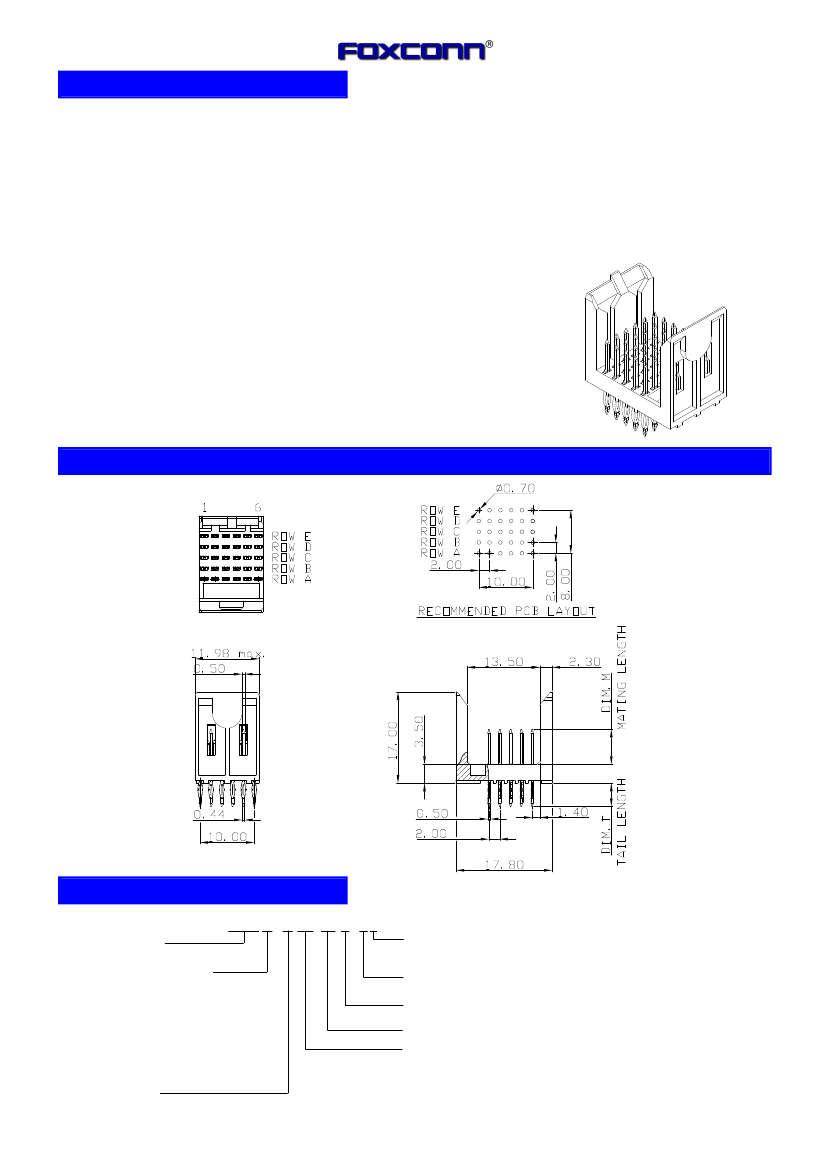

SPECIFICATIONS

FUTURE BUS CONNECTOR

1F Series

Header Press Fit Type

2.0mm Pitch

5 Row s

Mechanical

Contact Retention Force:

1.0Kg min.

Electrical

Voltage Rating:

750V

Current Rating:

Contact Resistance:

55m

Ω

max.

Dielectrical Withstanding Voltage:

1000V

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

LCP, UL 94-0 rated, Ivory White

Contact:

Phosphor Bronze

Plating:

See “ORDERING INFORMATION”

DRAWING

ORDERING I NF OR MATI ON

PRODUCT NO.: 1 F 2 1 0 3 0 * - P * * F S * - * *

POS. NO.:

030=030 pos.

Lead Free Code:

N=None

F=Lead Free

Mating Area Plating:

1=GOLD FLASH

3=0.76um(30u")MIN. GOLD PLATING

5=1.27um(50u")MIN. GOLD PLATING

6=0.25um(10u")MIN. GOLD PLATING

A=0.76um(30u")MIN. FPT PLATING

B= 0.76um(30u")MIN. FPT PLATING

C=1.27um(50u")MIN. FPT PLATING

D=1.27um(50u")MIN. FPT PLATING

K=0.50um(20u")MIN. FPT PLATING

Package Type:

A=Tube

Extension Code:

N,T,L,M

BODY STYLE

Selective Pin Pattern

(Detail Please Refer To

Customer Drawing)

Tail Style:

P=Press Fit

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
