1F230103-P061SS-AF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1F230103-P061SS-AF

1F230103-P061SS-AF: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal, Ivory Insulator, Plug, LEAD FREE; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

1F230103-P061SS-AF Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal, Ivory Insulator, Plug, LEAD FREE

1F230103-P061SS-AF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.701 inch
subject depth	0.669 inch
body length	0.47 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0P10
Contact to complete cooperation	GOLD (30)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	10 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	IVORY
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	1F
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

1F230103-P061SS-AF Preview

Download Datasheet

View All

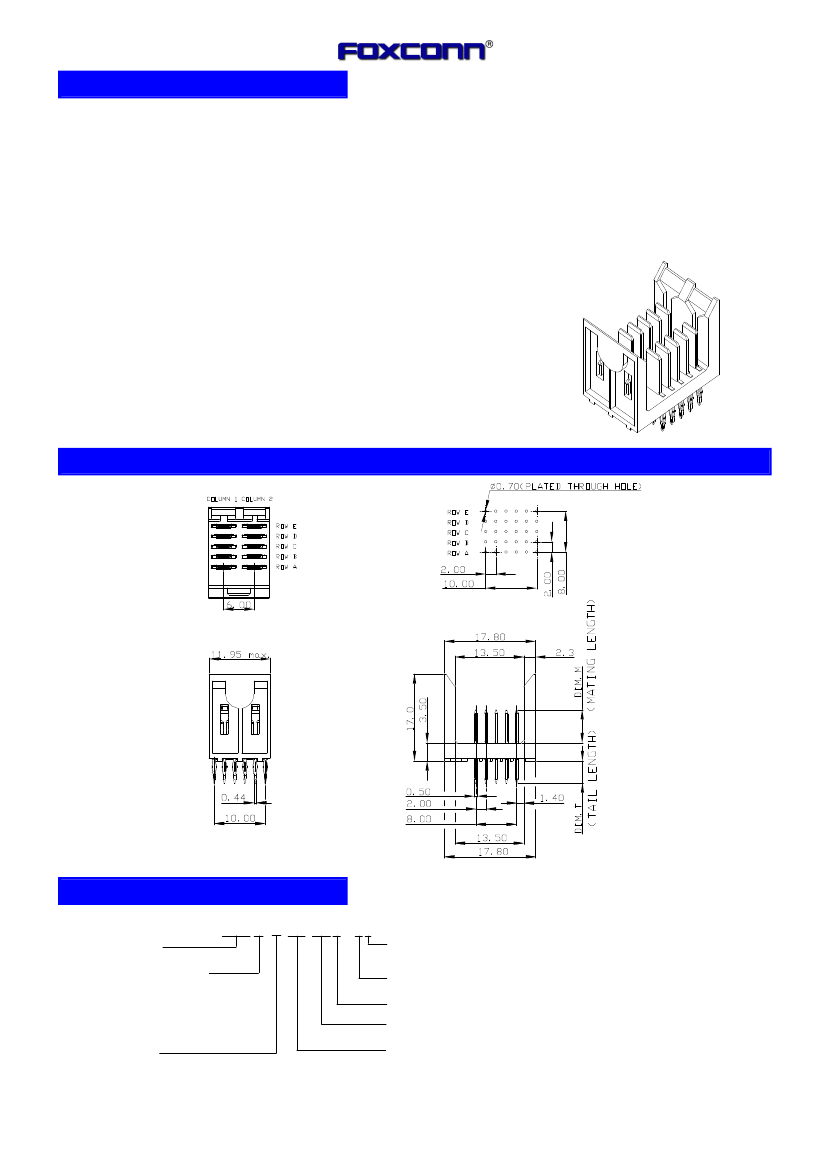

SPECIFICATIONS

FUTURE BUS CONNECTOR

1F Series

Plug, Press Fit Type

2.0mm Pitch

5 Row s

Mechanical

Contact Retention Force:

1.00Kg min.

Electrical

Voltage Rating:

750V

Current Rating:

2.75A

Contact Resistance:

10m

Ω

max.

Dielectrical Withstanding Voltage:

1000V

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

LCP, UL 94-0 rated, Ivory White

Contact:

Phosphor Bronze

Plating:

See “ORDERING INFORMATION”

DRAWING

ORDERING I NF OR MATI ON

POS. NO.:

010=010 pos.

PRODUCT NO.: 1 F 2 3 0 1 0 * - P 0 6 1 S * - * *

Lead Free Code:

N=None

F=Lead Free

Mating Area Plating:

1=GOLD FLASH

3=0.76um(30u")MIN. GOLD PLATING

5=1.27um(50u")MIN. GOLD PLATING

6=0.25um(10u")MIN. GOLD PLATING

A=0.76um(30u")MIN. FPT PLATING,

0.25um(10u")MIN. GOLD INCLUDED

Package Type:

A=Tube

Extension Code:

N,T,L,M,S

BODY STYLE

Selective Pin Pattern

(Detail Please Refer To

Customer Drawing)

Tail Style:

P=Press Fit

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
