1F12048A-S2020N-AF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1F12048A-S2020N-AF

1F12048A-S2020N-AF: DescriptionBoard Connector, 48 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

1F12048A-S2020N-AF Overview

Board Connector, 48 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle, LEAD FREE

1F12048A-S2020N-AF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.543 inch
subject depth	0.654 inch
body length	0.944 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	45 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	IVORY
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	1F
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.104 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0
Base Number Matches	1

1F12048A-S2020N-AF Preview

Download Datasheet

View All

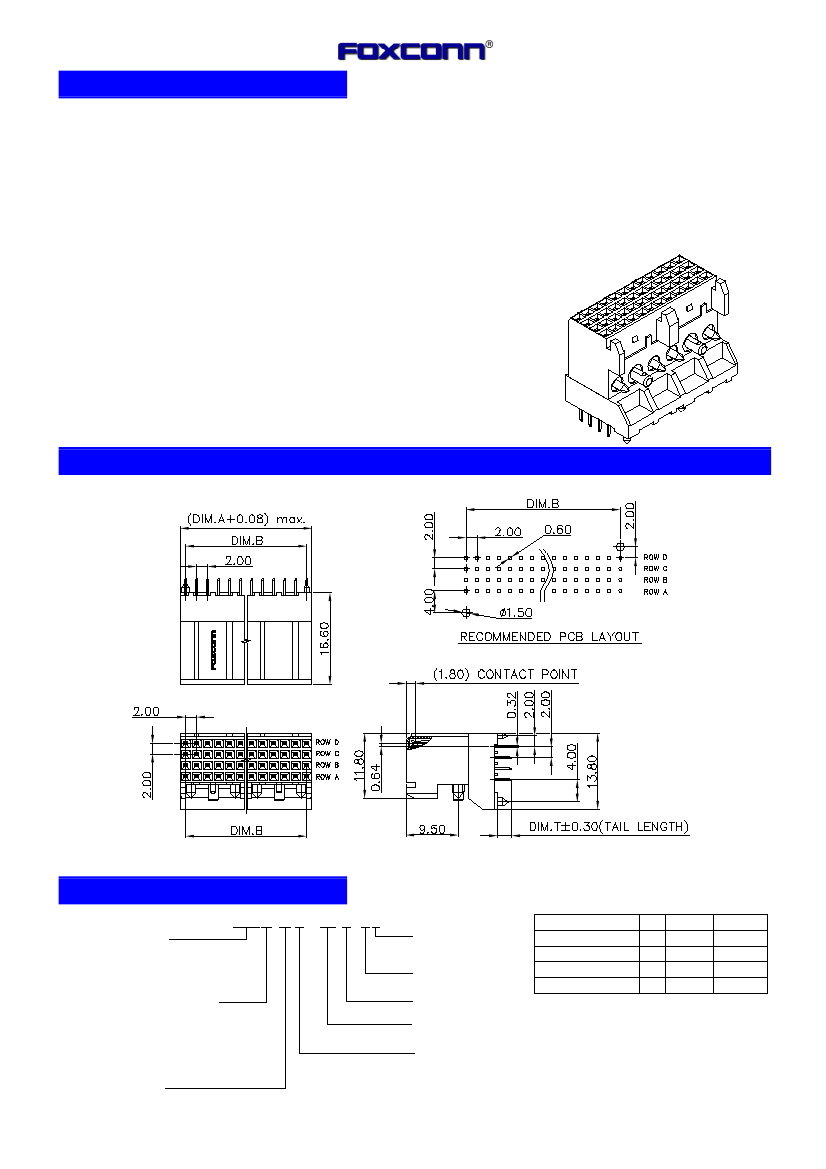

SPECIFICATIONS

FUTURE BUS CONNECTOR

1F Series

Rec. Solder Type

2.0mm Pitch

4 Row s

Mechanical

Contact Retention Force:

0.50Kg min.

Electrical

Voltage Rating:

750V

Current Rating:

Contact Resistance:

45m

Ω

max.

Dielectrical Withstanding Voltage:

1000V

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

LCP, UL 94-0 rated, Ivory White

Contact:

Phosphor Bronze

Plating:

See “ORDERING INFORMATION”

DRAWING

ORDERING I NF OR MATI O N

PRODUCT NO.: 1 F 1 2 * * * * - S * 0 2 0 * - * *

POS. NO.:

024=024 pos.

048=048 pos.

096=096 pos.

192=192 pos.

1F12024*-S*020*-**

192

11.90

23.90

47.90

95.90

10.00

22.00

46.00

94.00

DIM. B

Lead Free Code:

N=None

F=Lead Free

1F12048*-S*020*-**

1F12096*-S*020*-**

1F12192*-S*020*-**

P/N

Package Type:

A=Tube

POS. DIM. A

Mating Area Plating:

1=GOLD FLASH

3=0.76um(30u")MIN. GOLD PLATING

5=1.27um(50u")MIN. GOLD PLATING

6=0.25um(10u")MIN. GOLD PLATING

A=0.76um(30u")MIN. FPT PLATING,

0.25um(10u")MIN. GOLD INCLUDED

Extension Code:

N=Normal Plating

BODY STYLE

20=Vertical Standard

Tail Length(DIM.T)

2=2.65mm

3=3.45mm

Tail Style:

S=Solder Type

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
