1F11048K-S454 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1F11048K-S454

1F11048K-S454: DescriptionBoard Connector, 48 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Ivory Insulator, Receptacle; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

1F11048K-S454 Overview

Board Connector, 48 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Ivory Insulator, Receptacle

1F11048K-S454 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.622 inch
subject depth	0.669 inch
body length	0.944 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	45 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	IVORY
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	1F
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	40u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.104 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0
Base Number Matches	1

1F11048K-S454 Preview

Download Datasheet

View All

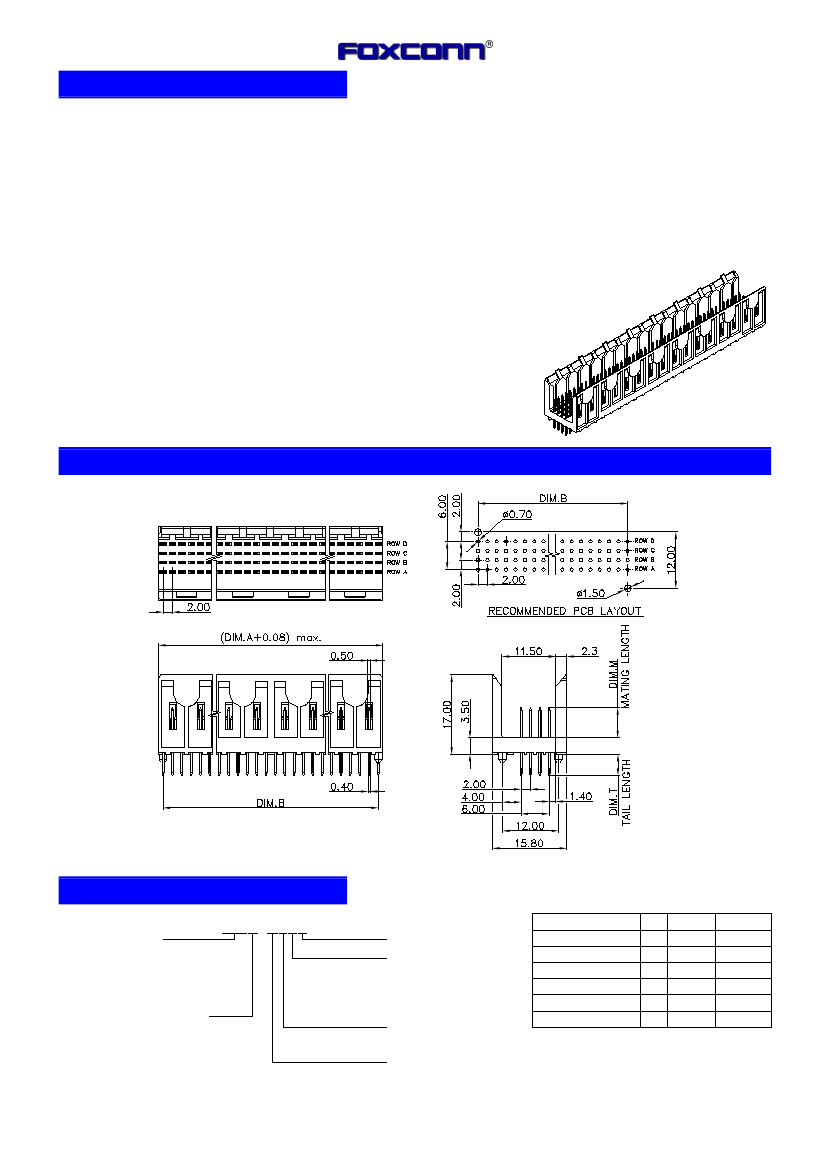

SPECIFICATIONS

FUTURE BUS CONNECTOR

1F Series

Header Sol der Type

2.0mm Pitch

4 Row s

Mechanical

Contact Retention Force:

1.0Kg min.

Electrical

Voltage Rating:

750V

Current Rating:

Contact Resistance:

45m

Ω

max.

Dielectrical Withstanding Voltage:

1000V

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

LCP, UL 94-0 rated, Ivory White

Contact:

Phosphor Bronze

Plating:

See “ORDERING INFORMATION”

DRAWING

ORDERING I NF OR MATI O N

PRODUCT NO.: 1 F 1 1 * * * * - S * * 4

POS. NO.:

024=024 pos.

048=048 pos.

072=072 pos.

096=096 pos.

120=120 pos.

192=192 pos.

1F11024*-S**4

120

192

11.90

23.90

35.90

47.90

59.90

95.90

10.00

22.00

34.00

46.00

58.00

94.00

DIM. B

Body Style

Mating Length(DIM.M)

1=5.00 mm

2=5.75 mm

3=6.50 mm

4=7.25 mm

5=8.00 mm

1F11048*-S**4

1F11072*-S**4

1F11096*-S**4

1F11120*-S**4

1F11192*-S**4

P/N

Mating Area Plating:

1=GOLD FLASH

3=0.76um(30u")MIN. GOLD PLATING

5=1.14um(45u")MIN. GOLD PLATING

6=0.25um(10u")MIN. GOLD PLATING

A=0.76um(30u")MIN. FPT PLATING,

0.25um(10u")MIN. GOLD INCLUDED

K=1.02um(40u")MIN. FPT PLATING,

0.76um(30u")MIN. GOLD INCLUDED

Tail Length(DIM.T)

4=2.65mm

5=3.45mm

POS. DIM. A

Tail Style:

S=Solder Type

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
