2R2112-153-AN datasheet, PDF - EEWORLD Datasheet

2R2112-153-AN: DescriptionDatacom Transformer, LAN; 10/100 BASE-T Application(s); CategoryPower management transformer; File Size40KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

2R2112-153-AN Overview

Datacom Transformer, LAN; 10/100 BASE-T Application(s)

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
application	LAN; 10/100 BASE-T
Certification	UL
high	7.2 mm
length	14 mm
Manufacturer's serial number	2R
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TUBE
physical size	14.0mm X 7.8mm X 7.2mm
surface mount	NO
Transformer type	DATACOM TRANSFORMER
width	7.8 mm
Base Number Matches	1

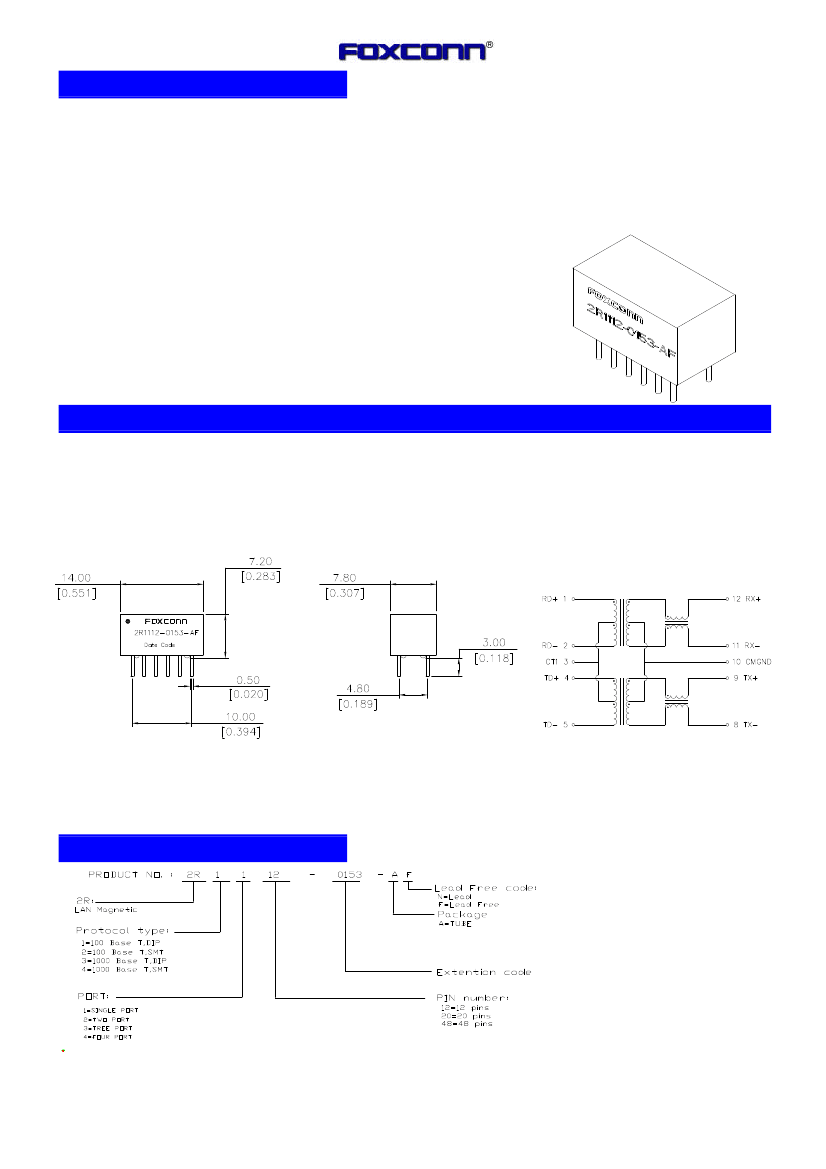

SPECIFICATIONS

Lan Transformer

Lan Transformer Series

10/100 BASE-T

FOR 1 PORTS RJ45

12 PINS

Electrical

Current Rating:

1.5A max.

Dielectric Withstanding Voltage:

1500VAC

Physical

Housing:

UL 94V-0, Black LCP,30% Glass

Contact:

Phosphor bronze

Operating Temperature:

0℃ to +70℃

DRAWING

ORDERING I N F O R M ATION

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
