2EG0821H-D2D: DescriptionCard Edge Connector, 164 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

2EG0821H-D2D Overview

Card Edge Connector, 164 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE

2EG0821H-D2D Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	unknown
Connector type	CARD EDGE CONNECTOR
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	2EG
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	164
UL Flammability Code	94V-0
Base Number Matches	1

2EG0821H-D2D Preview

Download Datasheet

View All

SPECIFICATIONS

PCI EXPRESS

2EG Series

Vertical Type

1. 00mm [.039”] Pitch

36 Pos . (1X)

64 Pos. (4X)

98 Pos. (8X)

164 Pos. (16X)

Mechanical

Contact Retention Force:

0.50kgf min.

Mating force:

117gf max. per contact pair

Unmating Force:

15.4gf min per contact pair

Durability:

50 Cycles

Electrical

Current Rating:

1.1A max.

Contact Resistance:

30mΩ max. initial

Dielectric Withstanding Voltage:

300V

Insulation Resistance:

1000MΩ min.

Physical

Housing:

Thermoplastic, UL 94V-0 rated, in Black Color

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-40℃ to +105℃

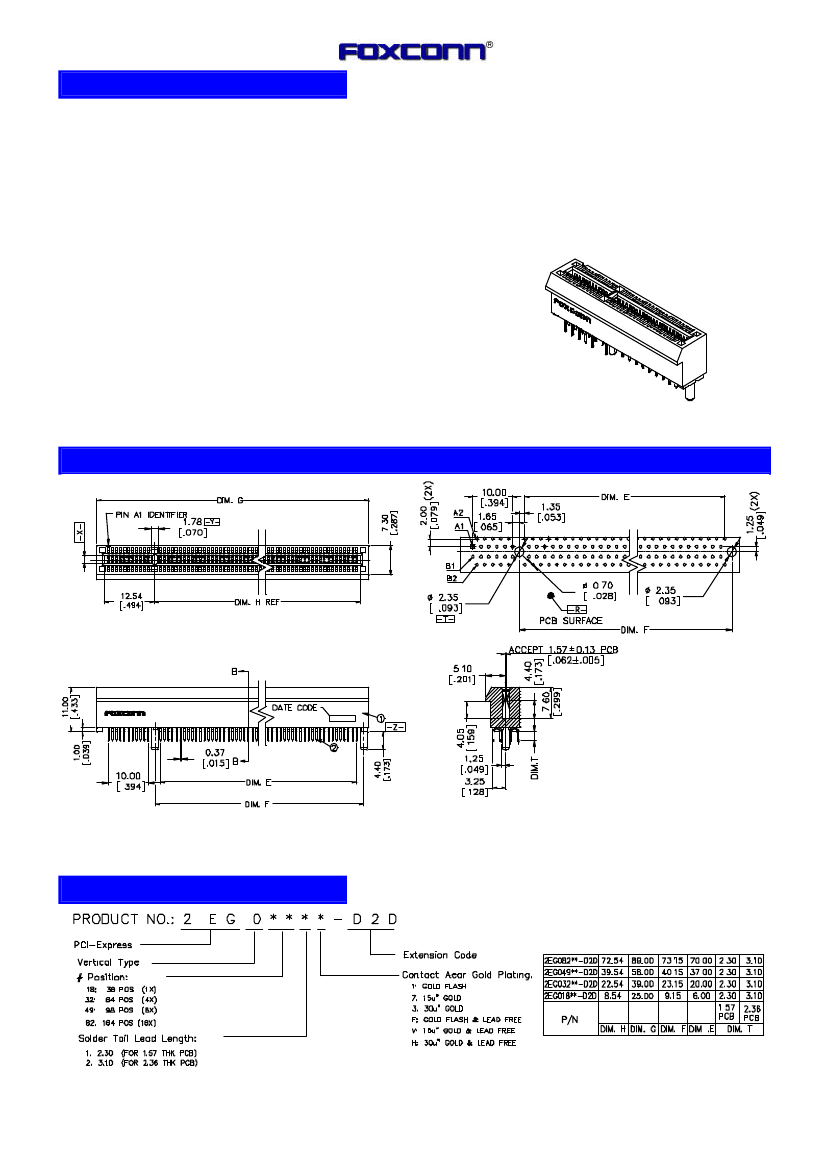

DRAWING

ORDERING I N F O R M A T I O N

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
