HL20081U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HL20081U

HL20081U: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug,; CategoryThe connector The connector; File Size98KB，3 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

HL20081U Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug,

HL20081U Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	FOXCONN
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.35 inch
subject depth	0.365 inch
body length	1.101 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	HL20
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

HL20081U Preview

Download Datasheet

View All

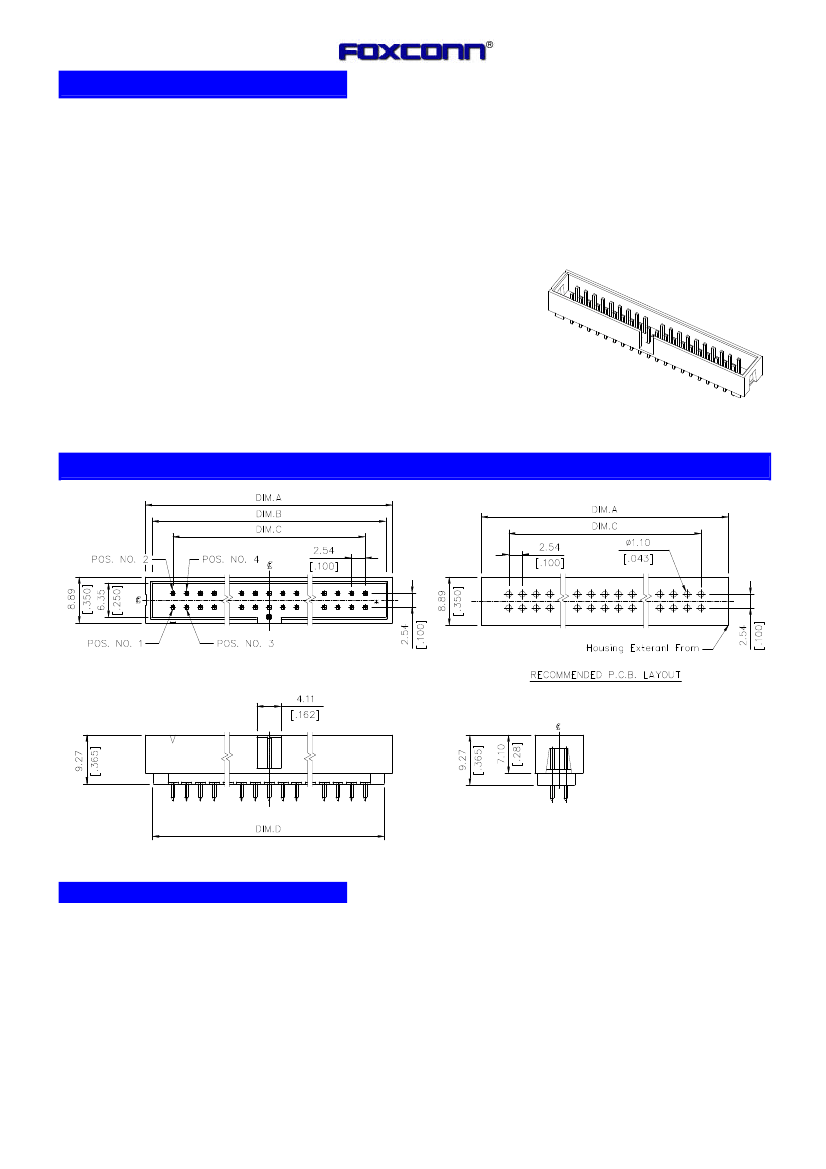

SPECIFICATIONS

SHROUDED Connector

HL20 Series

Vertical, T/H Type

Plug

2.54mmX2.54mm

[.100] X [.100] Pitch

Mechanical

Contact Retention Force:

1.36kg min.

Electrical

Current Rating:

3A Per Pin Min.

Dielectric Withstanding Voltage:

500V RMS

Insulation Resistance:

1000MΩ min.

Physical

Housing:

Thermoplastic UL 94V-0 Rated In Black Color

Contact:

Brass

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-10℃ to +85℃

DRAWING

ORDERING I N F O R M ATION

See The Attachment I

See The Attachment II

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
