2H172211-EB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2H172211-EB

2H172211-EB: DescriptionBoard Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

2H172211-EB Overview

Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,

2H172211-EB Parametric

Parameter Name	Attribute value
Maker	FOXCONN
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	2H
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	154
UL Flammability Code	94V-0
Base Number Matches	1

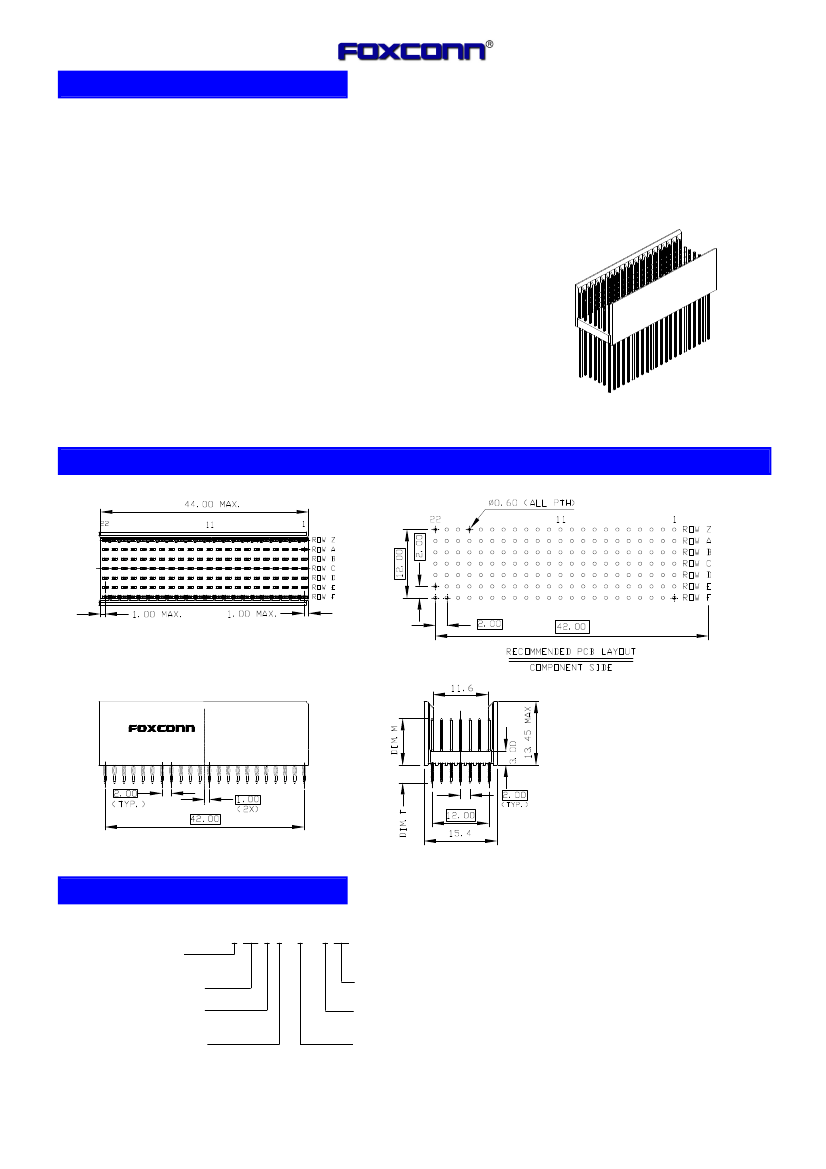

2H172211-EB Preview

Download Datasheet

View All

SPECIFICATIONS

Mechanical

Contact Retention Force:

0.5Kg min.

Electrical

Voltage Rating:

500V

Current Rating:

Contact Resistance:

20m

Ω

max.

Dielectrical Withstanding Voltage:

750V

Insulation Resistance:

10000M

Ω

min.

Physical

Housing:

PBT, UL 94-0, Gray

Contact:

Phosphor Bronze

Plating:

See “ORDERING INFORMATION”

HARD METRIC CONNECTOR

2H Seri es

Hard Metric Header Type B

Press Fit Type

2.0mm Pitch

5+2 Row

DRAWING

ORDERING I NF OR MATI ON

PRODUCT NO.: 2H1* * * 0 * - * B * * *

Row No.

5:5 Row

7:5+2Row

Column No.:

22:22 Column

Selective Pin Pattern

Option For Tail Length

and Hot Swap

Extension Code

N, S, E, F

Location Peg:

0:W/O Location Peg

1:W/ Location Peg

Plating Spec.

1:Gold Flash

3:30u" (0.76um) FPT Plating

5:50u" (1.27um) Au Plating

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
