HF5609E-F8N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HF5609E-F8N

HF5609E-F8N: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size62KB，2 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

HF5609E-F8N Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

HF5609E-F8N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOXCONN
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (100)
Contact completed and terminated	TIN (100)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HF56
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

HF5609E-F8N Preview

Download Datasheet

View All

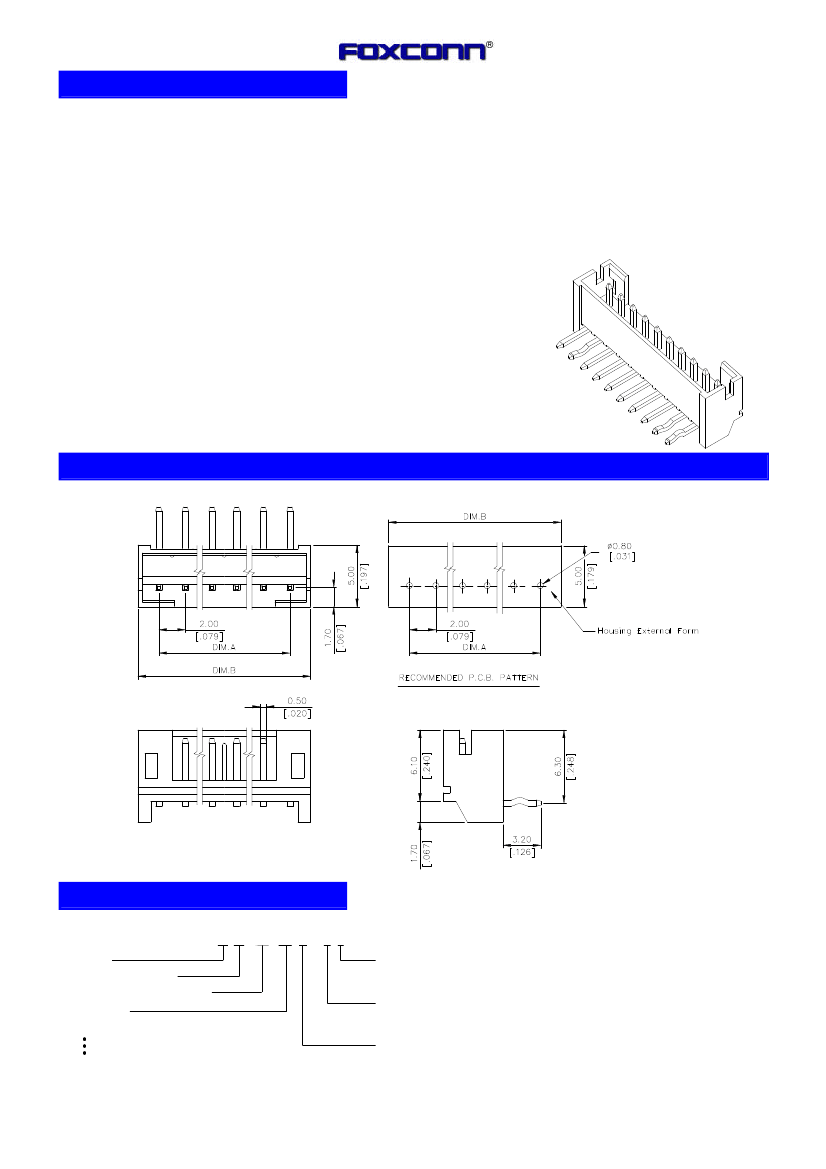

SPECIFICATIONS

Friction Header Connector

HF56 Series

Friction T/H Type

2.00mm [.079"] Pitch

Mechanical

Contact Retention Force:

0.91 KGF Min

Durability: 500 Cycles

Electrical

Voltage Rating:

500V

Current Rating:

2.0A per pin min

Insulation Resistance:

1000MΩ min

Physical

Housing:

Thermoplastic, Glass Filled , UL94V-0 Rating

Contact:

Copper Alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-40℃ to +105℃

DRAWING

ORDERING INFORMATION

PRODUCT NO.: H F 5 6 * * * - * *

Header

High Friction Header

Termination & Contact Type

No. Of Pos

2=2 Pos

3=3 Pos

15=15 Pos

Optional For Housing Material

None: PA4.6

N:PA6.6 Color White

Optional For Cont Omitted

None: Standard Prouduct

F8: Pin #7 Omitted

Optional For Plating

0=100u" Tin/Lead

E=100u" min. Tin with

Lead free "RoHS COMPLIANCE"

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
