HS7006E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HS7006E

HS7006E: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size104KB，2 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

HS7006E Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, Plug, ROHS COMPLIANT

HS7006E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOXCONN
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HS70
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

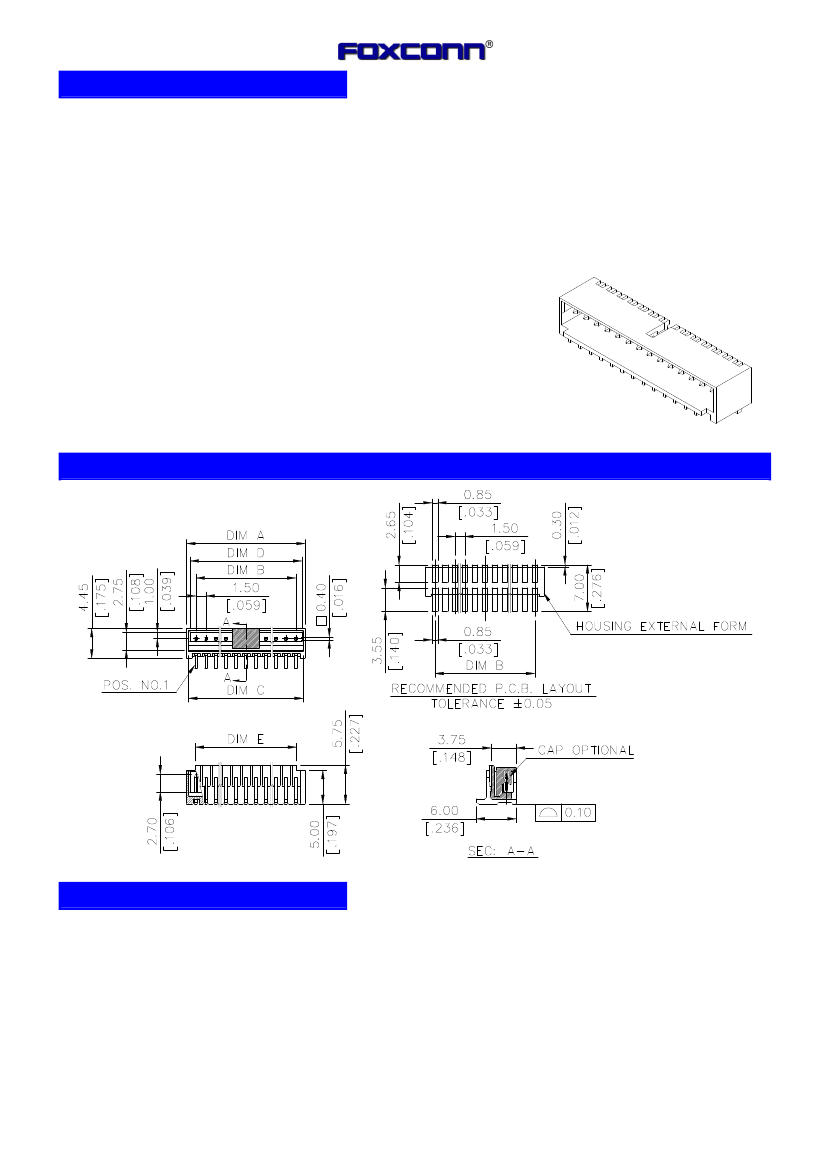

HS7006E Preview

Download Datasheet

View All

SPECIFICATIONS

Header Connector

HS70 Series

SM T Type

Plug

1.50mm [.059’’] Pitch

Mechanical

Contact Retention Force:

0.68 Kgf min.Per Pin

Electrical

Voltage Rating:

50 V

Current Rating:

1.0A per. pin

Dielectric Withstanding Voltage:

500V AC

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

Thermoplastic, UL 94V-0 rating in ivory color

Contact:

Copper Alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-40

℃

to +105

℃

DRAWING

ORDERING I NF OR MATI ON

SEE ATTACHMENT I

SEE ATTACHMENT II

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
