EW93501-C9-DF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> EW93501-C9-DF

EW93501-C9-DF: DescriptionCard Edge Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Latch & Eject, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

EW93501-C9-DF Overview

Card Edge Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Latch & Eject, Black Insulator, Receptacle, LEAD FREE

EW93501-C9-DF Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.37 inch
subject depth	0.6 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	EW
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	70
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

EW93501-C9-DF Preview

Download Datasheet

View All

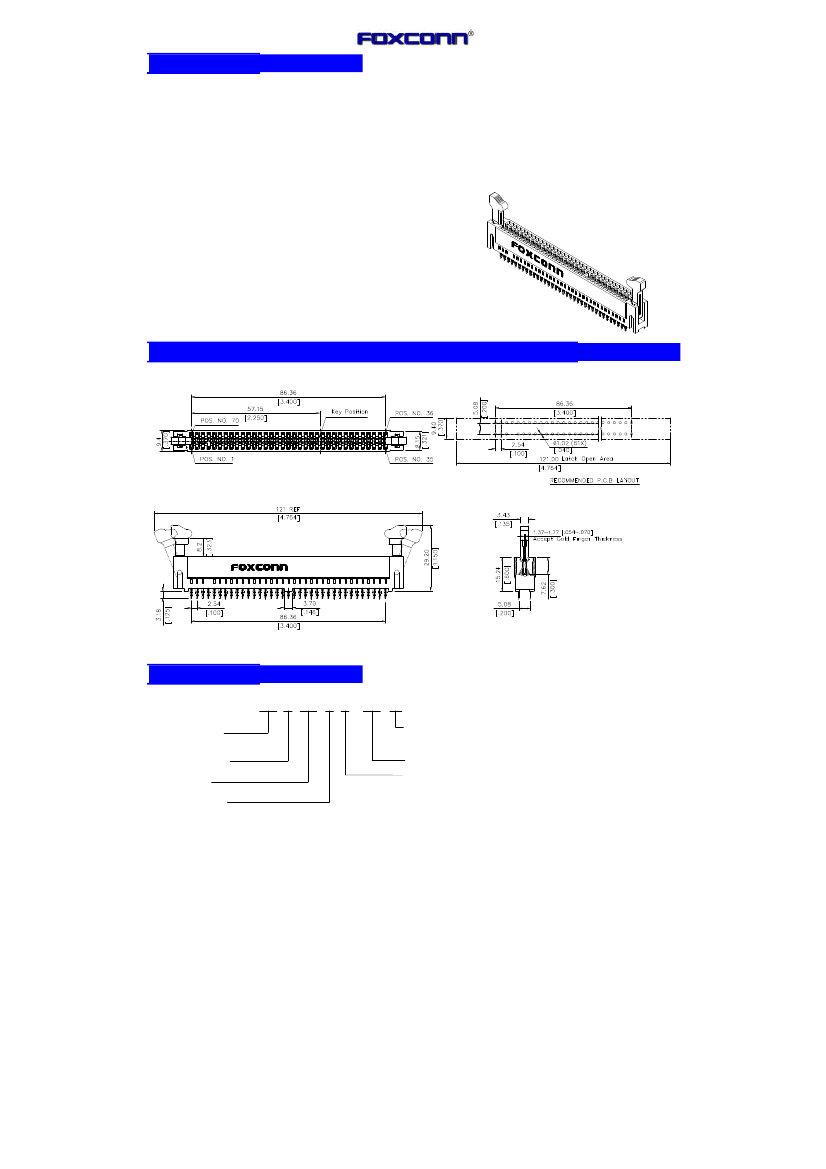

SPECIFICATIONS

ISA Connector

EW Series

Vertical Type, Press Fit

2.54mm [. 100”] Pitch

70 Pos .

Mechanical

Contact Retention Force:

6.80kgf min.

Mating Force:

340gf max. per Contact Pair

Unmating Force:

28gf min. per Contact Pair

Durability:

500 Cycles

Electrical

Current Rating:

3A max.

Current Voltage:

250V

Contact Resistance:

15mΩ max. initial

Dielectric Withstanding Voltage:

1000V

Insulation Resistance:

5000MΩ min.

Physical

Housing:

Thermoplastic, UL 94V-0 rated, in Black Color

Contact:

Copper alloy

Hook:

Phosphor Bronze

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-55℃ to +85℃

DRAWING

ORDERING

I N F O R M ATION

PRODUCT NO.: EW 9 3 5 0 * - C9 - **

Series Prefix

2.54 [.100] Pitch

Edge Card Conn.

Plating Type

DN=Tin/Lead

DF=Lead Free

Termination Type

9=Press Fit Type

Extension Code

Contact Area Plating

1=Gold Flash

2=20u" Gold

3=30u" Gold

6=10u" Gold

7=15u" Gold

No.of Pos.

35=70 Pos.

Tail Length Type

0=3.18 [.125]

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
