EI09407-RC-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> EI09407-RC-N

EI09407-RC-N: DescriptionCard Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

EI09407-RC-N Overview

Card Edge Connector, 188 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,

EI09407-RC-N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	CARD EDGE CONNECTOR
Contact completed and terminated	GOLD (15)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	EI
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	188
UL Flammability Code	94V-0
Base Number Matches	1

EI09407-RC-N Preview

Download Datasheet

View All

SPECIFICATIONS

EISA Connector

EI Series

Vertical Type, Metal H/D

1.27mm [. 050”] Pitch

188 Pos.

Mechanical

Contact Retention Force:

0.45kgf min.

Contact Insertion Forcer:15.9kgf

max

Durability:

100 Cycles

Electrical

Current Rating:

3A per Upper Contact; 1A per Lower Contact

Current Voltage:

250V

Contact Resistance:

30mΩ max. initial

Dielectric Withstanding Voltage:

500V AC

Insulation Resistance:

1000MΩ min

Physical

Housing:

Thermoplastic, UL 94V-0 rated, in Brown Color

Hook:

Stainless Steel

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-55℃ to +85℃

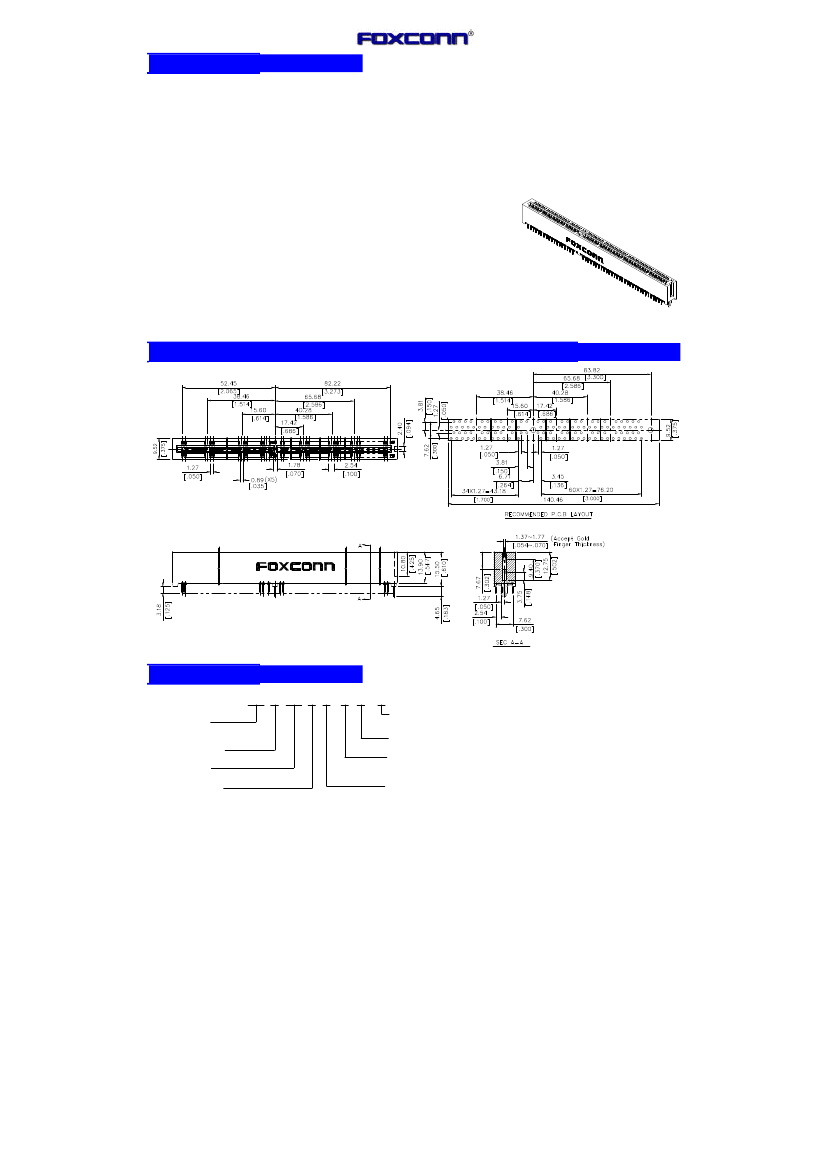

DRAWING

ORDERING

I N F O R M ATION

Body Type

N=W/O Marking On Housing

None=Print

PRODUCT NO.: E I 0 9 4 0 * - * C - *

Series Prefix

1.27 [.050] Pitch

Edge Card Conn.

Body Type

C=Metal Hold Down

Termination Type

0=STRAIGHT TYPE

Extension Code

P=40u Pd/Ni Plating

R=20u Pd/Ni Plating

G=Gold Plating

No.of Pos.

94=188 Pos.

Tail Length Type

0=3.18 [.125]

Contact Area Plating

1=Gold Flash

2=20u" Gold

3=30u" Gold

6=10u" Gold

7=15u" Gold

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
