QT8H0506-1101: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Solder Terminal, Locking Mech, Ivory Insulator, Receptacle; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

QT8H0506-1101 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Solder Terminal, Locking Mech, Ivory Insulator, Receptacle

QT8H0506-1101 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TRAY PACKAGING
Board mount options	HOLE .073-.085
body width	0.563 inch
subject depth	0.445 inch
body length	1.378 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	TIN LEAD (100)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	85 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.8896 N
Insulation resistance	100000000 Ω
Insulator color	IVORY
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	QT8H
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.0922 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	0.8 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N
Base Number Matches	1

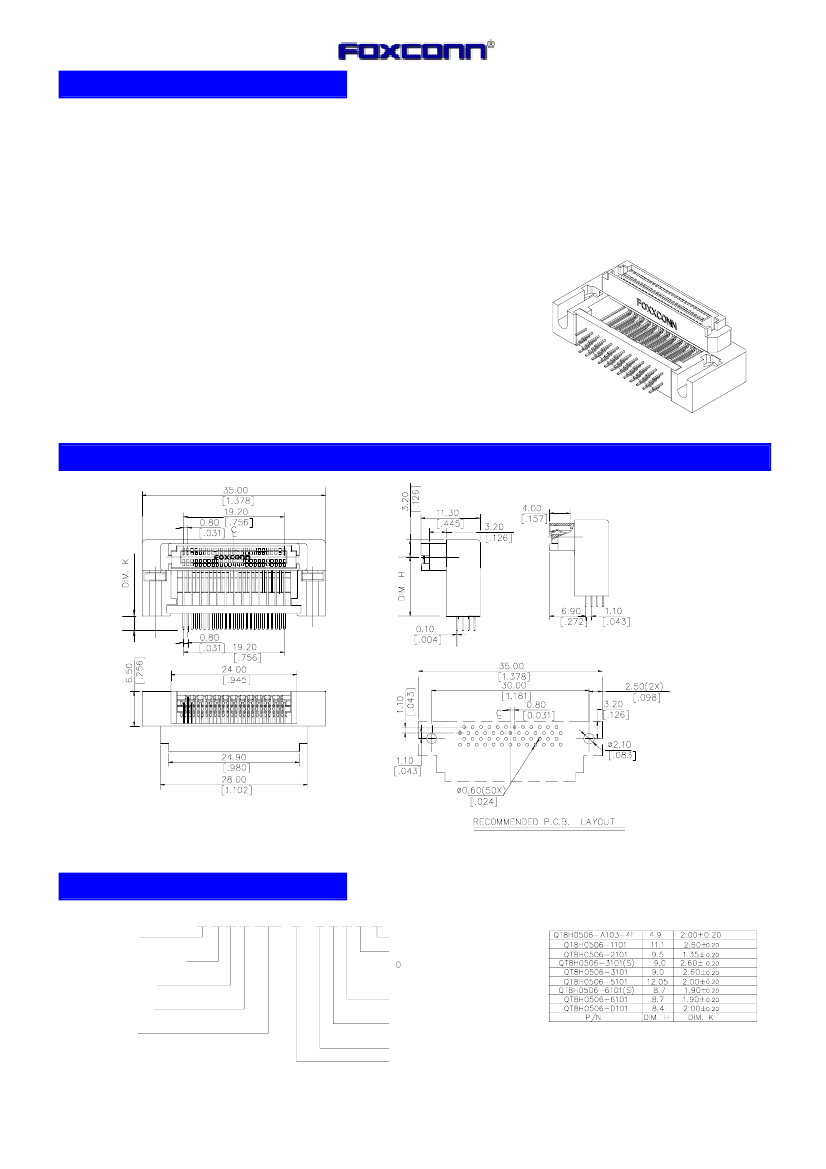

QT8H0506-1101 Preview

Download Datasheet

View All

SPECIFICATIONS

Mechanical

Mating Force:

90gf max. per Contact

Unmating Force:

10gf min. per Contact

Durability:

100 Cycles

Board to Board Connector

QT8H series

0.80mm [.031”] Pitch

Right Angle, Receptacle

for Slim type ODD application

Mated w ith QT8G series

Electrical

Current Rating:

0.5A DC

Contact Resistance:

75m

Ω

max.(initial) , 85m

Ω

max.(after)

Dielectrical Withstanding Voltage:

300V

Insulation Resistance:

500M

Ω

min.(initial) , 100 M

Ω

min.(after)

Physical

Housing:

LCP, UL 94V-0 in Ivory White Color

Contact:

Phosphor Bronze

Plating:

50u” min. Nickel Base Plating

10u” min. Gold Plating on Contact Area

100u” min Tin/Lead on Solder Tail Area

Metal Ear:

Brass

Operating Temperature:

-55

℃

to +85

℃

DRAWING

ORDERING I NF OR MATI ON

PRODUCT NO.: Q T 8 H * * * 6 - * 1 0 * (*)

Fine Pitch

Board To Board Conn.

8=0.8[.031"] pitch

H=Rec. R/A Type

NO. of Pos.

050=50Pin

R=Reverse Type

Lock Type

=W/ Board-Lock

1=W/ Screw

2=W/ B/L&Screw

Package

0=Tray

Contact Solder Type

1=Through Hole Type

Profile Height:

Contact Area Plating:

6=10u" Gold Min.

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
