HM16020-ASS7-4F datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM16020-ASS7-4F

HM16020-ASS7-4F: DescriptionRectangular Power Connector, 4 Contact(s), Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size183KB，2 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

HM16020-ASS7-4F Overview

Rectangular Power Connector, 4 Contact(s), Male, Solder Terminal, ROHS COMPLIANT

HM16020-ASS7-4F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	MATTE TIN (100)
Contact completed and terminated	MATTE TIN (100)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM16
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

HM16020-ASS7-4F Preview

Download Datasheet

View All

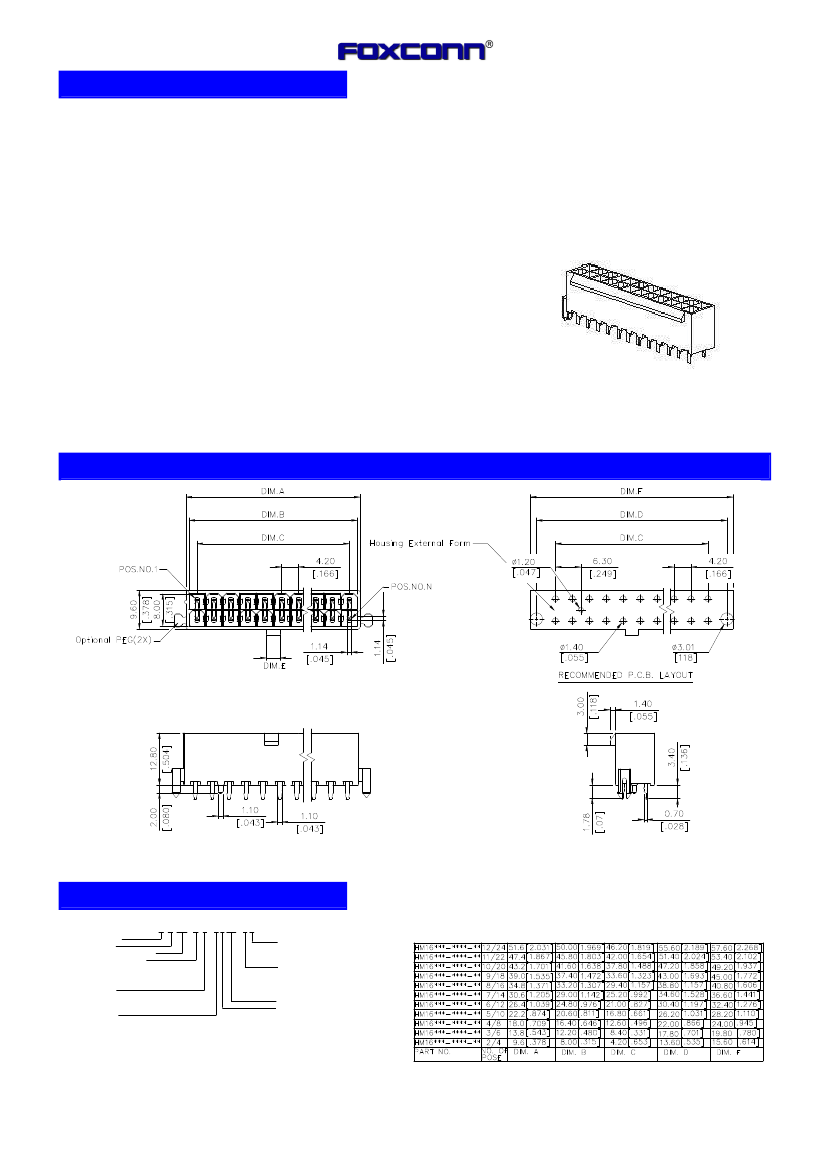

SPECIFICATIONS

Power Connector

HM16 Seri es

Vertical, T/H Type

4.2mm [.165"] Pitch

Mechanical

Contact Retention Force:

0.91 Kgf min

Durability:

500 Cycles

Electrical

Voltage Rating:

250V

Current Rating:

5.0A per contact min.

Dielectric Withstanding Voltage:

1500V AC

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

Thermoplastic, UL 94V-0 Rated in Ivory Color

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-45

℃

to +105

℃

DRAWING

ORDERING I NF OR MATI ON

PRODUCT NO.:

Header Series

Power Type

Termination & Contact Type

No. Of Single Row Pos

02=4 Pos

03=6 Pos

12=24 Pos

HM16***-****-**

Rohs Code

F:RoHs Product

H:RoHs & Halogen Free

Package Type

0=None

1=Hard Tray

2=Hard Tray Pi Film

3=Hard Tray Cap

4=Soft Tray

Peg&Pin Option See Figure Below

Modification Code

S: Standard Product, Dim.E=3.40

E: Width Latch, Dim.E=Dim.C

K: Width Latch, Dim.E=7.60

F: Dim.E=24.30;Housing Covered Whith Cap

D: Dim.E=24.30;Housing Covered Whithout Cap

M: Chamfer Type II

N: Chamfer Type III

Plating Code

0 = 100u" Min. Matte Tin

1= Gold Flash Plating

7=15u" Gold Plating

Housing Color

A:Nature

B:Black

C:Light Blue

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
