HD57040-A1C0-EF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HD57040-A1C0-EF

HD57040-A1C0-EF: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size181KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

HD57040-A1C0-EF Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug, ROHS COMPLIANT

HD57040-A1C0-EF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HD57
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

HD57040-A1C0-EF Preview

Download Datasheet

View All

SPECIFICATIONS

Header Connector

HD57 Series

Header, T/H Type

Plug

2.00mm [.079’’] Pitch

Mechanical

Contact Retention Force

1.36Kgf min. Per Pin

Electrical

Voltage Rating:

250V

Current Rating:

3.0A max. per pin

Dielectric Withstanding Voltage:

750V AC

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

LCP, UL 94V-0

Contact:

BRASS

Plating:

See “ ODERING INFORMATION”

Operating Temperature:

-40

℃

to +105

℃

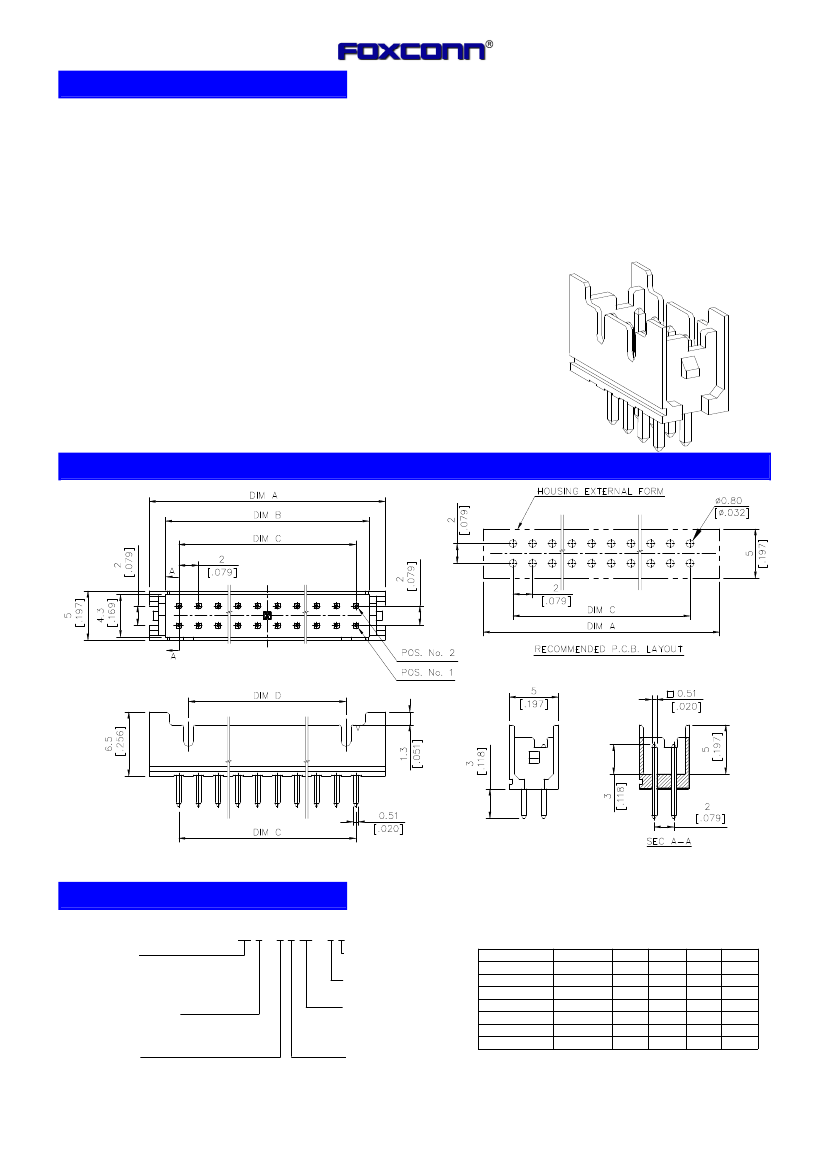

DRAWING

ORDERING I NF OR MATI ON

PRODUCT No:HD 57 ** * - * * ** - * *

NO. Of Pos.

02=02 POS.

20=40 POS.

Contact Area Plating

0 = TIN PLATING

Houing Color

A: NATURE

B: BLACK

RoHS Code

F = RoHS PRODUCT

Package Type

E = BAG

PIN Removed

C0: FULL PIN

C1: 1st REMOVED

C2: 2nd REMOVED

Post Type

1: WITH PLASTIC POST

2: WITHOUT POST

HD5710*-****-**

HD5709*-****-**

HD5708*-****-**

HD5707*-****-**

HD5706*-****-**

HD5705*-****-**

HD5704*-****-**

PART NO.

10/20

24.00

9/18

22.00

8/16

20.00

7/14

18.00

6/12

16.00

5/10

14.00

4/8

12.00

NO. OF POS. DIM. A

20.70

18.00 16.00

18.70

16.00 14.00

16.70

14.00 12.00

14.70

12.00 10.00

12.70

10.00

8.00

10.70

8.00

6.00

8.70

6.00

4.00

DIM. B DIM. C DIM. D

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
