EE09012-QM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> EE09012-QM

EE09012-QM: DescriptionCard Edge Connector, 180 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Brown Insulator, Receptacle; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

EE09012-QM Overview

Card Edge Connector, 180 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Brown Insulator, Receptacle

EE09012-QM Parametric

Parameter Name	Attribute value
Maker	FOXCONN
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
Board mount options	SPLIT BOARD LOCK
body width	0.374 inch
subject depth	0.61 inch
body length	4.325 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON PD-NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	400VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.4448 N
Insulation resistance	800000000 Ω
Insulator color	BROWN
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	EE
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Plating thickness	20u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	180
UL Flammability Code	94V-0
Evacuation force-minimum value	.0556 N

EE09012-QM Preview

Download Datasheet

View All

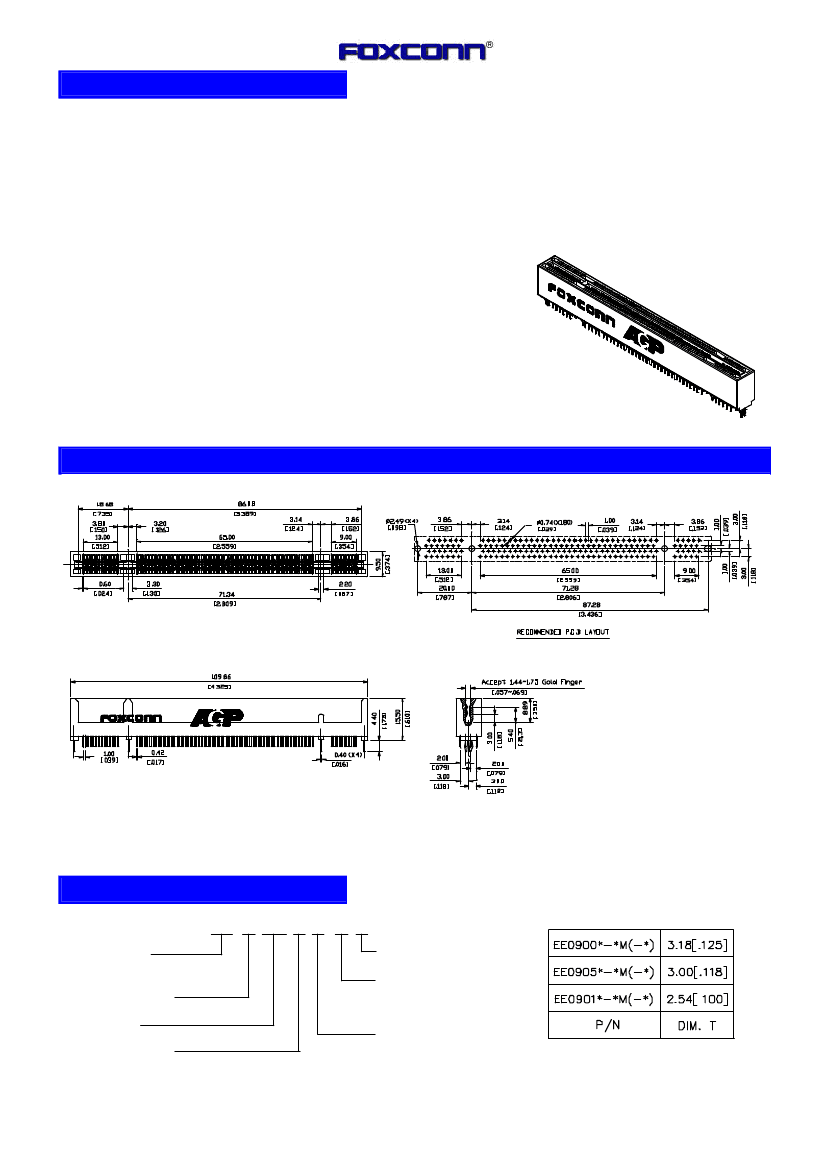

SPECIFICATIONS

AGP

EE Series

Vertical Type W/O Retainer,Metal H/D

1.00mm [.039”] Pitch

180 Pos.

Mechanical

Contact Retention Force:

0.30kgf min

Mating force:

93.56gf max. per contact pair

Unmating force:

9.92~56.13gf per contact pair

Durability:

50 Cycles

Electrical

Current Rating:

1A max.

Contact Resistance:

10mΩ max. initial

Dielectric Withstanding Voltage:

400VAC

Insulation Resistance:

800MΩ min.

Physical

Housing:

Thermoplastic, UL 94V-0 rated, in Brown Color

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

0℃ to +85℃

DRAWING

ORDERING I N F O R M A T I O N

PRODUCT NO.: EE 0 90 1 * - * M

Series Prefix

1.00[.039] Pitch Edge

Card Conn

Material Type

M=M.H.D Type

Contact Area Plating

G=Gold Plating

Q=30u" Pd/Ni Plating

T=15u" Pd/Ni Plaring

Termination Type

0=Straight

No.of Pos.

90=180 Pos.

Gold Plating

1=Gold Flash

2=20u" Gold

3=30u" Gold

6=10u" Gold

7=15u" Gold

Tail Length Type

1=2.54[.010]

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
