LD1807H-S52A1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LD1807H-S52A1A

LD1807H-S52A1A: DescriptionTelecom and Datacom Connector, 7 Contact(s), Male, Straight, Solder Terminal, Locking, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

LD1807H-S52A1A Overview

Telecom and Datacom Connector, 7 Contact(s), Male, Straight, Solder Terminal, Locking, Plug, ROHS COMPLIANT

LD1807H-S52A1A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOXCONN
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.254 inch
subject depth	0.331 inch
body length	0.665 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	MIXED
PCB contact row spacing	.9906 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Terminal length	0.096 inch
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0

LD1807H-S52A1A Preview

Download Datasheet

View All

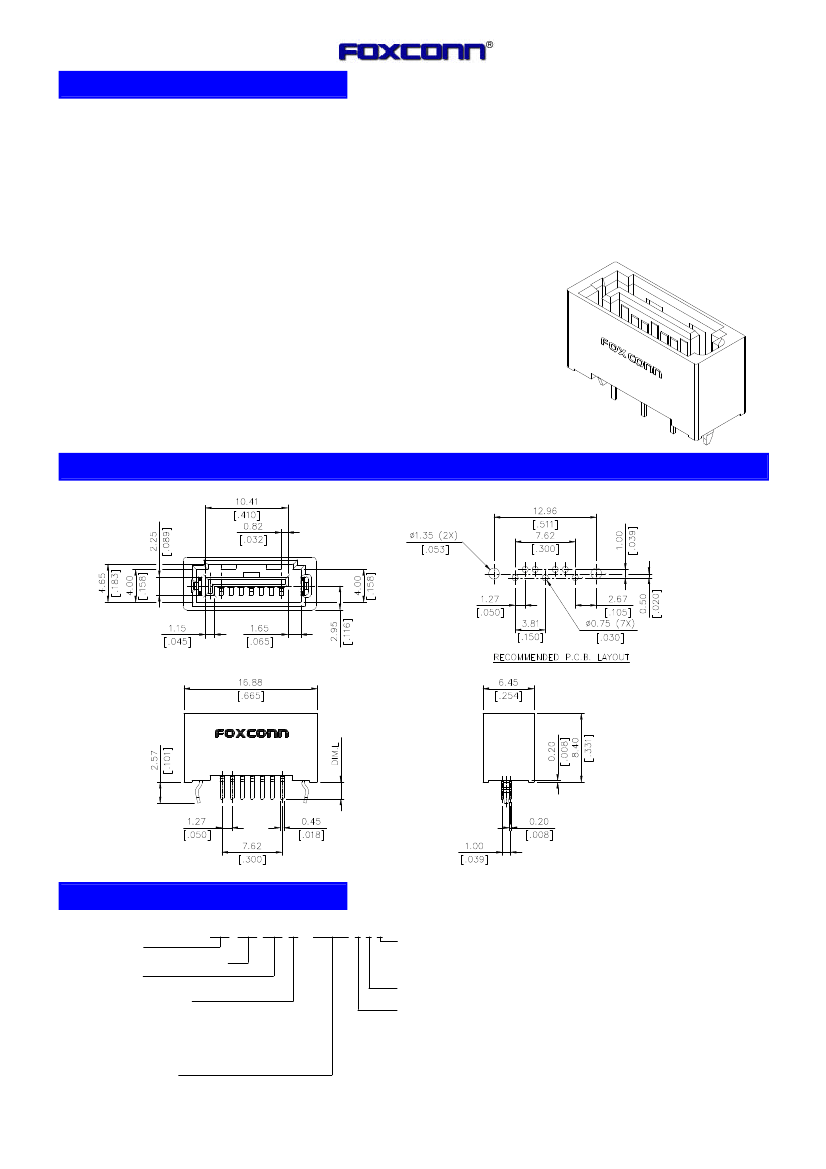

SPECIFICATIONS

Serial ATA Connector

LD Series

Vertical, T/H Type

Shrouded Plug

1.27mm [.050"] Pitch

7 Pos.

Mechanical

Insertion Force:

45N max.

Withdrawal Force:

10N min.

Durability:

500 Cycles.

Electrical

Voltage Rating:

250V.

Current Rating:

1.5A per pin min.

Contact Resistance:

30mΩ max.

Dielectric Withstanding Voltage:

500V AC.

Insulation Resistance:

1000MΩ min.

Physical

Housing:

Thermoplastic, UL 94V-0 rated in Black Color

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Board Lock:

Copper alloy

Operating Temperature:

-55℃ to +85℃

DRAWING

ORDERING INFORMATION

PRODUCT NO.: LD 1 8 0 7 * - S 5 2 * * *

Serial ATA

Termination & Contact Type

No. of Pos

07=7 Pos

Tail Length

None/A :DIM.L=2.45mm

B :DIM.L=2.85mm

C :DIM.L=3.25mm

D :DIM.L=2.05mm

Packing Type

1/None = Tray

Contact Area Plating

Housing Material

L/None =Color Black LCP

P=Color Balck PBT

B=Color Blue PBT

F=Color Pink PBT

W=Color White PBT

J=Color Orange PBT

T=Color Black PA9T

U=Color Blue PA9T

A=Color Black PA66

F: Gold Flash With RoHS Compliance

H: Gold Plating 30u" With RoHS Compliance

V: Gold Plating 15u" With RoHS Compliance

Modification Code

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
