D600GD40C100QF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> D600GD40C100QF

D600GD40C100QF: DescriptionElectric Fuse, 100A, 3600VAC, 4000VDC, 30000A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size63KB，2 Pages; ManufacturerMersen; Websitehttps://www.mersen.com/; With over 135 years of experience, more than 50 industrial sites and 18 R&D centers in 35 countries, Mersen Electrical Power is a global expert in power and advanced materials for high-tech industries. They offer a broad portfolio of electrical protection and control products and provide solutions for power management applications. The Mersen team works with customers around the world to design and deliver custom solutions and essential products for the commercial, industrial, renewable energy, power electronics and electric vehicle markets. Mersen's mission is to make its customers' applications safer and more reliable.

Download Datasheet Parametric View All

D600GD40C100QF Overview

Electric Fuse, 100A, 3600VAC, 4000VDC, 30000A (IR), Inline/holder,

D600GD40C100QF Parametric

Parameter Name	Attribute value
Maker	Mersen
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 4000 VDC: 30000 A
body width	48 mm
body height	47.5 mm
Body length or diameter	365 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
method of packing	BULK
physical size	365mm x 48mm x 47.5mm
Rated breaking capacity	30000 A
Rated current	100 A
Rated voltage (AC)	3600 V
Rated voltage (DC)	4000 V
surface mount	NO
Terminal shape	TAB/BLADE

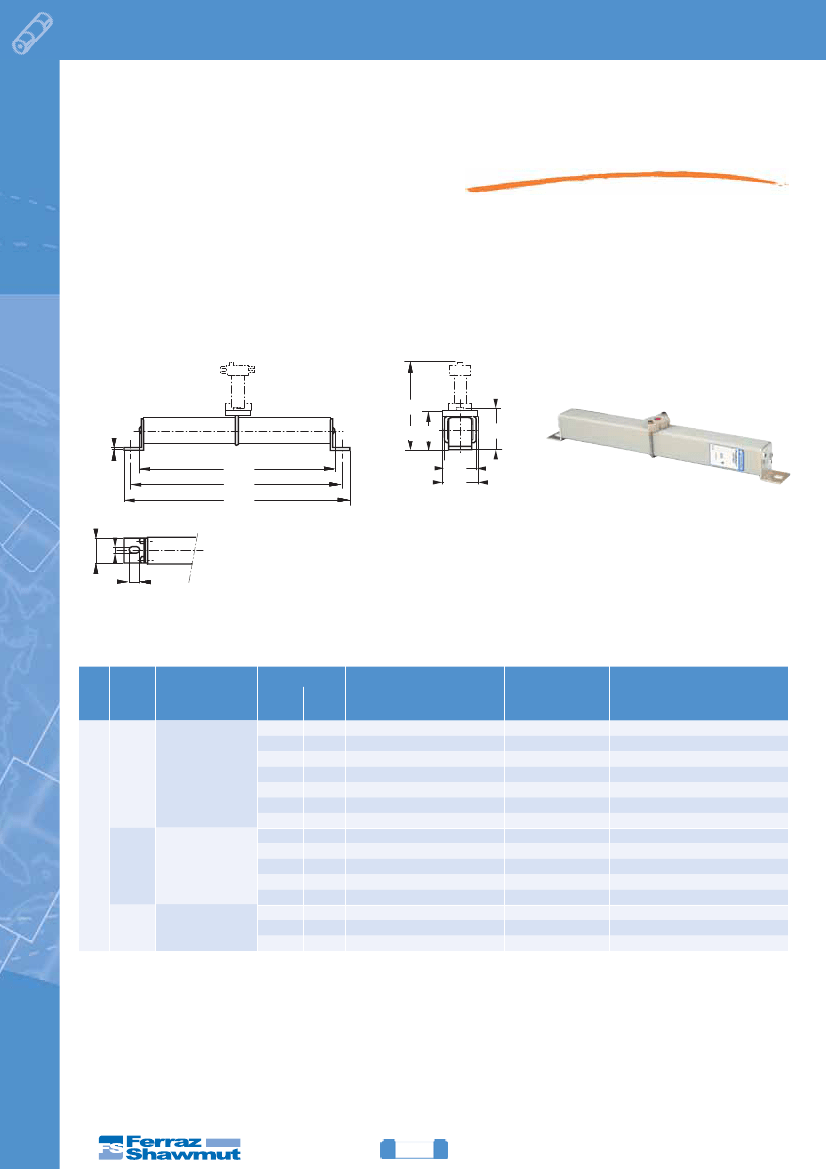

D600GD40C100QF Preview

Download Datasheet

View All

Protistor DC

Protistor DC fuses

fuses

DC Square-body Fuses

Sizes 600 - 602 - 2x602

gR Brackets size 600 - 3500 to 4000 V DC

gRB-gRD from 6 to 125 A

Dimensions

129

47.5

365

394

416

38 9

Weight: 1920 g

Main Characteristics

Size Current

rating

IN( A )

Breaking

Capacity

Watts loss

0.8 IN

(W)

Designation

Ref.

Number

Catalog Number

600

100

125

@ 3500 V DC

30 kA

L/R = 30 ms

@ 4000 V DC

30 kA

L/R = 30 ms

@ 4000 V DC

30 kA

L/R = 15 ms

5.3

10.2

13.1

25.5

50.5

9.5

12.7

18.5

25.4

32.5

76.5

110

CC 35 gRB 600 QF 0006

CC 35 gRB 600 QF 0008

CC 35 gRB 600 QF 0010

CC 35 gRB 600 QF 0012

CC 35 gRB 600 QF 0016

CC 35 gRB 600 QF 0020

CC 35 gRB 600 QF 0025

CC 40 gRB 600 QF 0032

CC 40 gRB 600 QF 0040

CC 40 gRB 600 QF 0050

CC 40 gRB 600 QF 0063

CC 40 gRB 600 QF 0080

CC 40 gRD 600 QF 0080

CC 40 gRD 600 QF 0100

CC 40 gRD 600 QF 0125

S083736

R083735

N089390

V082220

P089391

Q089392

R089393

A086963

B086964

C086965

D086966

E086967

B075763

C075764

D075765

D600GB35C6QF

D600GB35C8QF

D600GB35C10QF

D600GB35C12QF

D600GB35C16QF

D600GB35C20QF

D600GB35C25QF

D600GB40C32QF

D600GB40C40QF

D600GB40C50QF

D600GB40C63QF

D600GB40C80QF

D600GD40C80QF

D600GD40C100QF

D600GD40C125QF

Pack:

1 piece

Microswitch MC 2R 3E 1-5NBS Ref. Number: J310025

SCDC

12/04
