HM5203E-BG2ZF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM5203E-BG2ZF

HM5203E-BG2ZF: DescriptionRectangular Power Connector, 6 Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size201KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

HM5203E-BG2ZF Overview

Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT

HM5203E-BG2ZF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOXCONN
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM52
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

HM5203E-BG2ZF Preview

Download Datasheet

View All

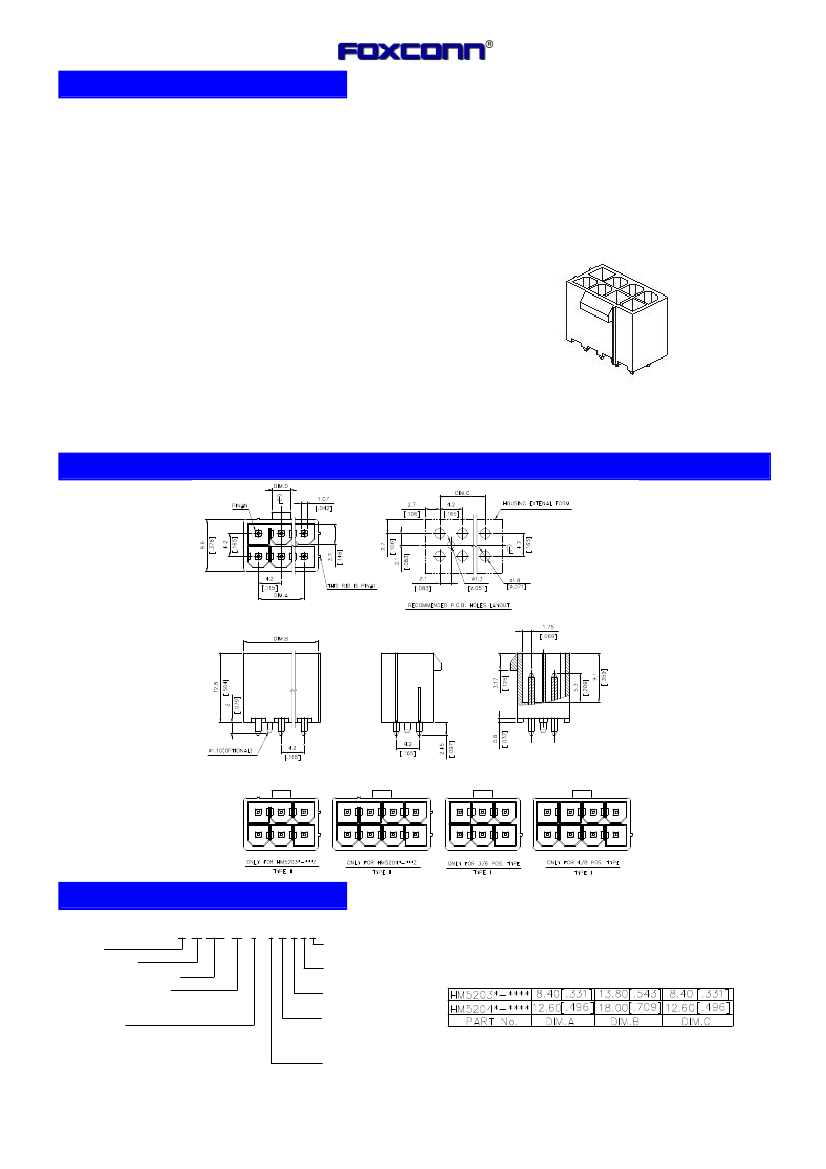

SPECIFICATIONS

Header Connector

HM52 Seri es

Vertical, T/H Type

Plug

4.2mm [.165’’] Pitch

Mechanical

Contact Retention Force:

1.36Kgf min.

Electrical

Voltage Rating:

250V

Current Rating:

6.0A per pin

Dielectric Withstanding Voltage:

1500V AC

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

Thermoplastic, UL 94V-0 rating in nature color

Contact:

Copper Alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-40

℃

to +105

℃

DRAWING

ORDERING I NF OR MATI ON

PRODUCT No. : H M 5 2 ** * - * ** * * *

Header

Power Header

Termination&Contact Type

No. Of Single Row Pos.

03 = 3/6 POS.

04 = 4/8 POS.

Rohs Code

F:RoHS Product

H:RoHS&Halogen Free

Material Optional

None:Nylon 9T

L:LCP

Type Optional

None:Type I

Z:Type II

None:Without Post,

Tail Length=2.45mm

G1:One Post,

Tail Length=2.45mm

G2:One Post,

Tail Length=3.20mm

Plating Code

E=Tin Plating over all

with RoHS compliance

F=Gold Flash Plating over all

with RoHS compliance

Modification Code

Latch Length

None:Latch Length=3.40mm

B:Latch Length=7.60mm

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
