HD45-03V-P1

Description
Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT
CategoryThe connector    The connector
File Size54KB,1 Pages
ManufacturerFOXCONN
Websitehttp://www.fit-foxconn.com/
Environmental Compliance
Download Datasheet Parametric View All

HD45-03V-P1 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

HD45-03V-P1 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerFOXCONN
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (15)
Contact completed and terminatedGOLD (15)
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.5 mm
Termination typeSOLDER
Total number of contacts3
UL Flammability Code94V-0

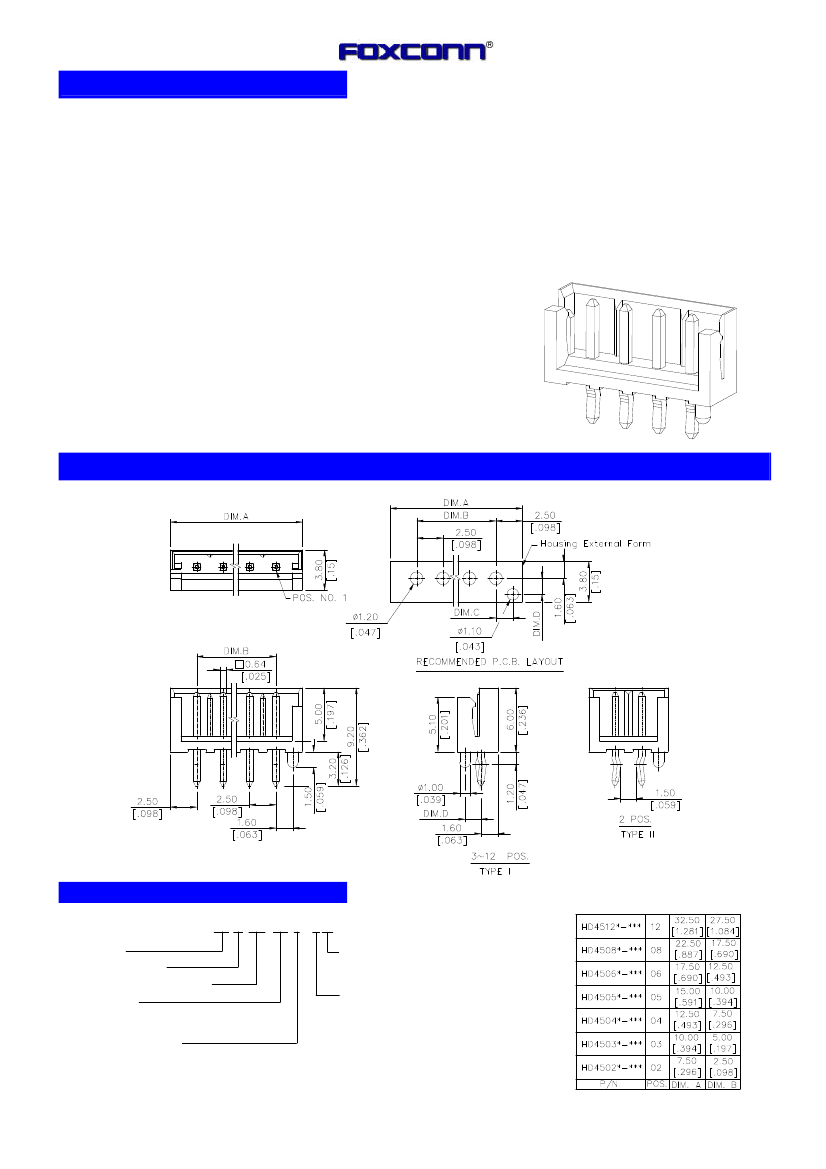

HD45-03V-P1 Preview

Download Datasheet
SPECIFICATIONS
Header Connector
HD45 Series
R/A, T/H Type
2.50mm [.098] Pitch
Mechanical
Contact Retention Force:
0.91 kg min.
Electrical
Current Rating:
1A Per Pin Min.
Dielectric Withstanding Voltage:
500 RMS
Insulation Resistance:
1000MΩ min.
Physical
Housing:
High Temperature, UL 94V-0 Rated In Black Color
Contact:
Copper Alloy
Plating:
See “ORDERING INFORMATION”
Operating Temperature:
-40℃ to +105℃
DRAWING
ORDERING I N F O R M ATION
PRODUCT NO.:
Header
Polarizing Wall
Termination&Contact Type
No. Of Pos
02 = 02 Pos
....
12 = 12 Pos
HD45***-**
Option For Guide Post
None: Standard Product
P1 : One Guide Post ( DIM. C=1.60, DIM. D=1.50)
P1 : One Guide Post ( DIM. C=1.95, DIM. D=1.60)
Option For Kink
None: Standard Product
K : With Kink
2 Pos. 1st & 2nd Pins Of Terminals Are
Kinked (See Type II)
3 ~ 12 Pos. 1st ,N-1& N Pins Of
Terminals Are Kinked (See Type I)
Contact Area Plating
0 = Tin / Lead
F = Gold Flish With Lead Free RoHS COMPLIANCE
V = 15u" Min Gold With Lead Free RoHS COMPLIANCE
E = Tin Plated With Lead Free RoHS COMPLIANCE
H = 30 u" Min Gold With Lead Free RoHS COMPLIANCE
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
