AT2400H-D3: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle; CategoryThe connector The connector; File Size306KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

AT2400H-D3 Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle

AT2400H-D3 Parametric

Parameter Name	Attribute value
Maker	FOXCONN
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LATCHED
Board mount options	SPLIT BOARD LOCK
subject depth	0.933 inch
body length	5.549 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	AT240
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	0.075 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.124 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	240
UL Flammability Code	94V-0

AT2400H-D3 Preview

Download Datasheet

View All

SPECIFICATIONS

DDR II Connector

AT240 Series

Vertical Type, T/H Type

1.00mm [.039”] Pitch

240 Pos.

Mechanical

Contact Retention Force:

0.75Lbs (0.34kgf) min. per Contact

Durability:

25 Cycles

Dram Board Insertion Force:

3 oz max. per Contact

Electrical

Voltage Raging:

250V AC

Current Rating:

1.0A max., 30

℃

max., in Temperature Rise

Insulation Resistance:

1000M

Ω

min. initial

Dielectric Withstanding Voltage:

500V AC at Sea Level

Low Level Contact Resistance:

30m

Ω

max. initial

Physical

Housing:

Thermoplastic, UL 94V-0 rated in Black Color

Contact:

Copper alloy

Ejector:

Thermoplastic, UL 94V-0 rated in Ivory or Natural Color

Metal Hold Down:

Copper alloy

Operating Temperature:

-55

℃

to +105

℃

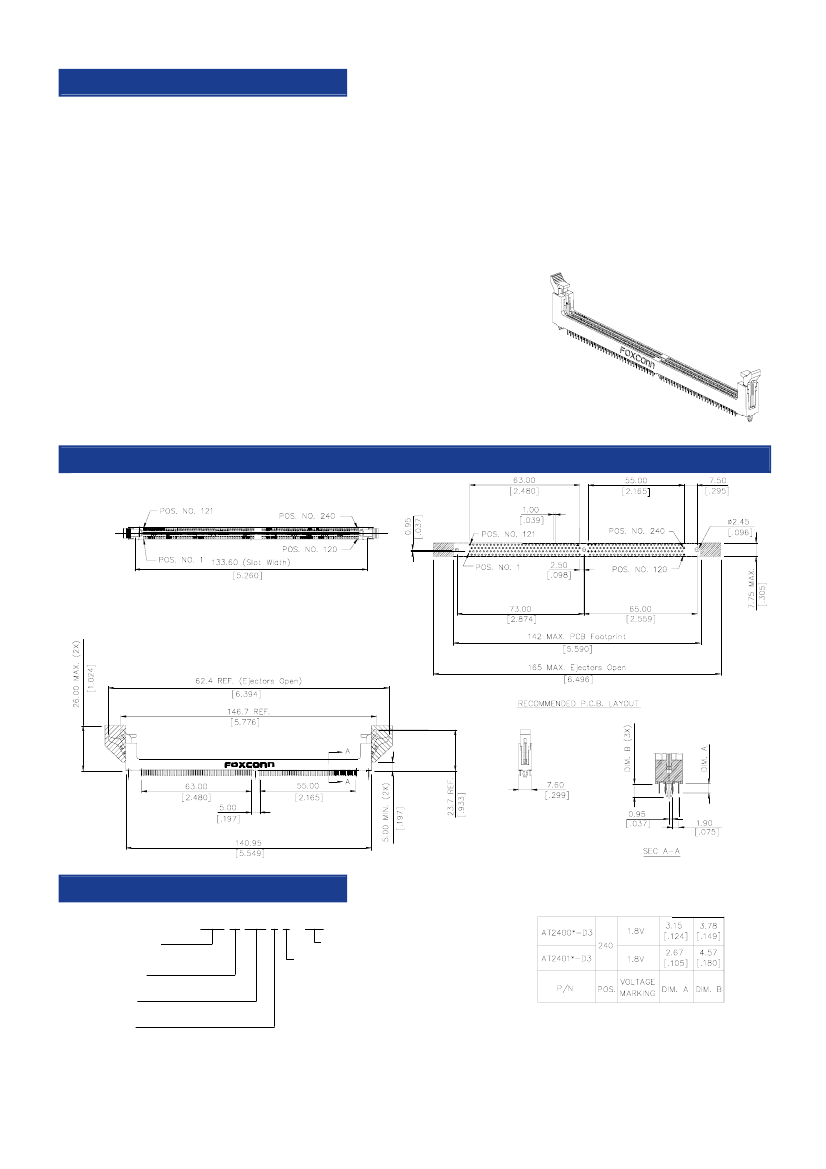

DRAWING

ORDERING

Memory Socket

Vertrical

DDR II DIMM

1.00mm Pitch

40=240 Pos.

I N FO R M ATI O N

Extension Code

Contact Area Plating

1=Gold Flash

2=20u" Gold

3=30u" Gold

6=10u" Gold

7=15u" Gold

F=Gold Flash (Lead Free)

J=10u" Gold (Lead Free)

V=15u" Gold (Lead Free)

X=20u" Gold (Lead Free)

H=30u" Gold (Lead Free)

PRODUCT NO.: A T 2 4 0 * * - D3

No. of Pos.

Tail Length

0=3.15 [.124]

1=2.67 [.105]

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
