QH11121-DBGG-4F datasheet, PDF

Datasheet> All Categories > The connector> The connector> QH11121-DBGG-4F

QH11121-DBGG-4F: DescriptionTelecom and Datacom Connector, 24 Contact(s), Female, Right Angle, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

QH11121-DBGG-4F Overview

Telecom and Datacom Connector, 24 Contact(s), Female, Right Angle, Solder Terminal, LEAD FREE

QH11121-DBGG-4F Parametric

Parameter Name	Attribute value
Maker	FOXCONN
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	QH
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0

QH11121-DBGG-4F Preview

Download Datasheet

View All

SPECIFICATIONS

DVI Connector

DVI Series

Right Angle Type, T/H

1.905 mm [.075"] Pitch

24 Pos. (Female) +

15 Pos VGA

Mechanical

Mating Force:

4.50kg (9.92Lb) max. (DVI)

0.34kg (0.75Lb) max. (DSUB)

Unmating Force:

1.00~4.00kg (2.20~8.82Lb) min. (DVI)

0.021kg (0.05 Lb) min. (DSUB)

Electrical

Current Rating:

1.50A (DVI); 2.00A (DSUB)

Contact Resistance:

30mΩ (DVI); 15mΩ (DSUB)

Dielectric Withstanding Voltage:

500V AC/1min min. (DVI)

1000V AC/1min min. (DSUB)

Physical

Housing:

Thermoplastic, UL 94V-0 rated

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-20℃ to +85℃

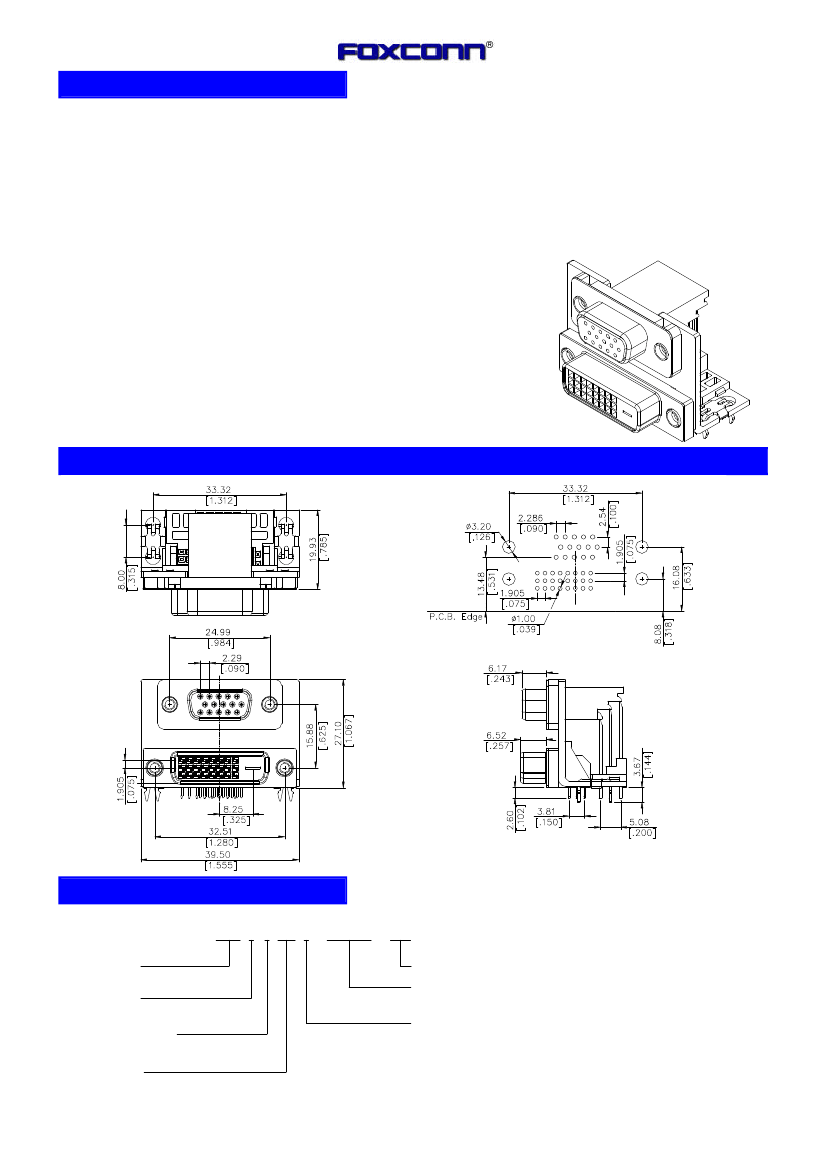

DRAWING

ORDERING

INFORMATION

PRODUCT NO.: QH 1 1 12 1 - DBGG - 4F

DVI Series

Body Type

1=Right Angle

Lead Free Code

Extension Code

Contact Area Plating

1=Gold Flash

Termination Type

1=Female

No. of Pos.

12=24 Pos.

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
