CA3126P2300 datasheet, PDF - EEWORLD Datasheet

CA3126P2300: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Red Insulator, Receptacle,; CategoryThe connector The connector; File Size199KB，2 Pages; ManufacturerCvilux; Websitehttps://www.cvilux.com/; Environmental Compliance; Founded in 1990, CviLux specializes in the production and sale of connectors, FFCs, and wire harnesses. CviLux products are used in consumer electronics, computer and network, communications, industrial, automotive, and optical industries. CviLux is a listed company on the Taiwan Stock Exchange (code 8103). CviLux has ISO9001, ISO14001, IATF16949, and QC080000 certifications, as well as Apple MFi and USB certifications. They continue to develop new products for the ever-changing market. They have seven factories and global sales offices to support users' interconnect needs.

Download Datasheet Parametric View All

CA3126P2300 Overview

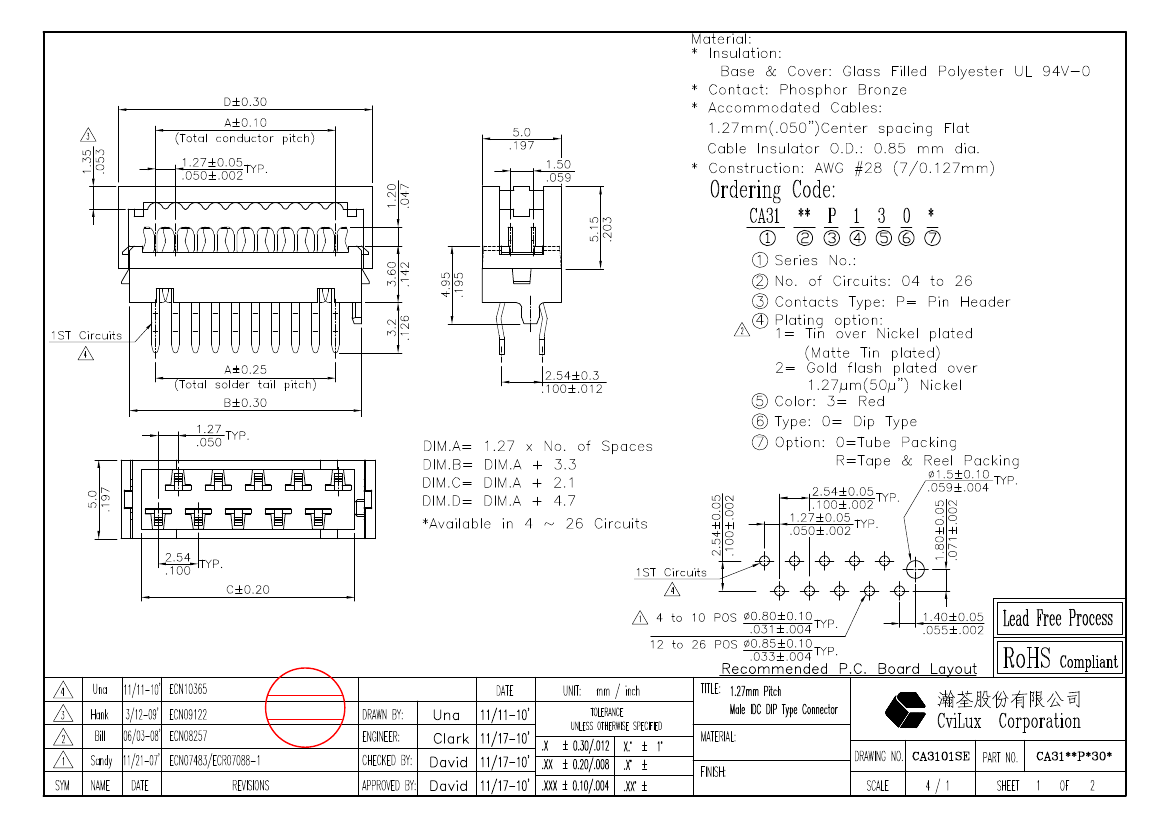

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Red Insulator, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Cvilux
Reach Compliance Code	compliant
body width	0.197 inch
body length	1.285 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	IDC
Dielectric withstand voltage	500VAC V
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	CA31
Plug contact pitch	0.1 inch
Match contact row spacing	0.059 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	26
Evacuation force-minimum value	.973 N

CviLux

CVILUX CORP

2010.12.07

ISSUED
