DV11206-B2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DV11206-B2

DV11206-B2: DescriptionD Subminiature Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking Mech, Plug,; CategoryThe connector The connector; File Size191KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

DV11206-B2 Overview

D Subminiature Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking Mech, Plug,

DV11206-B2 Parametric

Parameter Name	Attribute value
Maker	FOXCONN
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH DENSITY
body width	0.494 inch
body length	1.213 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.058 N
Insulation resistance	5000000000 Ω
Insulator color	BLUE
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	DV
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Housing size	1/E
Terminal length	0.105 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Evacuation force-minimum value	.2224 N

DV11206-B2 Preview

Download Datasheet

View All

SPECIFICATIONS

D-SUB Connector

DV Series

Right Angle, T/H Type

2.29mm [.090”] Pitch

15 Pos.

Mechanical

Contact Retention Force:

1.82kg (4.00Lb) min.

Contact Engagement Force:

0.34kg (0.75Lb) max.

Contact Separation Force:

0.021kg (0.05Lb) min.

Durability:

500 Cycles

Electrical

Current Rating:

Contact Resistance:15m

Ω

max.

Dielectric Withstanding Voltage:

1000V AC/1min min.

Insulation Resistance:

5000M

Ω

min.

Physical

Housing:

Thermoplastic, UL 94V-0 rated in Blue 285C Color

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-20

℃

to +85

℃

Recommended Thickness of PCB:

1.57[.062]

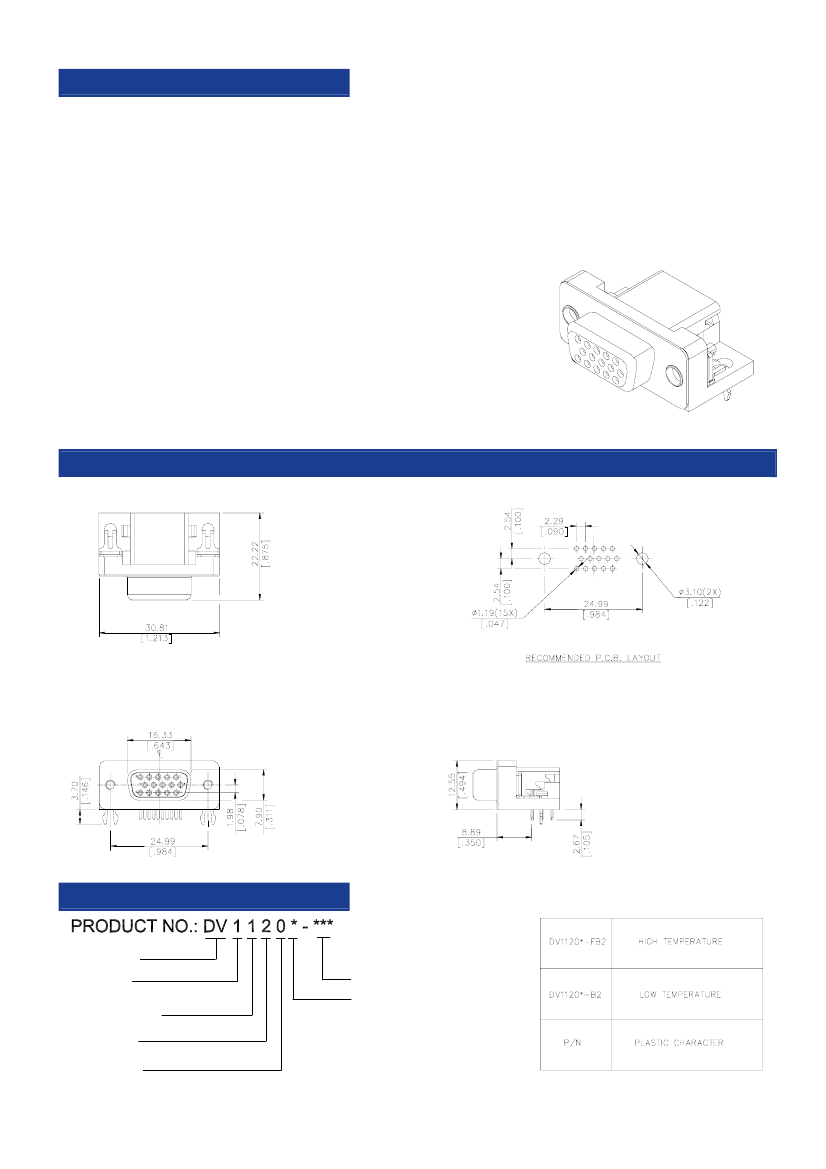

DRAWING

ORDERING

I N FO R M ATI O N

VGA Series

Body Type

1=Right Angle PCB Mount

Extension Code

Contact Area Plating

1=Gold Flash

2=20u" Gold

3=30u" Gold

6=10u" Gold

7=15u" Gold

F=Gold Flash(Lead Free)

Termnation Type

1=Female

NO. of Pos.

2=H/D 15 Pos.

Body Length

0=8.89

137

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
