A430C25-15: DescriptionElectric Fuse, 25A, 4300VAC, 65000A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size2MB，3 Pages; ManufacturerMersen; Websitehttps://www.mersen.com/; Environmental Compliance; With over 135 years of experience, more than 50 industrial sites and 18 R&D centers in 35 countries, Mersen Electrical Power is a global expert in power and advanced materials for high-tech industries. They offer a broad portfolio of electrical protection and control products and provide solutions for power management applications. The Mersen team works with customers around the world to design and deliver custom solutions and essential products for the commercial, industrial, renewable energy, power electronics and electric vehicle markets. Mersen's mission is to make its customers' applications safer and more reliable.

Download Datasheet Parametric View All

A430C25-15 Overview

Electric Fuse, 25A, 4300VAC, 65000A (IR), Inline/holder,

A430C25-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mersen
Reach Compliance Code	compliant
ECCN code	EAR99
body height	180.8 mm
Body length or diameter	50.8 mm
Built-in features	INDICATOR
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	6 J
Installation features	INLINE/HOLDER
physical size	50.8mm x 180.8mm
Rated breaking capacity	65000 A
Rated current	25 A
Rated voltage (AC)	4300 V
surface mount	NO
Terminal shape	TAB/BLADE

A430C25-15 Preview

Download Datasheet

View All

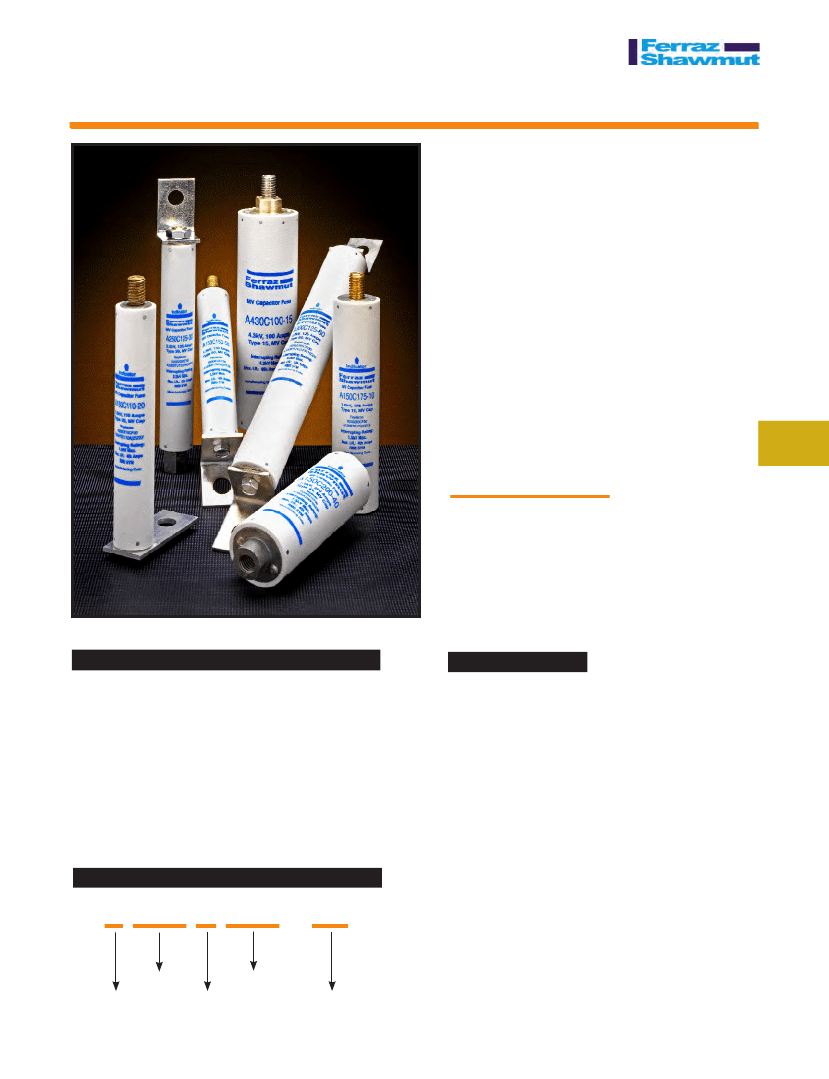

AMP-TRAP

MEDIUM VOLTAGE CAPACITOR FUSES/A100C-A550C

MEDIUM VOLTAGE CAPACITOR FUSES

Ferraz Shawmut capacitor fuses are designed to

ANSI C37-41. They are current limiting operating

without noise or discharge and are designed to be

used indoors in a general purpose enclosure or

outdoors in a weatherproof enclosure. These are

non-disconnecting fuses requiring the use of a

disconnect switch. These capacitor fuses provide

both short circuit and overload protection and are

intended to protect against capacitor case rupture

or dielectric failure within the capacitor.

The various mounting configurations offer manu-

facturers a wide range of cost and space saving

solutions and a large choice of equivalent products

to users.

APPLICATIOnS:

➤

Capacitor Protection

➤

Power Factor Correction Equipment

➤

Harmonic Filtering Equipment

➤

Induction Heating System

➤

High Power Drive

➤

Welders

Features/Benefits

➤

High interrupting capacity

➤

Current limitation

➤

Blown fuse indication

➤

Direct mount

➤

Clip style mount

➤

Bus mount

➤

non-venting for silent operation

Ratings

➤

A100C

AC:

25 to 125 Amps, 1000 V Maximum,

50 kA I.R. Sym.

➤

A150C

AC:

25 to 200 Amps, 1500 V Maximum,

40 kA I.R. Sym.

➤

A250C

AC:

25 to 200 Amps, 2500 V Maximum,

50 kA I.R. Sym.

➤

A300C

AC:

50 to 175 Amps, 3000 V Maximum,

50 kA I.R. Sym.

➤

A430C

AC:

6 to 100 Amps, 4300 V Maximum,

65 kA I.R. Sym.

➤

A550C

AC:

6 to 50 Amps, 5500 V Maximum,

65 kA I.R. Sym.

Catalog numbering System

A 250 C 125 - 30

Voltage Rating ÷ 10

(250 = 2.5kV)

Current Rating

Mounting Configuration

AC Voltage

Capacitor Fuse
