HM3103-AP0-DF: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size288KB，2 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

HM3103-AP0-DF Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug, ROHS COMPLIANT

HM3103-AP0-DF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOXCONN
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HM31
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	4.2 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

HM3103-AP0-DF Preview

Download Datasheet

View All

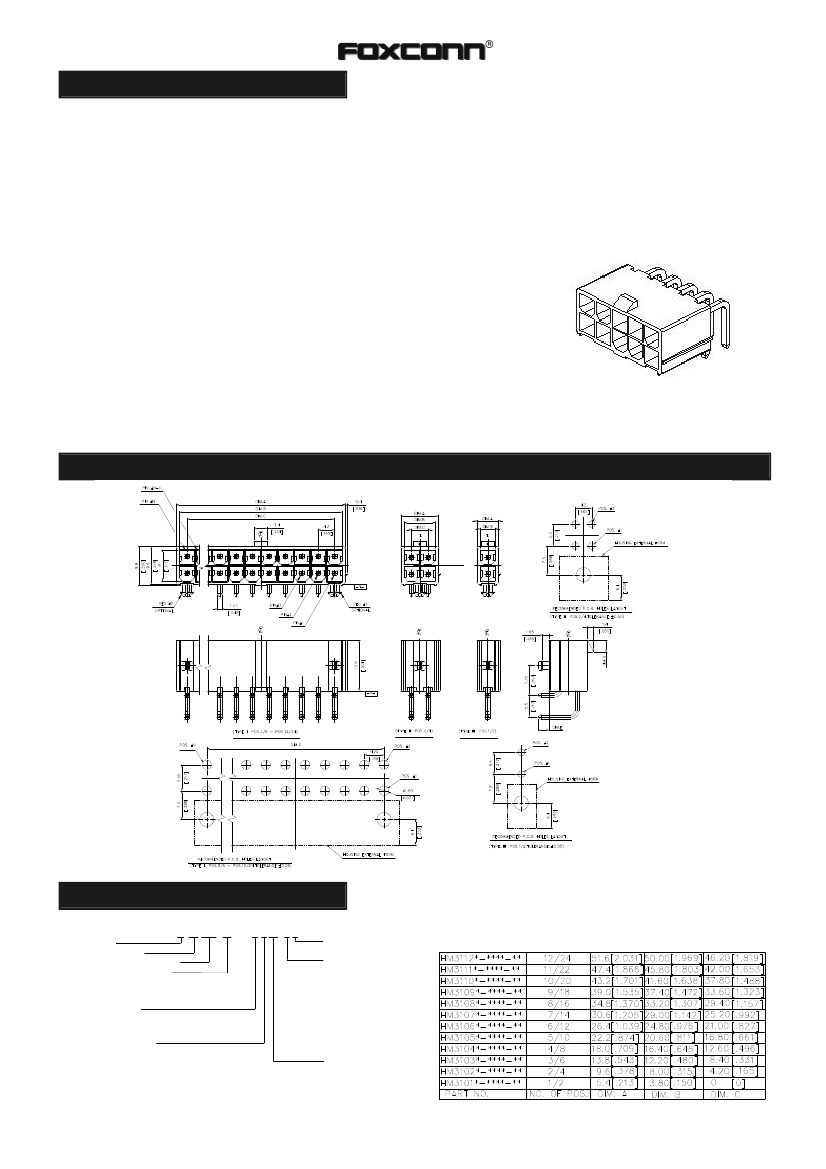

SPECIFICATIONS

Header Connector

HM31 Series

R/A, T/H Type

Plug

4.2mm [.165’’] Pitch

Mechanical

Contact Retention Force:

0.91Kgf min.

Electrical

Voltage Rating:

250V

Current Rating:

See Drawing No. 307-0300-1434

Dielectric Withstanding Voltage:

1500V AC

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

Thermoplastic, UL 94V-0 rating

Contact:

Brass

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-40

℃

to +105

℃

DRAWING

ORDERING

Header

Power Header

Termination&Contact Type

No. Of Single Row Pos.

01 = 1/2 POS.

02 . 2/4 POS.

12 = 12/24 POS.

I N FO R M ATIO N

RoHS Code

PRODUCT No. : H M 3 1 ** * - * * **- * *

F=RoHS Proudct

H=RoHS & Halonen Free

0=None

1=Hard Tray

2=Hard Tray Pi Film

3=Hard Tray Cap

4=Soft Tray

5=Soft Tray & Pi Film

6=Soft Tray Cap

7=Tape Rell

8=Tape Rell & Pi Film

9=Tape Rell Cap

A=Tube

B=Tube & Pi Film

C=Tube & Cap

D=Box

E=Bag

F=Semi-Hard Tray

P0:No Peg,Full Pin

P2:Two Peg,Full Pin

P1: Peg #1,Full Pin

S1: Peg #2,19th Pin Omitted

S2: Two Peg,19th Pin Omitted

Housing Color

A:Lcp,Nature or Ivory

B:Lcp,Black

C:Nylon 9T,Nature or Ivory

D:Nylon 9T,Black

Modification Code

None:Latch Length=3.20,Tail Length=3.30

1:Latch Length=3.00,Tail Length=3.30

2:Latch Length=3.00,Tail Length=2.70

3:Latch Length=3.20,Tail Length=2.70

Peg Type

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
