BLV88N30: Description300V, 88A, N-channel enhancement mode MOSFET; CategoryDiscrete semiconductor; File Size827KB，3 Pages; ManufacturerShanghai Belling; Websitehttp://www.belling.com.cn/; Shanghai Belling Co., Ltd. was founded in September 1988 and is the first Sino-foreign joint venture in the domestic integrated circuit industry. It was restructured and listed in August 1998, becoming the first listed company in the domestic integrated circuit industry. In April 2009, it was directly controlled by China Electronics Information Industry Group Co., Ltd. Shanghai Belling is an integrated circuit design enterprise within the national planning layout. It has a national enterprise technology center and focuses on integrated circuit (IC) design and application solution development. It is a major supplier of analog IC products in China and has formed three major business layouts: smart meter chips, power management, and general analog products. Up to now, the company has applied for 488 patents and authorized 299 patents, including 125 invention patents.

Download Datasheet View All

BLV88N30 Overview

300V, 88A, N-channel enhancement mode MOSFET

Features

BLV88N30 300V, 88A, N-channel enhancement mode MOSFET

N-channel Enhancement Mode Metal Oxide Semiconductor Field Effect Transistor

Maximum drain-source voltage Vds: 300V

Gate-source voltage Vgs: ±30V

Maximum drain current Id: 88A

Input impedance RDS(on): 0.048Ω

Input capacitance Ciss: 7500pF (VDS=25V,VGS=0V, f=1MHz)

Output capacitance Coss: 710pF (VDS=25V,VGS=0V, f=1MHz)

Feedback capacitor Crss: 37pF (VDS=25V, VGS=0V, f=1MHz)

Junction temperature Tj: -55℃~155℃

Storage temperature Tsdg: -55℃~155℃

Package: TO247

Replace reference:

Application areas:

PDP driver

BLV88N30 Preview

Download Datasheet

View All

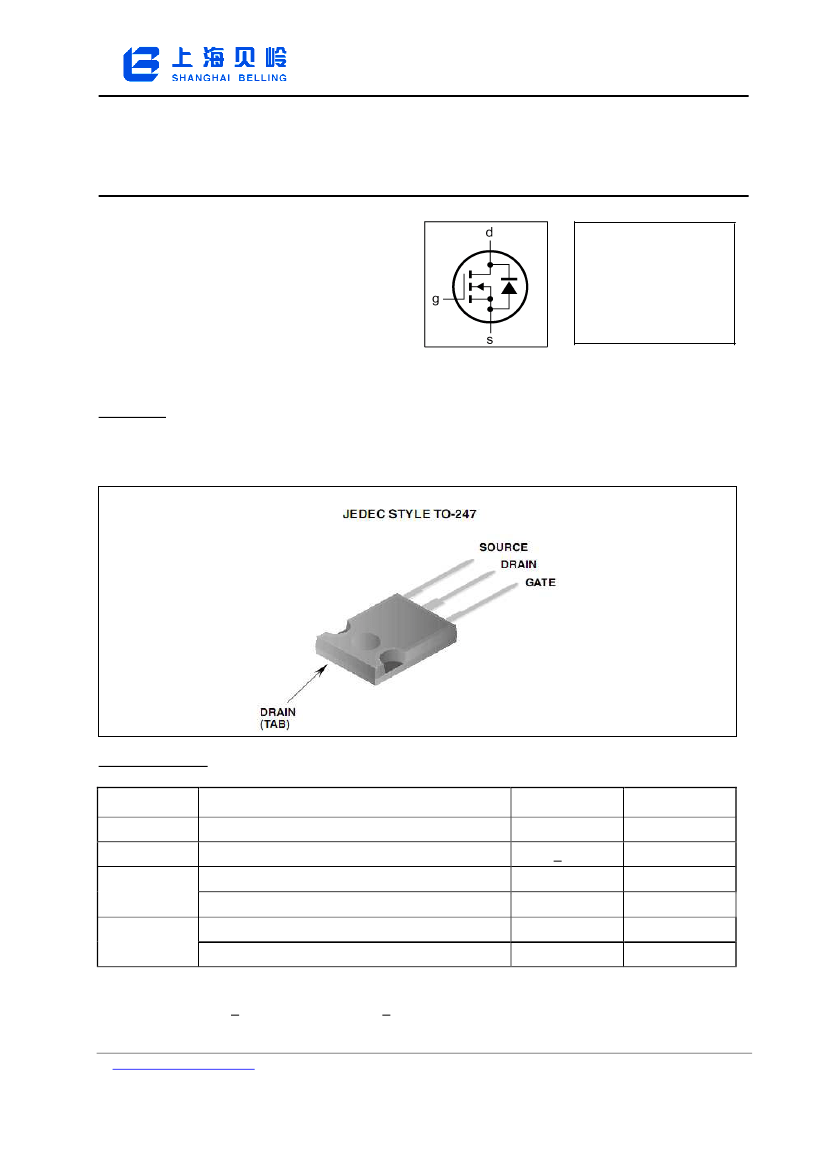

BLV88N30

N-channel Enhancement Mode Power MOSFET

Preliminary

August . 2009

•

½导通电阻

½反向传输电容

驱动简单

DSS

DS(ON)

300V

48mΩ

88A

产品介绍

300V 88A

大功率

VDMOS

器件，导通电阻小、驱动简单，适合

PDP

驱动电路½用

最大额定参数

(

=25

除非另有说明

)

符号

源漏电压

栅源电压

连续漏极电流

脉冲漏极电流

(注释 1)

½二极管连续漏极电流

½二极管脉冲漏极电流(注释

参数

极限值

300

+ 30

176

单½

注释:

脉冲½度

PW<10us,

占空比

duty cycle<1%

http://www.belling.com.cn

Page

1/1
