HL29206U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HL29206U

HL29206U: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug,; CategoryThe connector The connector; File Size69KB，2 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

HL29206U Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug,

HL29206U Parametric

Parameter Name	Attribute value
Maker	FOXCONN
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.35 inch
subject depth	0.365 inch
body length	2.302 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD (10)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HL29
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.112 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0

HL29206U Preview

Download Datasheet

View All

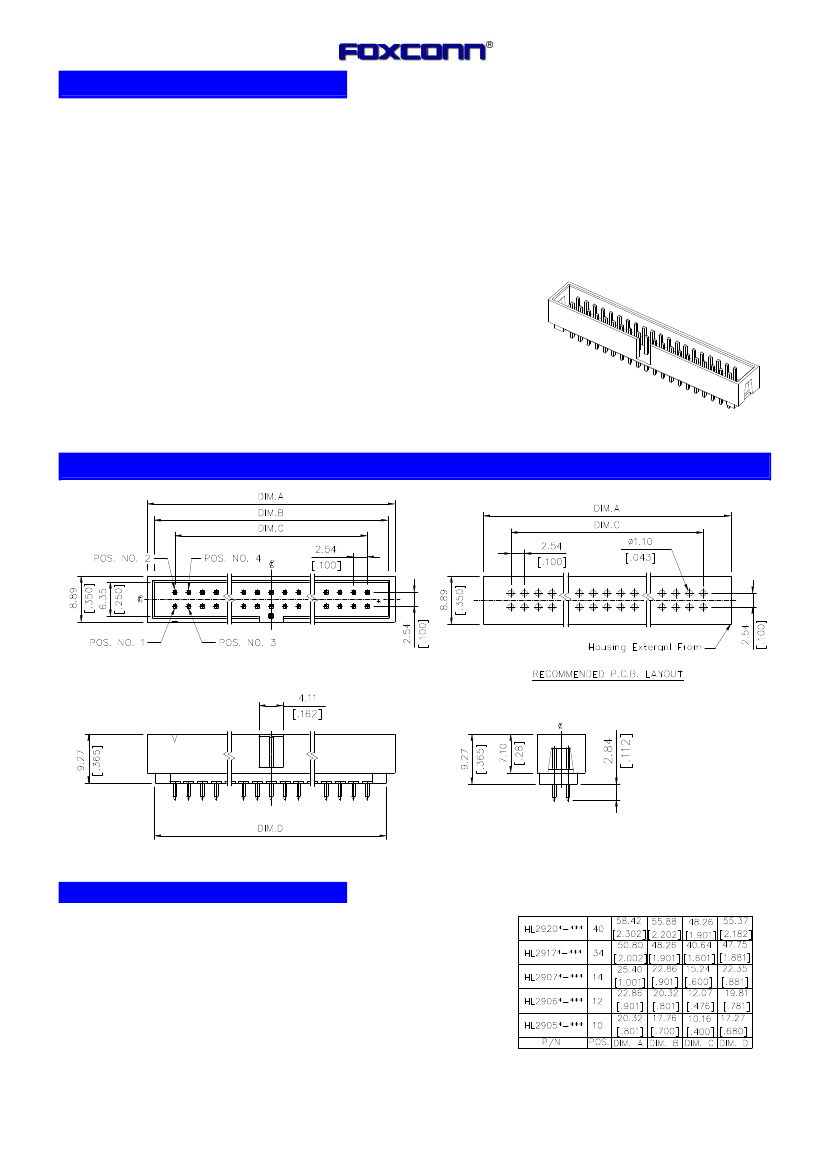

SPECIFICATIONS

SHROUDED Connector

HL29 Series

Vertical, T/H Type

Plug

2.54mmX2.54mm

[.100] X [.100] Pitch

Mechanical

Contact Retention Force:

1.36kg min.

Electrical

Current Rating:

3A Per Pin Min.

Dielectric Withstanding Voltage:

500V RMS

Insulation Resistance:

1000MΩ min.

Physical

Housing:

Thermoplastic UL 94V-0 Rated In Black Color

Contact:

Brass

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-10℃ to +85℃

DRAWING

ORDERING I N F O R M ATION

See The Attachment I

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
