CBRA030SD10P2T0 datasheet, PDF

CBRA030SD10P2T0: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size481KB，1 Pages; ManufacturerCvilux; Websitehttps://www.cvilux.com/; Environmental Compliance; Founded in 1990, CviLux specializes in the production and sale of connectors, FFCs, and wire harnesses. CviLux products are used in consumer electronics, computer and network, communications, industrial, automotive, and optical industries. CviLux is a listed company on the Taiwan Stock Exchange (code 8103). CviLux has ISO9001, ISO14001, IATF16949, and QC080000 certifications, as well as Apple MFi and USB certifications. They continue to develop new products for the ever-changing market. They have seven factories and global sales offices to support users' interconnect needs.

Download Datasheet Parametric View All

CBRA030SD10P2T0 Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TUBE PKG, W/ FIXED TABS
Board mount options	PEG
body width	0.177 inch
subject depth	0.077 inch
body length	0.48 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	150VAC V
Durability	30 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
Manufacturer's serial number	CBRA
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	30

SYSTEM CB BOARD TO BOARD CONNECTOR

CviLux

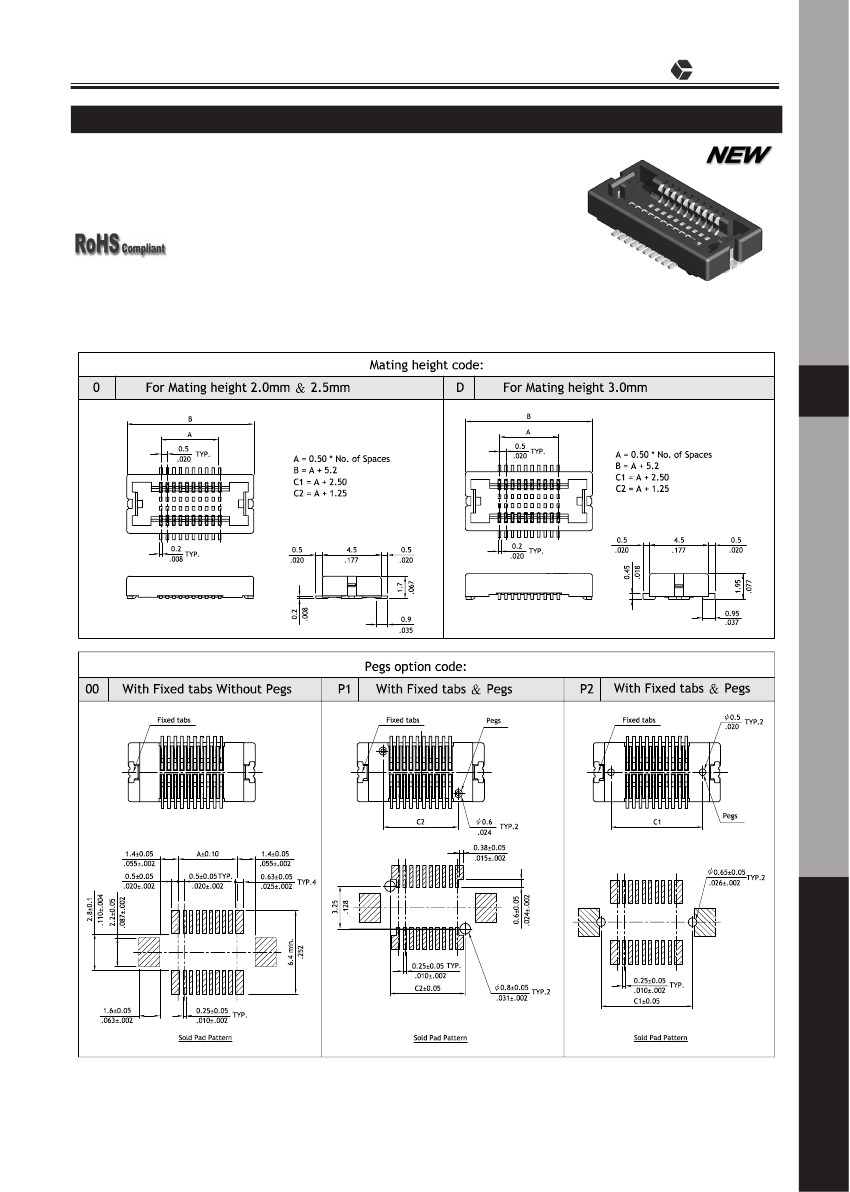

CBRA Series 0.50mm(.020") Board To Board Female Connector

0.50

mm(.

020

") Center spacing

Mating height 2.0 , 2.5 and 3.0 mm

Insulator: High temperature plastic UL 94V-0 , Color Black

Available in Tube or Reel packing

BOARD TO BOARD

B05

BOARD TO BOARD
