LB18071-S51TC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LB18071-S51TC

LB18071-S51TC: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

LB18071-S51TC Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug

LB18071-S51TC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.254 inch
subject depth	0.331 inch
body length	0.665 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
Manufacturer's serial number	LD
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.4986 mm
Plating thickness	FLASH inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.128 inch
Termination type	SOLDER
Total number of contacts	7

LB18071-S51TC Preview

Download Datasheet

View All

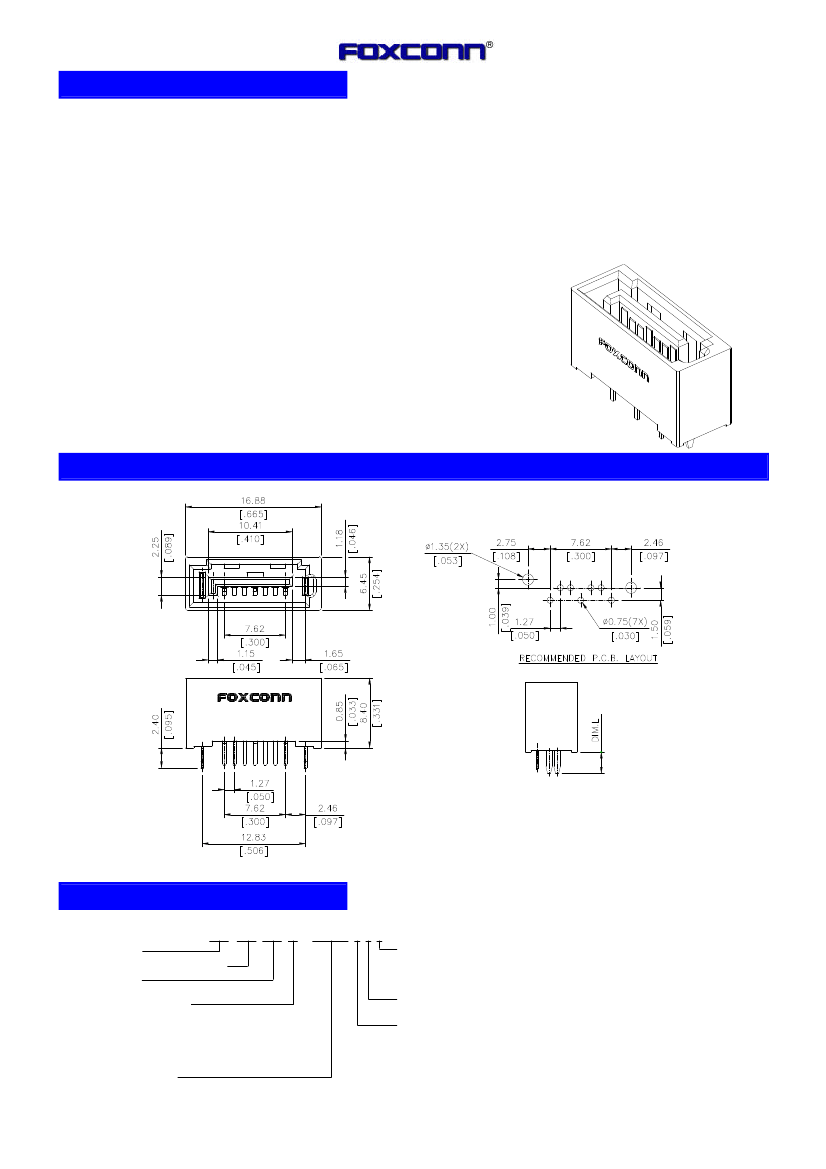

SPECIFICATIONS

Serial ATA Connector

LD Series

Vertical, T/H Type

Shrouded Plug

1.27mm [.050"] Pitch

7 Pos.

Mechanical

Insertion Force:

45N max.

Withdrawal Force:

10N min.

Durability:

500 Cycles.

Electrical

Voltage Rating:

250V.

Current Rating:

1.5A per pin min.

Contact Resistance:

30mΩ max.

Dielectric Withstanding Voltage:

500V AC.

Insulation Resistance:

1000MΩ min.

Physical

Housing:

Thermoplastic, UL 94V-0 rated in Black Color

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Board Lock:

Copper alloy

Operating Temperature:

-55℃ to +85℃

DRAWING

ORDERING INFORMATION

PRODUCT NO.: LD 1 8 0 7 * - S 5 1 * * *

Serial ATA

Termination & Contact Type

No. of Pos

07=7 Pos

Tail Length

None

:DIM.L=2.45mm

:DIM.L=2.85mm

:DIM.L=3.25mm

:DIM.L=2.05mm

Contact Area Plating

1: Gold Flash

3: 30u" Gold

7: 15u" Gold

F: Gold Flash With RoHS Compliance

H: Gold Plating 30u" With RoHS Compliance

V: Gold Plating 15u" With RoHS Compliance

Packing Type

None = Tray

Housing Material

P=Color Black PBT

B=Color Blue PBT

C=Color Light Blue PBT

W=Color White PBT

J=Color Orange PBT

T=Color Black PA6T

U=Color Blue PA6T

Modification Code

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
