C7W2PCH23650C00 datasheet, PDF

C7W2PCH23650C00: DescriptionD Type Connector, 7 Contact(s), Male, Solder Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size161KB，1 Pages; ManufacturerCvilux; Websitehttps://www.cvilux.com/; Environmental Compliance; Founded in 1990, CviLux specializes in the production and sale of connectors, FFCs, and wire harnesses. CviLux products are used in consumer electronics, computer and network, communications, industrial, automotive, and optical industries. CviLux is a listed company on the Taiwan Stock Exchange (code 8103). CviLux has ISO9001, ISO14001, IATF16949, and QC080000 certifications, as well as Apple MFi and USB certifications. They continue to develop new products for the ever-changing market. They have seven factories and global sales offices to support users' interconnect needs.

Download Datasheet Parametric View All

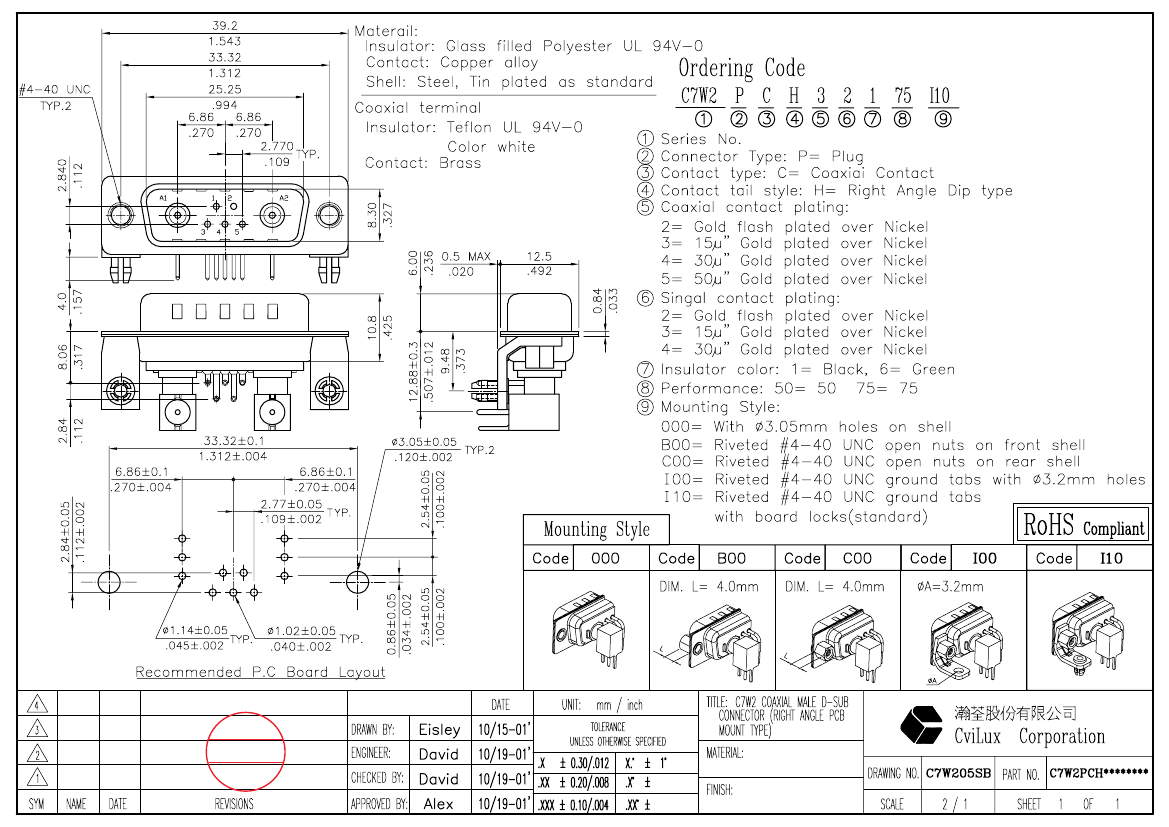

C7W2PCH23650C00 Overview

D Type Connector, 7 Contact(s), Male, Solder Terminal, #4-40, Plug,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305423051
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.512 inch
body length	1.543 inch
Body/casing type	PLUG
Contact arrangement	S5C2
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	10 mΩ
Contact style	HYBRID
Dielectric withstand voltage	1000VAC V
Durability	100 Cycles
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	C7W2
Mixed contacts	YES
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	7

CviLux

Ω,

CVILUX CORP.

2006.09.05

ISSUED

CVILUX.CORP.

2001.10.22

ISSUED
