CD0126PA0A0: DescriptionD Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Lug Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerCvilux; Websitehttps://www.cvilux.com/; Environmental Compliance; Founded in 1990, CviLux specializes in the production and sale of connectors, FFCs, and wire harnesses. CviLux products are used in consumer electronics, computer and network, communications, industrial, automotive, and optical industries. CviLux is a listed company on the Taiwan Stock Exchange (code 8103). CviLux has ISO9001, ISO14001, IATF16949, and QC080000 certifications, as well as Apple MFi and USB certifications. They continue to develop new products for the ever-changing market. They have seven factories and global sales offices to support users' interconnect needs.

Download Datasheet Parametric View All

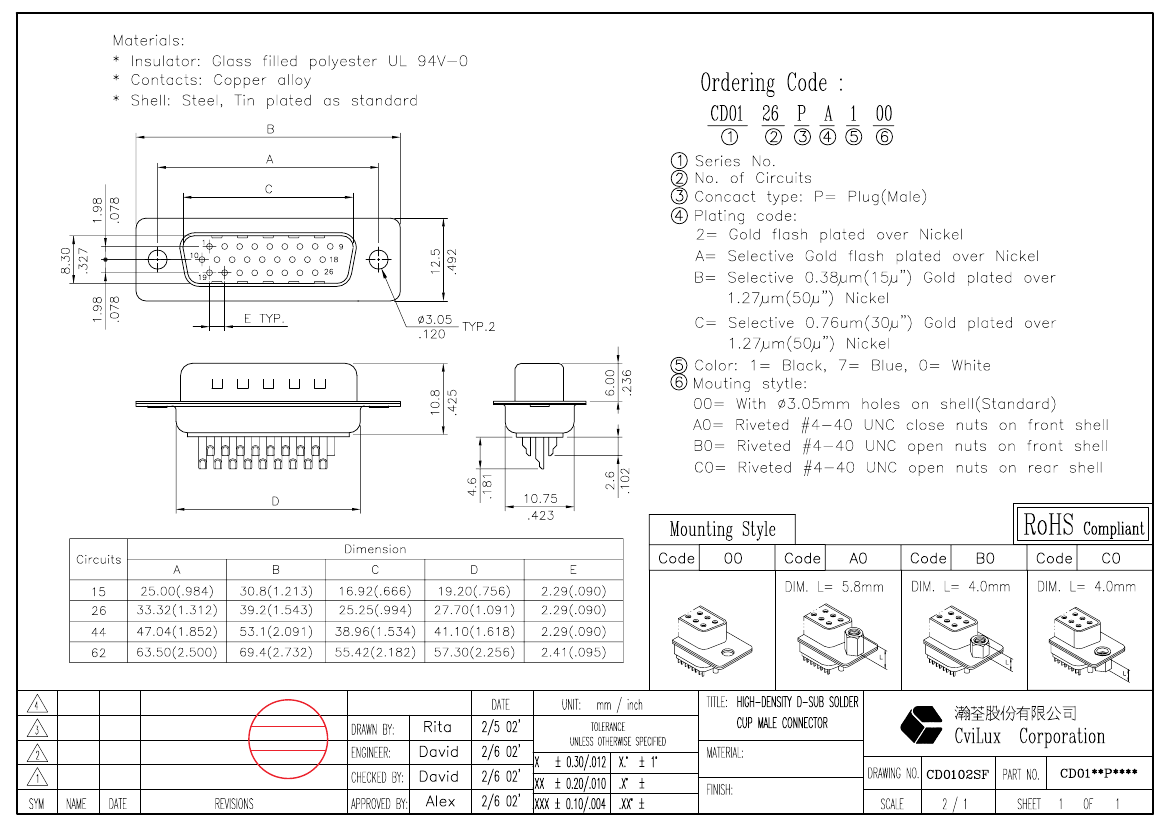

CD0126PA0A0 Overview

D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Lug Terminal, #4-40, Plug,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305446958
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.492 inch
subject depth	0.189 inch
body length	1.543 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.3352 N
Insulation resistance	5000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.181 inch
Termination type	SOLDER LUG
Total number of contacts	26
Evacuation force-minimum value	.139 N

CviLux

CVILUX CORP.

2006.09.05

ISSUED

CVILUX.CORP

2002.02.06

ISSUED
