DS01A97-MD631-7F Overview

D Subminiature Connector, 15 Contact(s), Female, Surface Mount Terminal, #4-40, Plug, LEAD FREE

DS01A97-MD631-7F Parametric

Parameter Name	Attribute value
Objectid	1609240746
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8
Other features	ROHS COMPLIANT
body width	0.387 inch
subject depth	0.157 inch
body length	1.221 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD (15)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	DS
Match contact row spacing	0.078 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Housing size	1/E
Terminal pitch	0.762 mm
Termination type	SURFACE MOUNT
Total number of contacts	15
UL Flammability Code	94V-0
Evacuation force-minimum value	1.946 N

DS01A97-MD631-7F Preview

Download Datasheet

View All

SPECIFICATIONS

D-SUB Connector

DS Series

Right Angle, SM T, Female

Type

15 Pos.

Center Height 3. 00 mm

Recommended PCB’s

Thickness 1.60mm

Mechanical

Contact Engagement Force :

0.34 Kgf/ Pin max.

Contact Separation Force :

0.021 Kgf/ Pin min.

Durability :

500 Cycles

Electrical

Voltage Rating:

240V

Current Rating:

Contact Resistance:

30 m

Ω

max.

Dielectric Withstanding Voltage:

500V AC/1 min.

Insulation Resistance:

5000M

Ω

Physical

Housing:

Thermoplastic, UL 94V-0 rated in PC99 Color

Contact:

Copper alloyZ

Plating:

See “ORDERING INFORMATION”

Solder Pad:

Copper alloy

Operating Temperature:

-55

℃

to +105

℃

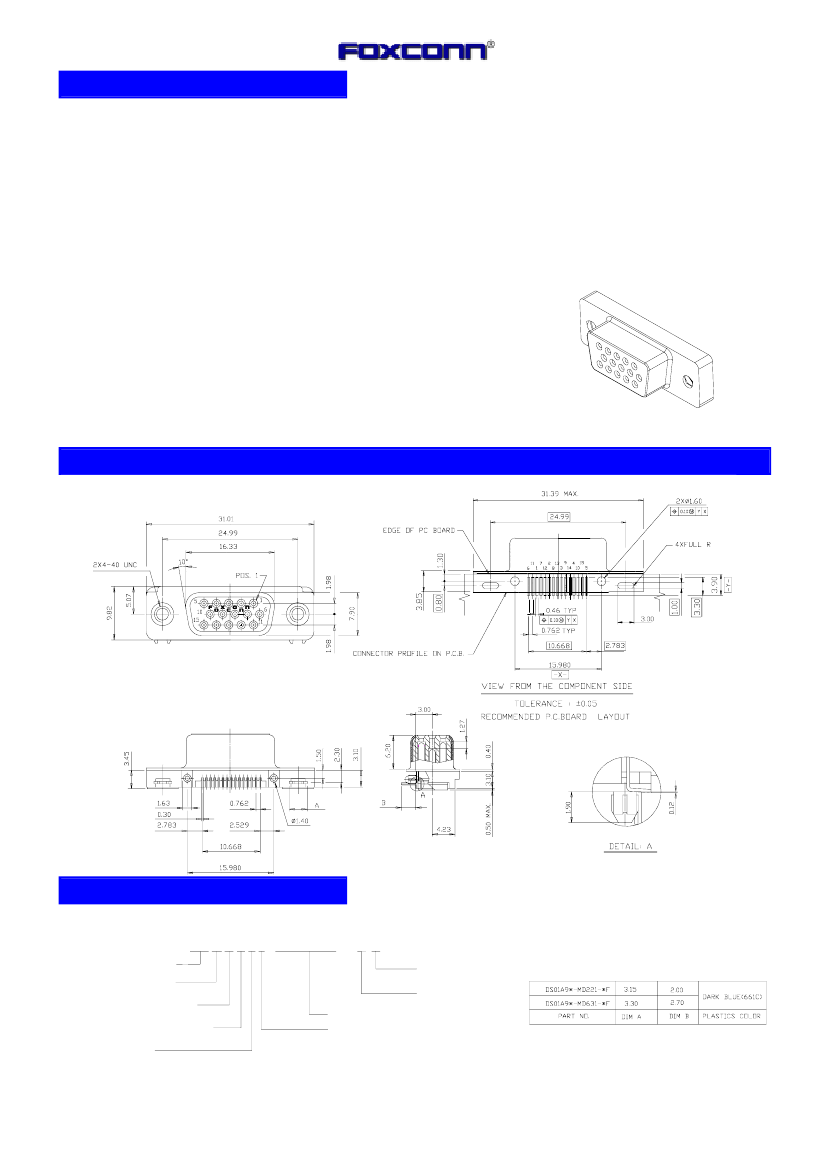

DRAWING

ORDERING I NF OR MATI ON

PRODUCT NO.: DS 0 1 A 9 * --* * * * * -- * F

D-SUB SMT SERIES

TERMINATOR TYPE

0 = STRAIGHT ANGLE

LEAD FREE CODE

F = Lead free

PACKING CODE

EXTENSION CODE

CONTACT PLATING

1 = GOLD FLASH

2 = 20u" GOLD PLATING

3 = 30u" GOLD PLATING

6 = 10u" GOLD PLATING

7 = 15u" GOLD PLATING

0 = NONE

1 = HARD TRAY

2 = HARD TRAY W/PI FILM

3 = HARD TRAY CAP

4 = SOFT TRAY

5 = SOFT TRAY PIFILM

6 = SOFT TRAY CAP

7 = TAPE&REEL

8 = TAPE&REEL PI FILM

9 = TAPE&REEL CAP

A = TUBE

B = TUBE PI FILM

C = TUBE CAP

D = BOX

E = BAG

CONTACT DESIGN TYPE

1 = FEMALE

NO. OF CONTACT POSITION

A = 15 POS. HiIGH DENSITY

BODY LENGTH

9 = SPECIAL TYPE

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
