K43Kph

Mini 5-axis motherboard with 2225 driver

Overview

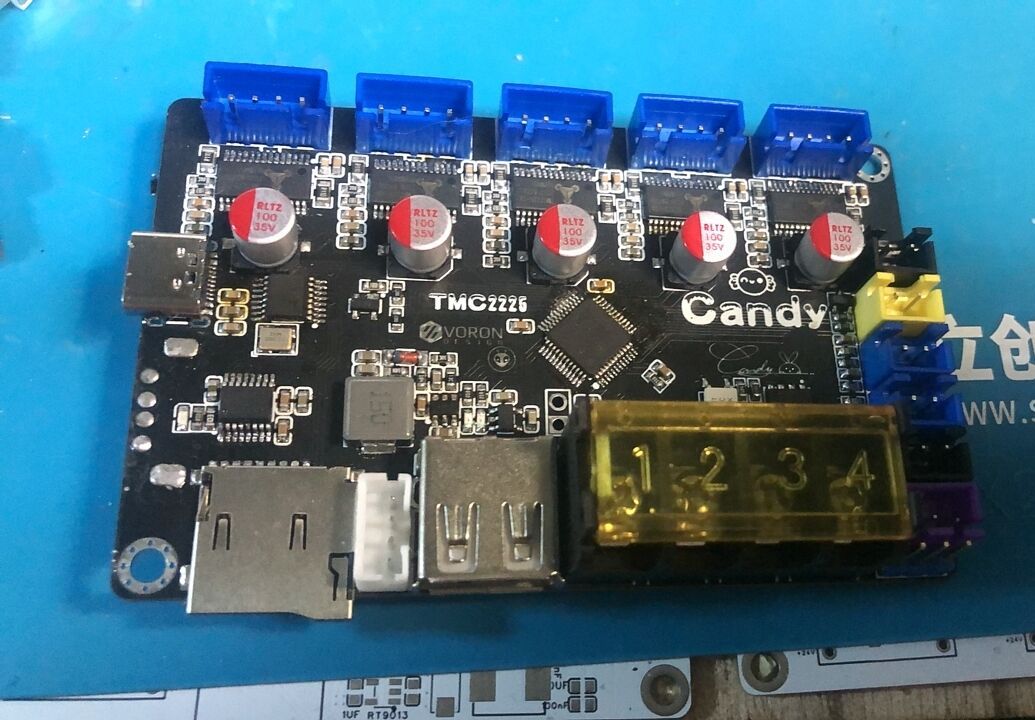

First, thank you to the user "琉璃" for their hard work in creating the wiring. This is a mini 3D printer motherboard that requires a tool head to function. An open-source 3D printer motherboard with an STM32F103C6 main controller, a 5-axis TMC2225 driver for stepper motors, and a 410 stick hub is also available.
Welcome to join the discussion group: 948104146
