9FG830AGILF

Among 4 related components, 9FG830AGILF have related pdf.

Part Number	Manufacturer	Description	Datasheet
9FG830AGILF	IDT (Integrated Device Technology, Inc.)	Clock Generators u0026 Support Products PCIE SYNTHESIZER - GEN3, 8 OUTPUT	Download
9FG830AGILF	IDT (Integrated Device Technology)	TSSOP-48, Tube	Download
9FG830AGILFT	IDT (Integrated Device Technology, Inc.)	400 MHz, PROC SPECIFIC CLOCK GENERATOR, PDSO48	Download
9FG830AGILFT	IDT (Integrated Device Technology)	Clock Generators & Support Products PCIE SYNTHESIZER - GEN3, 8 OUTPUT	Download

9FG830AGILF parameters：

Description

TSSOP-48, Tube

Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP48,.3,20
Contacts	48
Manufacturer packaging code	PAG48
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Confidence	3
Samacsys Status	Released
Samacsys PartID	11130093
Samacsys Pin Count	48
Samacsys Part Category	Integrated Circuit
Samacsys Package Category	Small Outline Packages
Samacsys Footprint Name	PAG48-=
Samacsys Released Date	2020-02-02 10:50:51
Is Samacsys	N
JESD-30 code	R-PDSO-G48
JESD-609 code	e3
length	12.5 mm
Humidity sensitivity level	1
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	400 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP48,.3,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	3.3 V
Master clock/crystal nominal frequency	25 MHz
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum slew rate	250 mA
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	6.1 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC
Base Number Matches	1

555 water level control circuit diagram

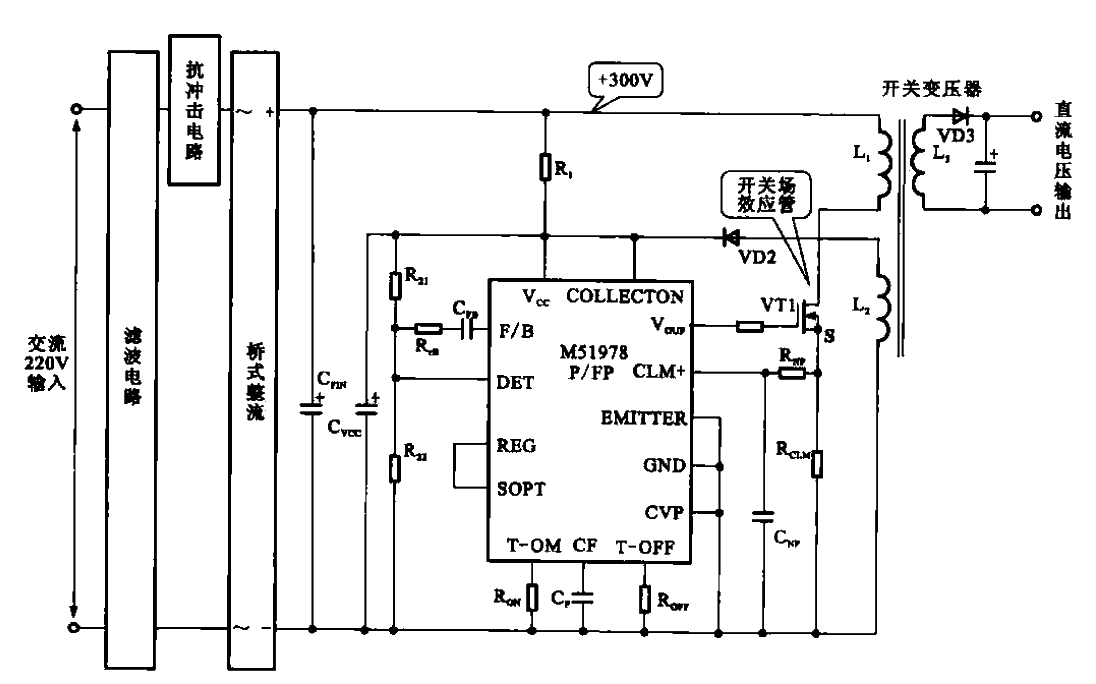

The basic structure of a typical dot matrix printer switching power supply

Fade-in-fade light switch circuit 2

Electronic mosquito killer circuit

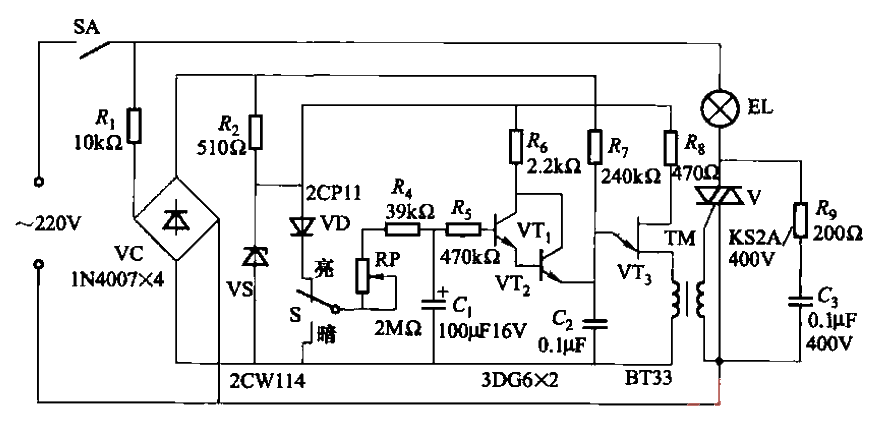

Automatic night lighting circuit diagram using bidirectional thyristor

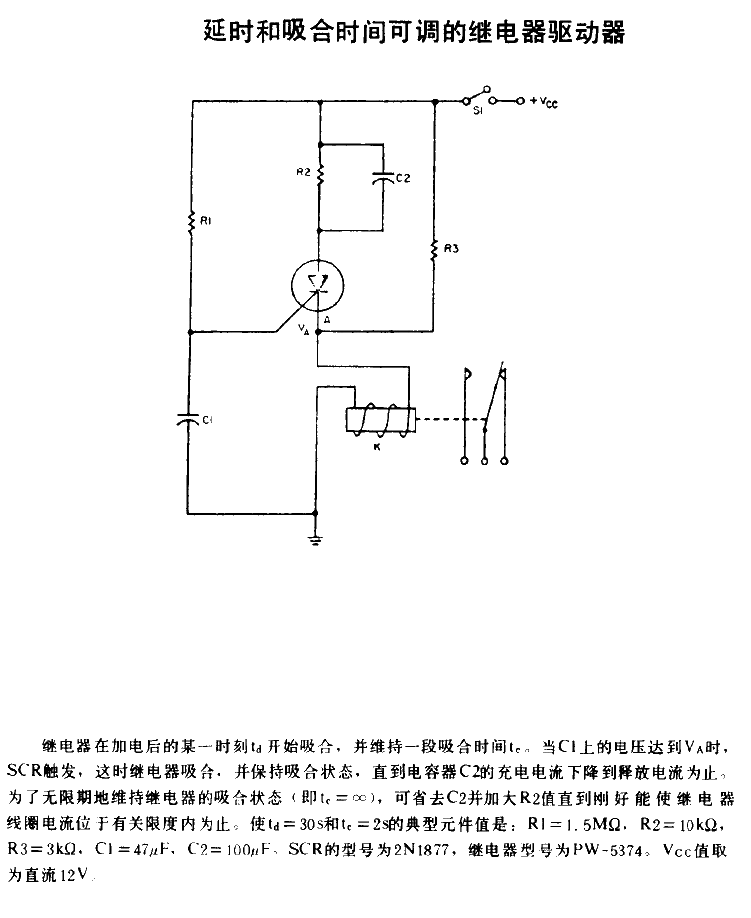

Relay driver with adjustable delay and pickup time

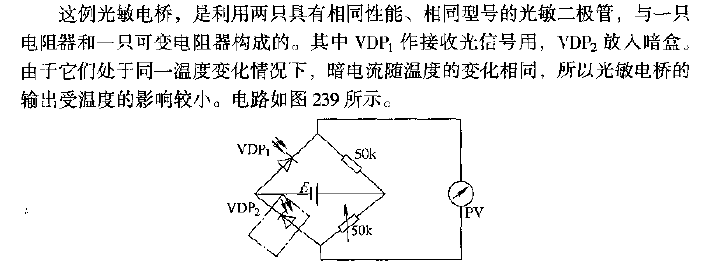

Photodiode photosensitive bridge temperature control circuit

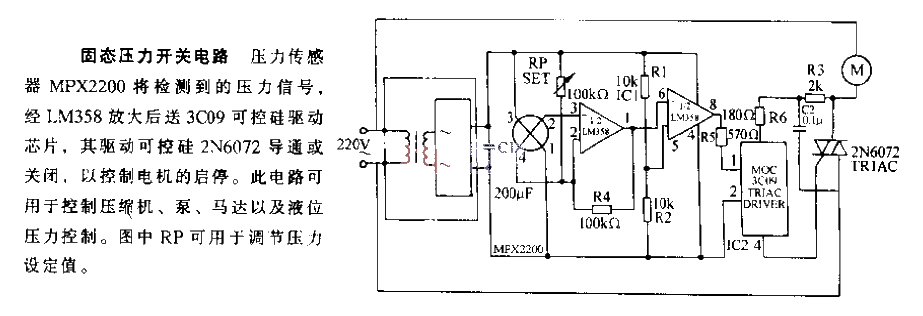

Solid State Pressure Switch Circuit

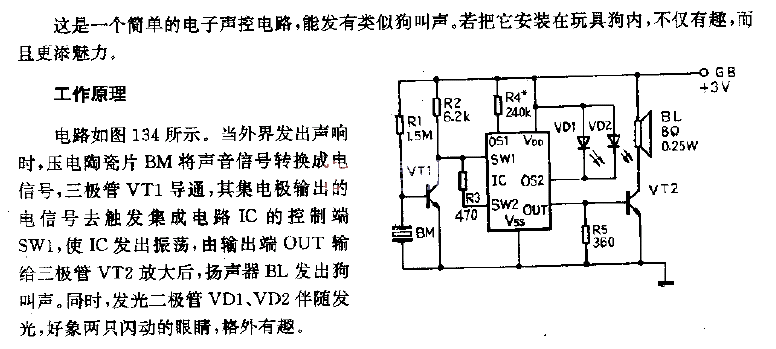

Voice controlled toy dog circuit diagram

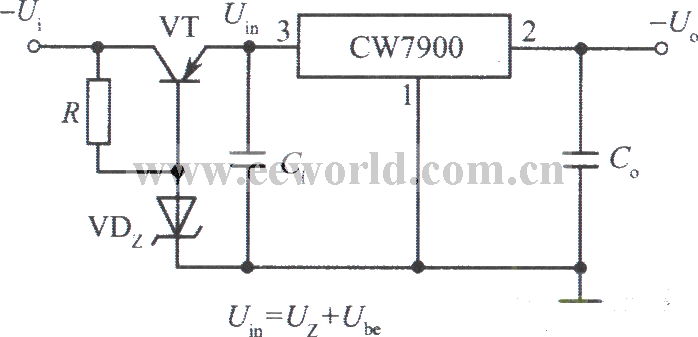

High input voltage integrated regulated power supply circuit 2
