MDA-1/16-R

Showing 2 Results for MDA-1/16-R, including MDA-1-16-R,MDA-1-16-R, etc. You can look for possible substitutions between devices by comparing the similarities and differences between them.

Part Number	Manufacturer	Description	Datasheet
MDA-1-16-R	Eaton	Cartridge Fuses	Download
MDA-1-16-R	Bussmann (Eaton)	cartridge fuses	Download

MDA-1/16-R Related Product Datasheets：

Part Number	Datasheet
MDA-1-1/4-R 、 MDA-1-6/10-R 、 MDA-1-R 、 MDA-1/10-R 、 MDA-1/16 、 MDA-1/8-R 、 MDA-15-R	Download Datasheet
MDA100G 、 MDA100G 、 MDA101G 、 MDA102G 、 MDA104G 、 MDA104G 、 MDA106G	Download Datasheet
MDA100A 、 MDA101A 、 MDA102A 、 MDA104A 、 MDA106A 、 MDA108A 、 MDA110A	Download Datasheet
MDA-1-1/2-R 、 MDA-1-R 、 MDA-1/2-R 、 MDA-1/4-R 、 MDA-10-R 、 MDA-12-R 、 MDA-15-R	Download Datasheet
MDA-1 、 MDA-1-1/2 、 MDA-1/2 、 MDA-1/4 、 MDA-10 、 MDA-12 、 MDA-15	Download Datasheet
MDA-1 、 MDA-1-12 、 MDA-1-2 、 MDA-1-4 、 MDA-10 、 MDA-15	Download Datasheet
MDA100G 、 MDA101G 、 MDA102G 、 MDA104G 、 MDA108G	Download Datasheet
MDA-1-10 、 MDA-1-10-R 、 MDA-1-4 、 MDA-1-6-10-R 、 MDA-15-R	Download Datasheet
MDA-1-1/2-R 、 MDA-1/32-R 、 MDA-1/4-R 、 MDA-15/100 、 MDA-15/100-R	Download Datasheet
MDA100G 、 MDA104G 、 MDA106G 、 MDA110G	Download Datasheet

MDA-1/16-R Related Products：

Part Number	MDA-1	MDA-1-1/2	MDA-1/2	MDA-1/4	MDA-10	MDA-12	MDA-15
Description	Electric Fuse, Time Delay Blow, 1A, 250VAC, 35A (IR), Inline/holder, 3AB,	Electric Fuse, Time Delay Blow, 1.25A, 250VAC, 100A (IR), Inline/holder	Electric Fuse, Time Delay Blow, 0.5A, 250VAC, 250VDC, 35A (IR), Inline/holder,	Electric Fuse, Time Delay Blow, 0.25A, 250VAC, 35A (IR), Inline/holder, 3AB,	Electric Fuse, Time Delay Blow, 10A, 250VAC, 250VDC, 200A (IR), Inline/holder, 3AB,	Electric Fuse, Time Delay Blow, 12A, 250VAC, 250VDC, 750A (IR), Inline/holder, 3AB,	Electric Fuse, Time Delay Blow, 15A, 250VAC, 250VDC, 750A (IR), Inline/holder, 3AB,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	compliant	compliant	compliant	unknow	compliant	compliant
Fusing characteristics	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY	TIME DELAY
body height	31.75 mm	31.75 mm	32.82 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm
Body length or diameter	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	11 J	25 J	2 J	-	1491 J	113 J	206 J
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
physical size	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 32.82mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm
Rated breaking capacity	35 A	100 A	35 A	35 A	200 A	750 A	750 A
Rated current	1 A	1.25 A	0.5 A	0.25 A	10 A	12 A	15 A
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Guideline	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
Maker	Cooper Industries	-	Cooper Industries	Cooper Industries	Cooper Industries	Cooper Industries	-
Fuse size	3AB	-	-	3AB	3AB	3AB	3AB
Pre-discharge rating	10.08 A2/s	-	-	0.5 A2/s	843 A2/s	1.67 A2/s	238.1 A2/s
Rated voltage	250 V	-	-	250 V	250 V	250 V	250 V
Rated voltage (DC)	-	-	250 V	-	250 V	250 V	250 V
Terminal surface	-	-	Nickel (Ni)	-	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)

Tree-trunk main wiring system diagram a

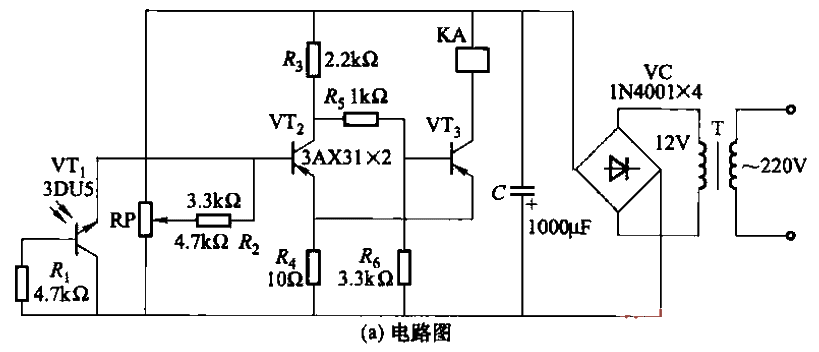

Punch photoelectric control safety device circuit one a

MAX619 parallel use circuit diagram

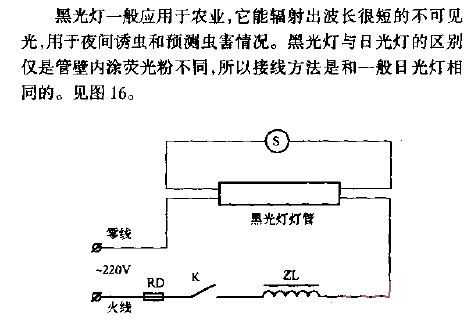

Black light wiring method wiring

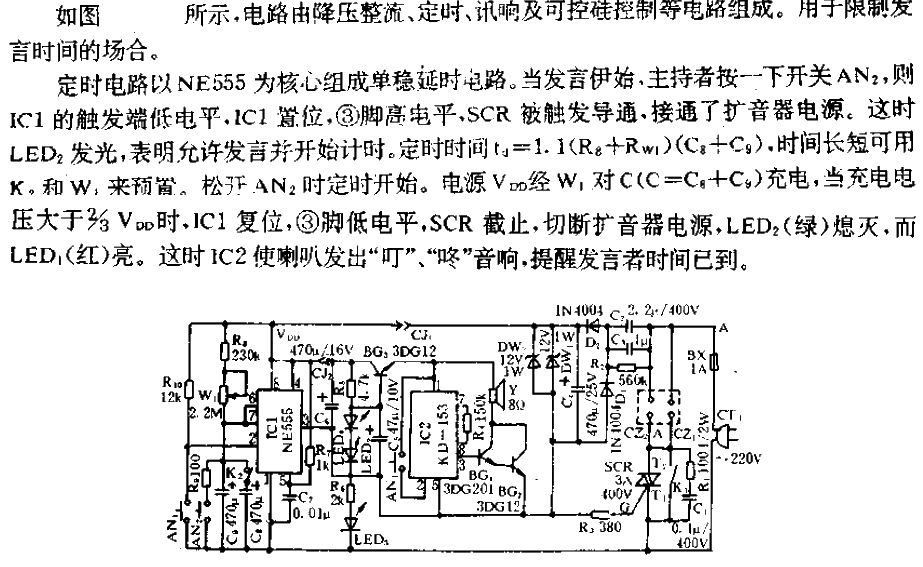

Limited time speech sound and light annunciator circuit

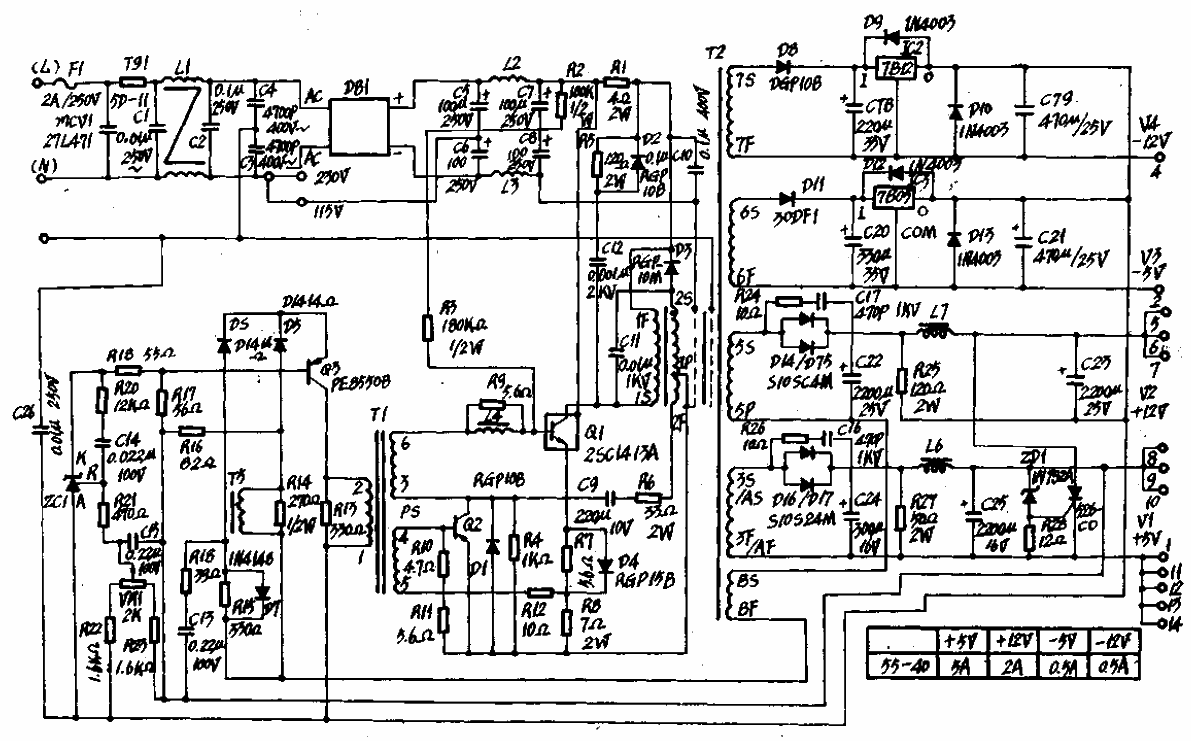

IBM-PC∕XT power supply circuit diagram 03

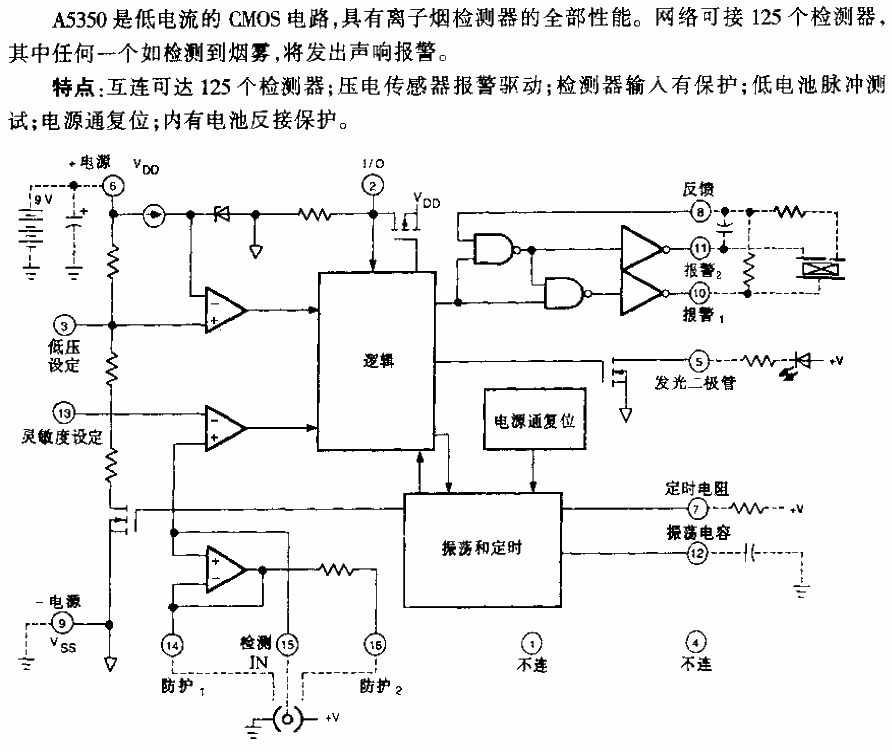

A5350 photoelectric smoke detector circuit - block diagram

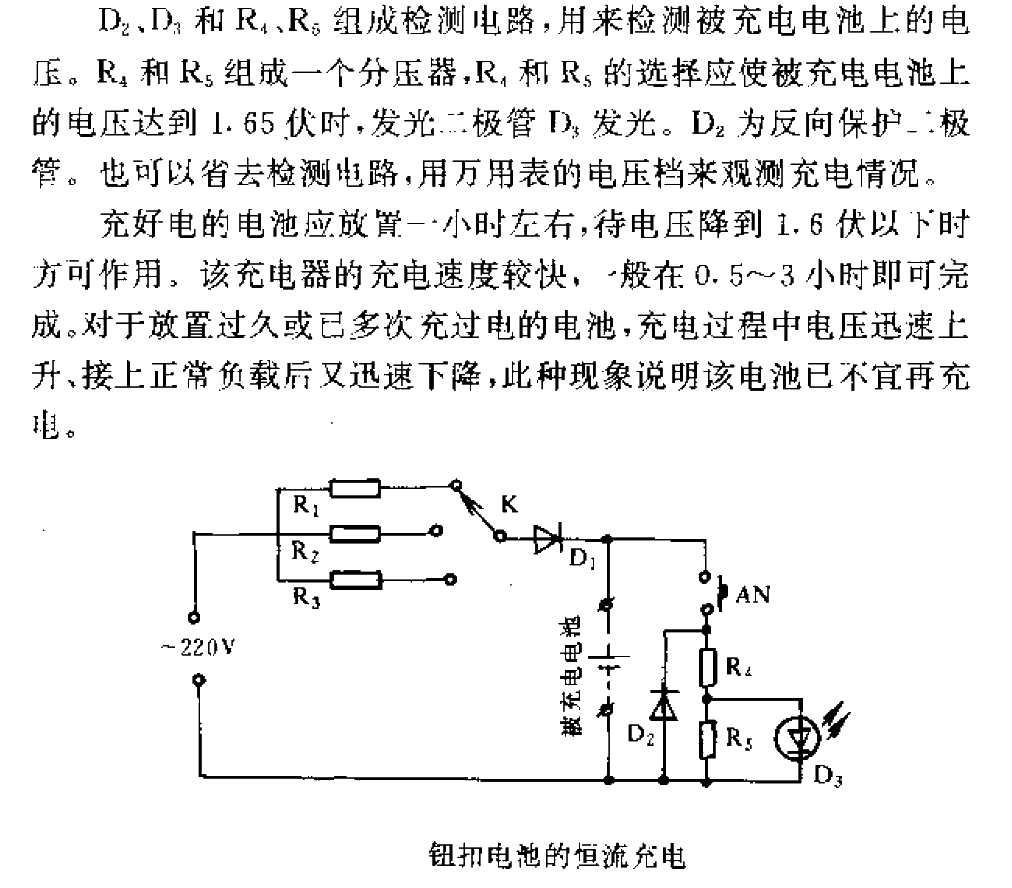

Constant current charging of button batteries

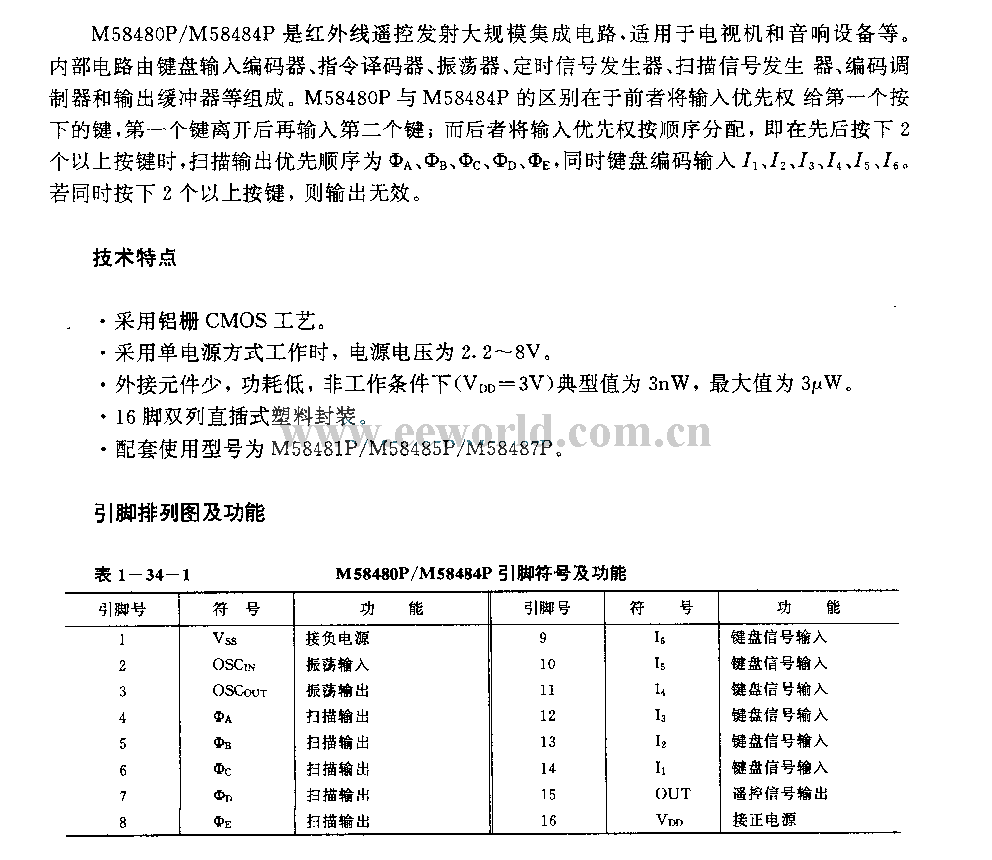

M58480P/M58484P (TV primary audio equipment) 30-function infrared remote control transmitter circuit
