Datasheet >

REF198FS

Showing 7 Results for REF198FS, including REF198FS,REF198FS, etc. You can look for possible substitutions between devices by comparing the similarities and differences between them.

Part Number	Manufacturer	Description	Datasheet
REF198FS	ADI	precision micropower, low dropout voltage references	Download
REF198FS	Rochester Electronics	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 4.096 V, PDSO8, MS-012AA, SOIC-8	Download
REF198FS-REEL	ADI	IC vref series 4.096v 8soic	Download
REF198FSZ	ADI	V-Ref Precision 4.096V 30mA 8-Pin SOIC N Tube	Download
REF198FSZ	Rochester Electronics	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 4.096 V, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8	Download
REF198FSZ-REEL	ADI	V-Ref Precision 4.096V 30mA 8-Pin SOIC N T/R	Download
REF198FSZ-REEL	Rochester Electronics	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 4.096 V, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8	Download

REF198FS Related Product Datasheets：

Part Number	Datasheet
REF198FSZ 、 REF198FSZ-REEL	Download Datasheet
REF198FSZ 、 REF198FSZ-REEL	Download Datasheet
REF198FS-REEL	Download Datasheet
REF198FS	Download Datasheet
REF198FS	Download Datasheet

REF198FS Related Products：

Part Number	REF198FSZ-REEL	REF198FSZ
Description	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 4.096 V, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 4.096 V, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Rochester Electronics	Rochester Electronics
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e3	e3
length	4.9 mm	4.9 mm
Humidity sensitivity level	1	1
Number of functions	1	1
Output times	1	1
Number of terminals	8	8
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output voltage	4.101 V	4.101 V
Minimum output voltage	4.091 V	4.091 V
Nominal output voltage	4.096 V	4.096 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260
Maximum seat height	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	15 V	15 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Maximum voltage temperature coefficient	10 ppm/°C	10 ppm/°C
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	40	40
Fine-tuning/adjustable output	NO	NO
width	3.9 mm	3.9 mm

Siemens S7-200PLC internal S485 interface circuit diagram

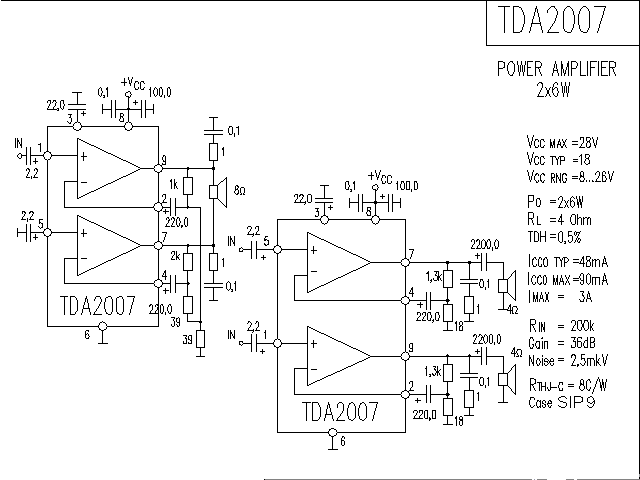

TDA2007 power amplifier circuit diagram

Touch-type delay circuit using digital circuits (5)

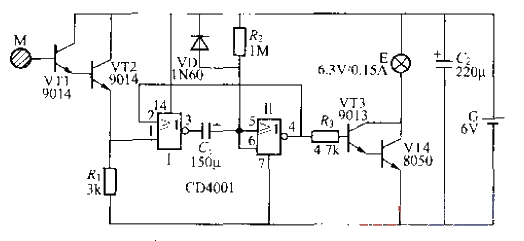

Use CD4017 to make voice-controlled flowing water lanterns

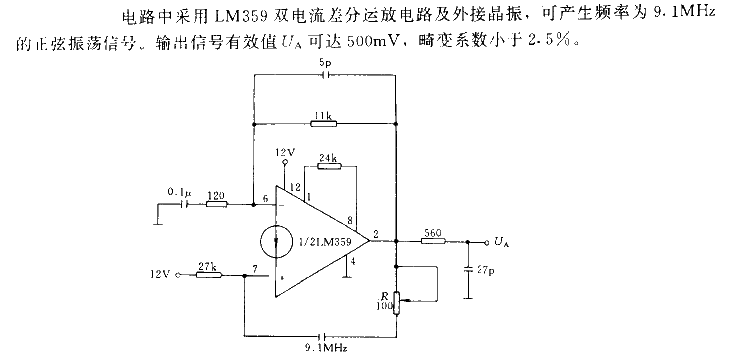

Sinusoidal signal generator circuit with crystal oscillator

SAA1064 serial I2C bus LED static driver interface circuit diagram

Thyristor overcurrent and overvoltage protector circuit

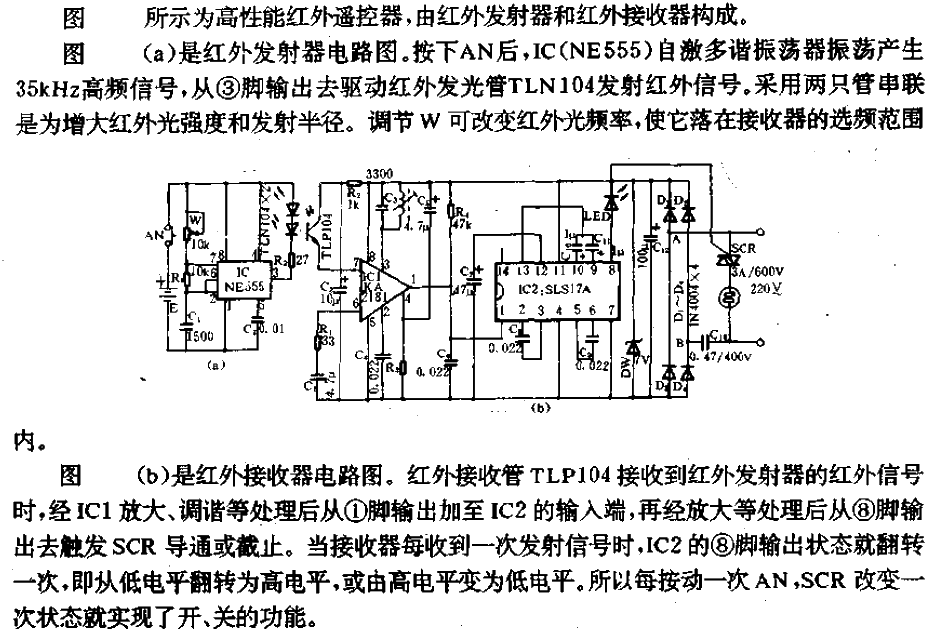

High performance infrared remote control switch circuit

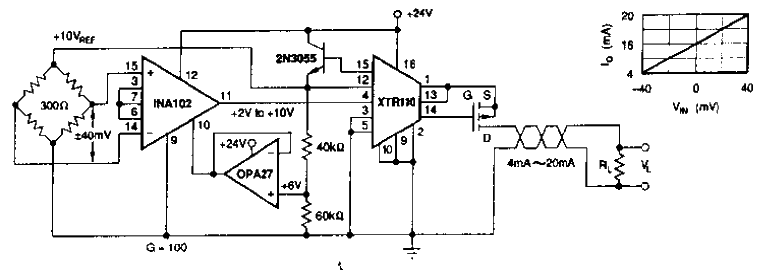

Single Supply Bridge Sensor Transmitter Circuit

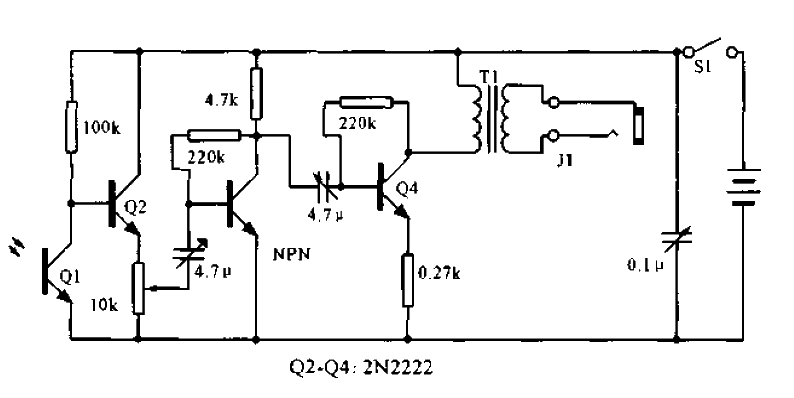

Infrared receiver circuit diagram
