Electrocomponents
®
Series 218
Data Sheet

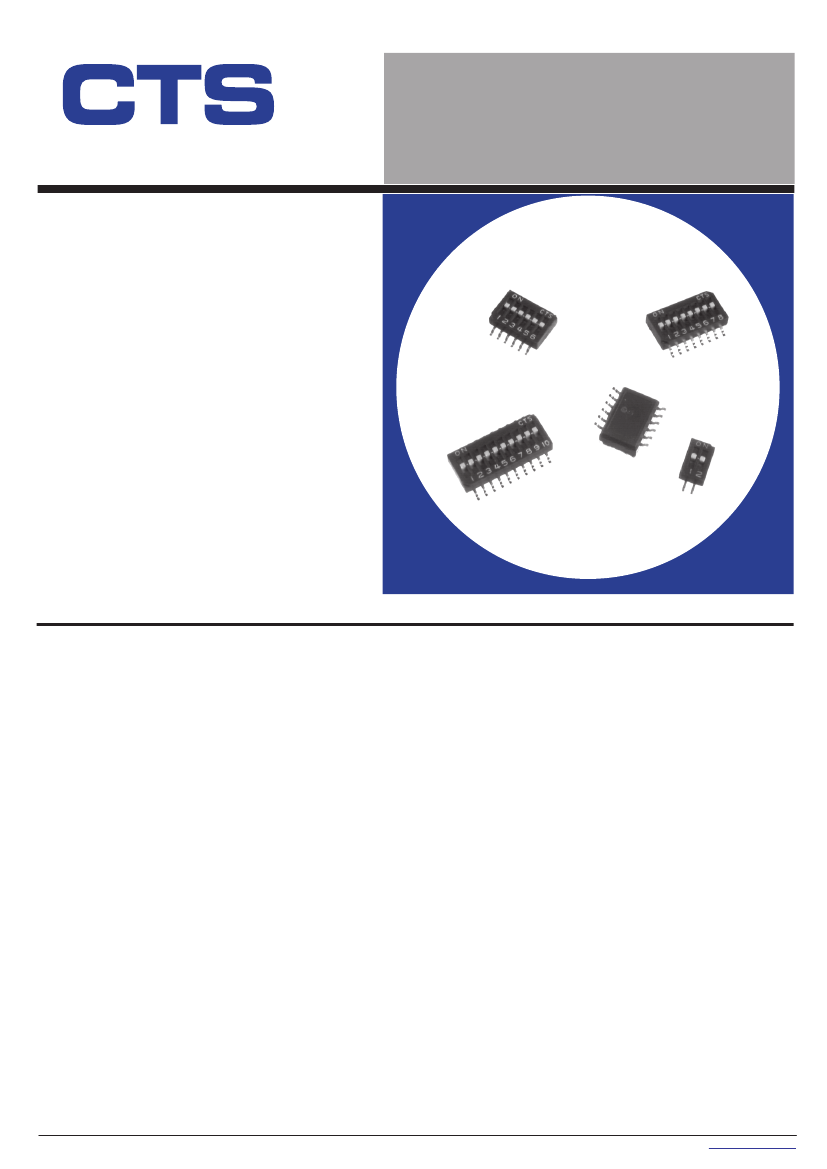

Half Pitch, SMD DIP Switch
SMT Half Pitch DIP
Switch–Auto
Placeable
Features
Optimized Mechanical Features
• Gull-wing and "J" bend terminal configurations
• Low profile actuators prevent accidental actuation
• SPST configuration available
Optimized Contact System
• Redundant, wiping contact
• Contactor does not deflect during actuation
• 0.6 mm/.024" actuator travel
Materials
• Gold plated beryllium copper contacts
• Gold flash coated terminals
• High temperature materials (UL94V-0)
• RoHS Compliant
• Optional top tape seal for board spray washing
Electrical and Mechanical Specifications
Sw i t c h Fu n c t i o n
SPST - 2, 4, 6, 8, 10, and 12 positions
Sw i t c h Co n t ac t Res i s t an ce
100 milliohms maximum initial
100 milliohms maximum at end of life
In s u l at i o n Res i s t an c e
100 megohms minimum between
insulated terminals
Di el ec t r i c St r en g t h
350 VAC for 1 minute between
adjacent switches
No n s w i t c h i n g Rat i n g
100 mA or 50 VDC maximum
Sw i t c h Cap ac i t an c e
10 pF maximum between adjacent
closed switches
Op er at i n g Tem p er at u r e
- 55°C to +85°C
A c t u at i o n L i f e
1,000 cycles switching 25 mA @ 24 VDC
Co p l an ar i t y
Coplanarity of 0.1mm/.004" maximum
Allowable Solder Time
Up to 60 seconds at 260°C
Vi b r at i o n
Per MIL-STD-202G, method 204D, condition B
(.06" or 15G’s between 10 HZ to 2 KHz) with
no contact inconsistencies greater than 1
microsecond.
Sh o c k
Per MIL-STD-202G, method 213B, condition A
(50G’s) with no contact inconsistencies greater
than 1 microsecond.
Seal i n g
Standard bottom seal
Optional top tape seal for board spray washing
Mar k i n g
Special marking available-consult CTS
Packaging
Standard : Anti-static tube packaging
Optional : Tape and reel packaging
1-2
CTS Electrocomponents
© 2017 CTS Corporation. All rights reserved. Information subject to change.
www.ctscorp.com
06/14/17
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
CTS
:
218-12LPST 218-4LPSTR 218-6LPSTR 218-6LPSTJ 218-8LPSTR 218-8LPSTJ 218-10LPSTR 218-10LPSTJ
218-12LPSTR 218-12LPSTJ 218-10LPST 218-2LPST 218-2LPSTJ 218-2LPSTR 218-4LPST 218-6LPST 218-
8LPST 218-4LPSJF 218-6LPSTJRF 218-4LPSTJR 218-4LPSTJ 218-2LPSTF 218-4LPSTRF 218-6LPS 218-
4LPSJRF 218-4LPS 218-8LPS 218-2LPS 218-4LPSJ 218-4LPSTF 218-6LPSTRF 218-2LPSTRF 218-8LPSTRF
218-06LPSTJF 218-2LPSTJRF
