2520-3-01-50-00-00-07-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 2520-3-01-50-00-00-07-0

Preview

2520-3-01-50-00-00-07-0: DescriptionCircuit Board Hardware - PCB 300u ELECTRO-SOLDER; CategoryThe connector terminals; File Size425KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

2520-3-01-50-00-00-07-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2520-3-01-50-00-00-07-0	-	-	View	Buy Now

2520-3-01-50-00-00-07-0 Overview

Circuit Board Hardware - PCB 300u ELECTRO-SOLDER

2520-3-01-50-00-00-07-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	2520
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

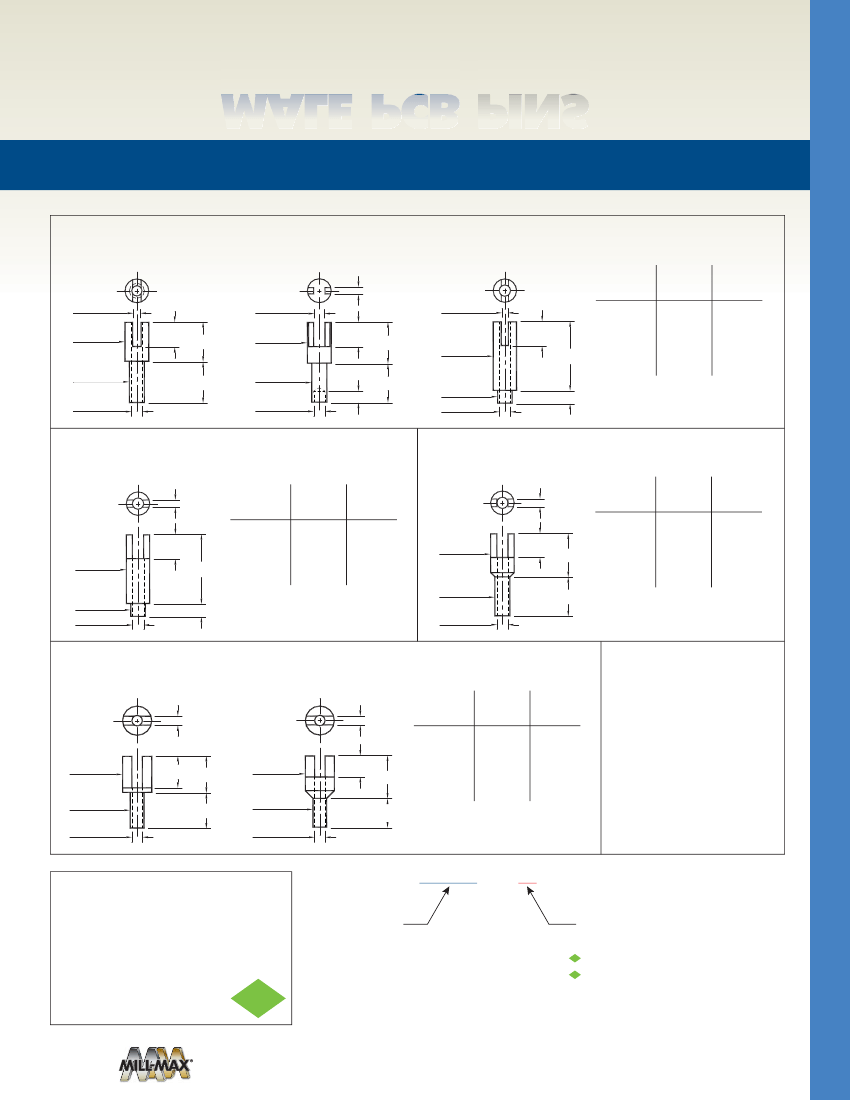

MALE PCB

PINS

SOLDER TERMINALS SLOTTED

2303

2303-X-01-XX-00-00-07-0

Swage mount in .064 hole

2323

2323-X-01-XX-00-00-07-0

Swage mount in .064 hole

.025

2322

2322-X-01-XX-00-00-07-0

Swage mount in .064 hole

Basic Part

Number

.025 SLOT

Board

Thickness

Length

V

.040 SLOT

.094 DIA.

.093

.040 SLOT

.094 DIA.

.094

.156

.094

.095 DIA.

.312

23XX-1

23XX-2

23XX-3

23XX-4

.031

.062

.094

.125

.053

.084

.115

.147

.060 DIA.

.043 DIA.

HOLE

V

.060 DIA.

.043 DIA.

HOLE

.040

V

.061 DIA.

.048 DIA.

HOLE

V

2320

2320-X-01-XX-00-00-07-0

Swage mount in .064 hole

.030

2328

2328-X-01-XX-00-00-07-0

Swage mount in .064 hole

Basic Part

Number

Board

Thickness

Length

V

.029

Basic Part

Number

Board

Thickness

Length

V

.093

.094 DIA.

.281

2320-1

2320-2

2320-3

.031

.062

.094

.053

.084

.115

.094

DIA.

.093

.173

2328-1

2328-2

2328-3

2328-4

.031

.062

.094

.125

.062

.094

.125

.156

.060

DIA.

.060 DIA.

.046 DIA.

HOLE

V

.042

DIA.

HOLE

2520

2520-X-01-XX-00-00-07-0

Swage mount in .064 hole

.037

2517

2517-X-01-XX-00-00-07-0

Swage mount in .064 hole

.026

Basic Part

Number

Board

Thickness

Length

V

.125

DIA.

.134

.156

.125

DIA.

.093

.188

25XX-1

25XX-2

25XX-3

25XX-4

.031

.062

.094

.125

.062

.094

.125

.156

.060 DIA.

.045 DIA.

HOLE

V

.060 DIA.

V

.043 DIA.

HOLE

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Swage pins are annealed )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

RoHS - 2

2011/65/EU

ORDER CODE: XXXX - X - 01 -

XX

- 00 - 00 - 07 - 0

BASIC PART #

SPECIFY PIN FINISH:

01

200

”

TIN/LEAD OVER NICKEL

80

200

”

TIN OVER NICKEL (RoHS)

44

300

”

SILVER OVER COPPER (RoHS)

50

300

”

ELECTRO-SOLDER

(60/40 SnPb)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 239 | MALE PCB PINS
