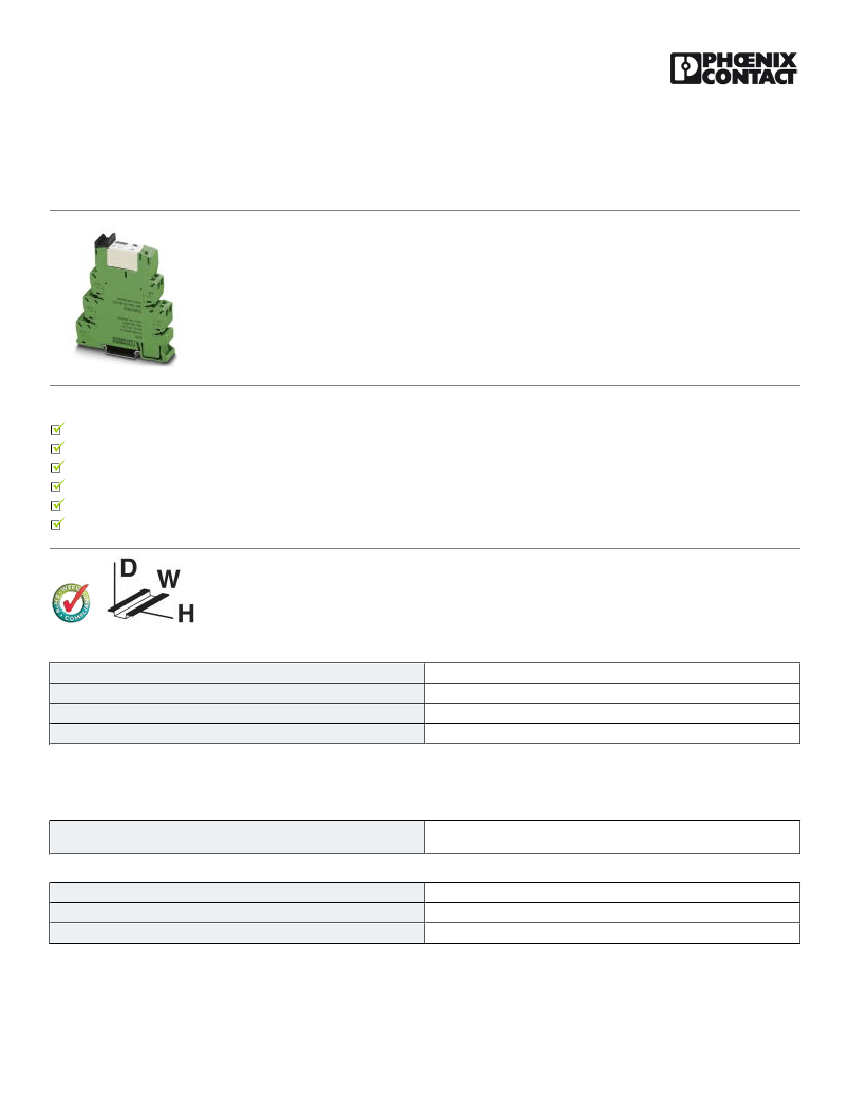

Relay Module - PLC-RSP-230UC/21-21AU - 2912620
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PLC-INTERFACE, consisting of PLC-BSP.../21-21AU basic terminal block with spring-cage connection and plug-
in miniature relay with multi-layer gold contact, for mounting on DIN rail NS 35/7,5, 2 PDTs, input voltage 230 V
AC
Product Features
Slim design
Efficient connection to system cabling using V8 adapter
RT III sealed relay
Safe isolation according to DIN EN 50178 between coil and contact
Integrated input circuit and interference suppression circuit
Functional plug-in bridges
Packing unit
1 pc
65.67 GRM
85364900
Germany
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
14 mm
80 mm
94 mm
Ambient conditions
10/27/2014 Page 1 / 6
https://www.phoenixcontact.com/us/products/2912620
Relay Module - PLC-RSP-230UC/21-21AU - 2912620
Technical data
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-40 °C ... 55 °C
-40 °C ... 85 °C
Coil side
Nominal input voltage U
N
Typical input current at U
N
Typical response time
Typical release time
Operating voltage display
Protective circuit
230 V AC (220 V DC)
220 V DC
4.3 mA (at 220 V DC)
4.5 mA (for 230 V AC)
7 ms
10 ms
Yellow LED
Bridge rectifier Bridge rectifier
Contact side
Contact type
Contact material
Maximum switching voltage
Minimum switching voltage
Maximum inrush current
Min. switching current
Limiting continuous current
Interrupting rating (ohmic load) max.
Note
Maximum switching voltage
Minimum switching voltage
Limiting continuous current
Maximum inrush current
Min. switching current
Interrupting rating (ohmic load) max.
2 PDT
AgNi, hard gold-plated
30 V AC
36 V DC
100 mV (at 10 mA)
50 mA
1 mA (at 24 V)
50 mA
1.2 W (at 24 V DC)
the following values are applicable if a gold layer is destroyed
250 V AC/DC
5 V AC/DC
6A
15 A (300 ms)
10 mA
140 W (at 24 V DC)
85 W (at 48 V DC)
60 W (at 60 V DC)
44 W (at 110 V DC)
60 W (at 220 V DC)
1500 VA (for 250 V AC)
Switching capacity in acc. with DIN VDE 0660/IEC 60947
2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.2 A (at 250 V, DC13)
10/27/2014 Page 2 / 6
https://www.phoenixcontact.com/us/products/2912620
Relay Module - PLC-RSP-230UC/21-21AU - 2912620
Technical data
Contact side
2 A (at 24 V, AC15)
2 A (at 120 V, AC15)
2 A (at 250 V, AC15)
General
Operating mode
Degree of protection
Mechanical service life
Inflammability class according to UL 94
Designation
Standards/regulations
100% operating factor
RT III (Relay)
3 x 10 cycles
V0
Standards/regulations
IEC 60664
EN 50178
IEC 62103
Rated surge voltage / insulation
Pollution degree
Surge voltage category
Mounting position
Assembly instructions
6 kV / Basic isolation
2
III
any
In rows with zero spacing
7
Connection data
Connection method
Stripping length
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil max
Conductor cross section AWG/kcmil min.
Spring-cage connection
8 mm
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
14
26
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27371102
27371102
27371001
27371001
27371001
27371001
10/27/2014 Page 3 / 6
https://www.phoenixcontact.com/us/products/2912620
Relay Module - PLC-RSP-230UC/21-21AU - 2912620
Classifications
eCl@ss
eCl@ss 8.0
27371001
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000196
EC000196
EC000196
EC000196
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211916
39121515
39121515
39121515
39121515
Approvals
Approvals
Approvals
UL Listed / cUL Listed / GL / UL Recognized / cUL Recognized / cULus Recognized / cULus Listed
Ex Approvals
Approvals submitted
Approval details
UL Listed
cUL Listed
10/27/2014 Page 4 / 6
https://www.phoenixcontact.com/us/products/2912620
Relay Module - PLC-RSP-230UC/21-21AU - 2912620
Approvals
GL
UL Recognized
cUL Recognized
cULus Recognized
cULus Listed
Drawings
Circuit diagram
21
24
A2
A1
11
14
12
22
