83881102: DescriptionBoard to Board u0026 Mezzanine Connectors RECEPTACLE 8P; CategoryTopical application Mechanical and electrical/engineering/automation; File Size136KB，3 Pages; ManufacturerCrouzet

Download Datasheet Parametric View All

83881102 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	83881102	-	-	View	Buy Now

83881102 Overview

Board to Board u0026 Mezzanine Connectors RECEPTACLE 8P

83881102 Parametric

Parameter Name	Attribute value
Product Category	Limit Switches
Manufacturer	Crouzet
RoHS	Details
Contact Form	SPDT
Actuator	Roller Plunger
Current Rating	10 A
Operating Force	36 N
NEMA Rating	1, 3, 4, 6, 13
Mounting	Cable
IP Rating	IP66, IP67
Operating Temperature Range	- 25 C to + 70 C
Factory Pack Quantity	1
Switch Type	Limit Switches
Type	Compact Limit Switch

Preview

Download Datasheet

View All

02/11/2015

www.crouzet.com

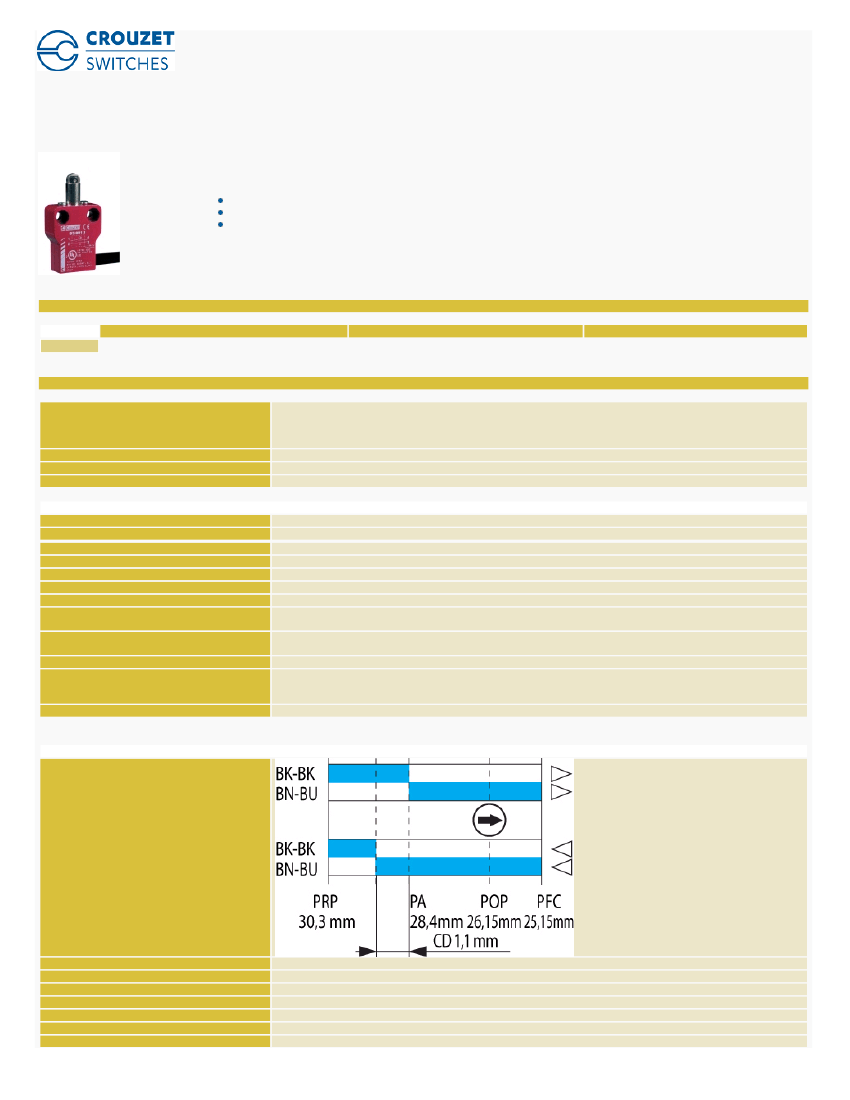

83880 with cable output Metal roller plunger Part number 83881102

IP 66/67

Metal case

cUL approval

Part numbers

Type

83 881 102

Metal roller plunger

Characteristics

Standard

Type of output

Cable length 2 m

Specifications

Conformity to standards

IEC / EN 60947.5.1

Dimensional conformity : NFC 63145

Low voltage directive : 73/23/EEC and 93/68/EEC

Electric shock protection : NFC 20030 or IEC 60536 class 1, degree of pollution 3

Protection against electric shocks

Degree of protection IEC 60529

Degree of protection according to NEMA 250

Type 1, 3, 4, 6, 13

Electrical characteristics

Connection

Operating temperature (°C)

Assigned impulse voltage (Uimp) - V

Assigned insulation voltage Ui (V)

Thermal current I (A)

Low-load switching - Minimum voltage (V)

Low-load switching - Minimum current (mA)

Assigned working characteristics (EN 60 947.5.1, UL

508)

Use category according to IEC 947.5.1

Use category according to UL 508

Electrical protection

-25 →+70 °C

2500

500

100

A300 = AC15 250 V 6 A

Q150 = DC13 24 V 8 A

AC15=250 V/6 A

DC13=24 V/8 A

A300 - Q150

Integral earth wire

Short-circuit protection device : IEC/EN 60947.5.1

Fuse 6 AgC

UL 508, UL 50

Approvals

Mechanical characteristics

Sequence

Snap action

Minimum operating force (N)

Minimum operating force (Nm)

Minimum total travel force (N)

Minimum total travel force (Nm)

Min. positive opening travel (N)

Min. positive opening travel (Nm)

Mechanical life (millions of operations)

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
