Industrial Relays ST-REL2-KG 60/1

2823641 Parametric

Parameter Name	Attribute value
Product Category	Industrial Relays
Manufacturer	PHOENIX CONTACT
Factory Pack Quantity	1
Unit Weight	1.166863 oz

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/hq/products/2823641

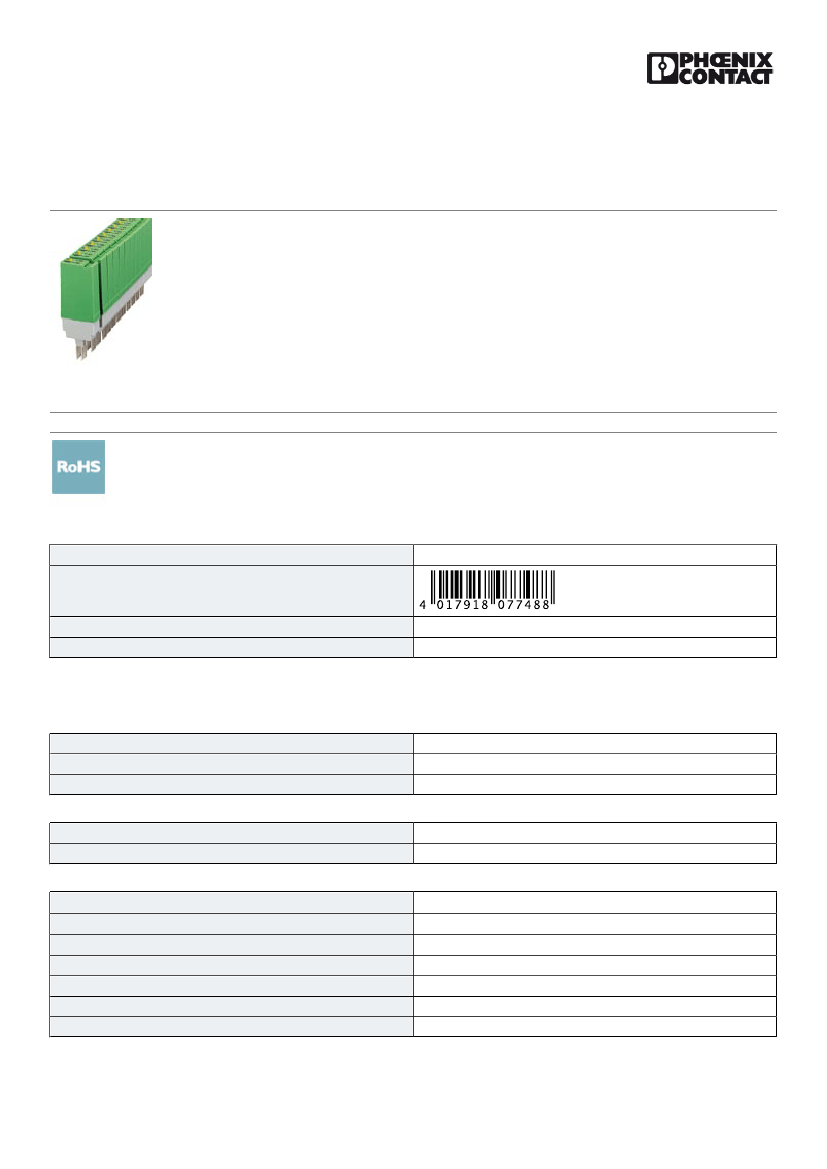

Relay connectors - ST-REL2-KG 60/1 - 2823641

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Relay connector, fitted with miniature switching relay, contacts (AgNi): Medium to large loads, 1 N/O contact,

60 V AC/DC input voltage, with light indicator, can be plugged into basic terminal blocks

The illustration shows version ST-

REL 2-KG 24/1

Key Commercial Data

Packing unit

GTIN

Custom tariff number

4017918077488

85364190

10 STK

Technical data

Dimensions

Width

Height

Depth

14.6 mm

33 mm

66.5 mm

Ambient conditions

Ambient temperature (operation)

Ambient temperature (storage/transport)

-20 °C ... 50 °C

-20 °C ... 70 °C

Coil side

Nominal input voltage U

Input voltage range in reference to U

Typical input current at U

Typical response time

Typical release time

Protective circuit

Operating voltage display

60 V AC/DC

0.8 ... 1.1

10 mA

7 ms (with DC)

11 ms (with DC)

Bridge rectifier, varistor

yes
