Mallory Sonalert Products,Inc.

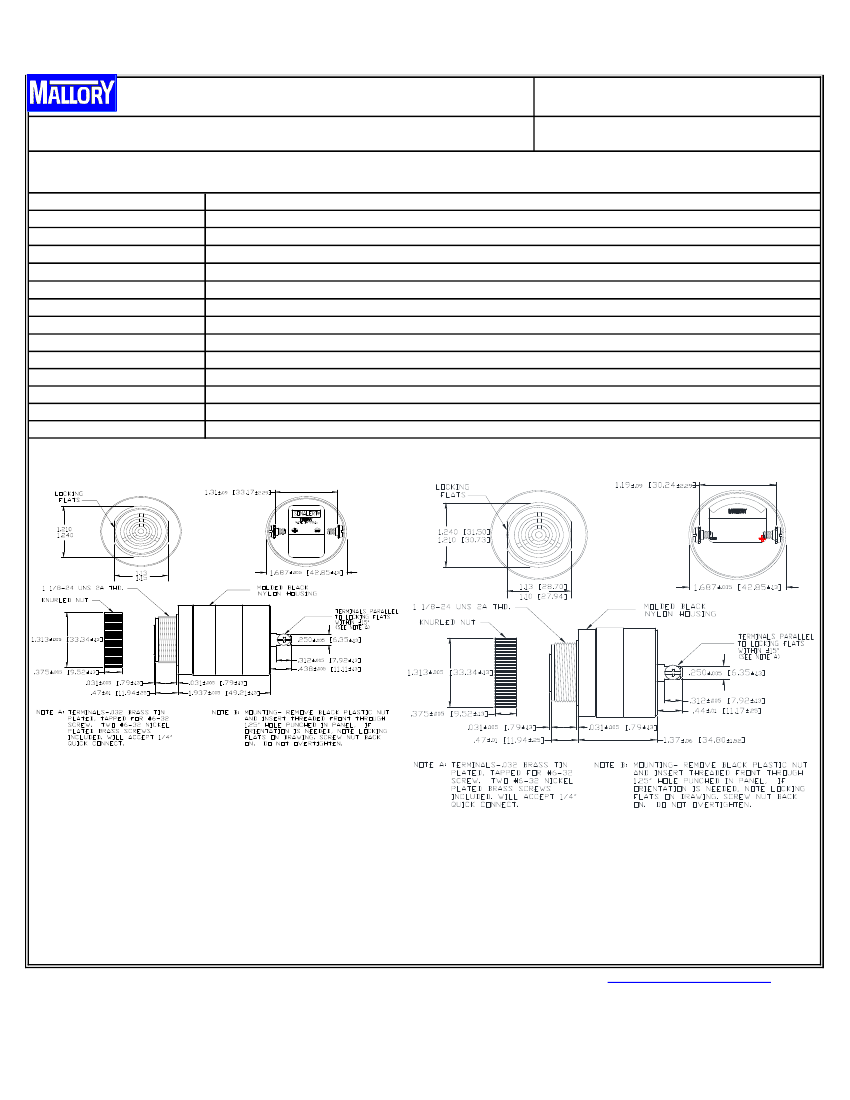

Sales Outline Drawing
Specifications:
Sound Level Category
Mode of Operation
Voltage Rating
Frequency
Loudness @ 2 FT
Current Draw
Housing Material
Storage Temperature
Operating Temperature
Panel Mounting
Knurled Nut
Weight (Typical)
NEMA 3R,4X, & 12
Options
Part #:
Revision:
SCS045MD7DT2S
D
Medium
Dual Tone 800 Hz – 600 Hz
10 to 45 VDC
800 - 600 Hz
80 dB(A) Typ.
250mA MAX
6/6 Nylon, Color: Black
-40° to +85° C
-30° to +65° C
Recommended hole size is 1.25"(31.75mm). Thread front will fit standard 30mm(1.181") hole.
Used to attach part to panel. The max recommended torque is 10 in-lbs.
2.1 oz (60g)
Approved with use of ACC03.
Please contact factory.
Dimensions:
Inches (mm)
PART DIMENSIONS BEFORE CODE DATE:
1030 5
ROHS Compliant
PART DIMENSIONS AFTER CODE DATE:
1031 1
S
A
L
E
R
T
®
ON
Made in U.S.A.
