0.5mm and 1mm Pitch Connectors For FPC/FFC
FH12 Series
Flip-lock
sFeatures

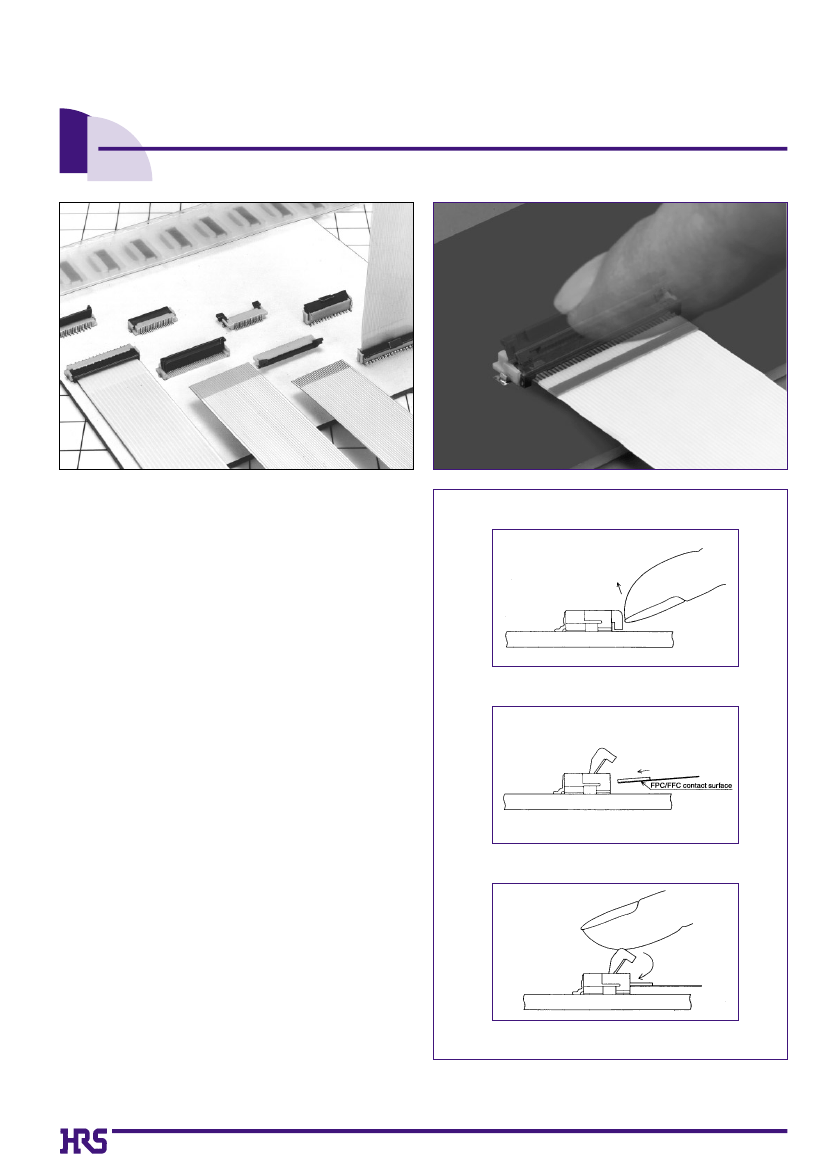

1. Ease of Use and Space Savings
Only one finger or 6.9N (Newtons) of force is required to
lock Hirose’s rotational actuator (flip-lock) as compared
to using 2 fingers and 39.2N to close a FFC/FPC
connector from our competition.
The Flip-Lock design also allows customers to place 2
or more connectors side by side as there is no need to
waste additional board space for a side latch.
Rotating One-touch Mechanism
q
2. Strengthened Flip-lock Actuator
The standard Flip-Lock requires only 2.0mm height
above the board. A strengthened lock lever is available
which only requires an additional 0.4mm.
w
3. Supports Thin FPC (0.18mm)
Hirose does not require double-sided FPC to have any
additional strengthening plate or stiffener and can therefore
support a thickness of as little as 0.18mm +/- 0.05.
4. Hirose Ensures Reliability
Hirose’s patented half tuning fork contacts maintain the
required normal force without relying on the connector
housing. With our competitor’s conventional products
the housing walls support the contact force, which does
not provide for long-term reliability.
e
5. Prevention of Solder Bridge
Excess solder cavity absorbs excessive solder and
avoids solder bridging.
6. Three different assembly types
FH12 is offered in Top & Bottom Contact and Vertical
Mount and offered in both a 0.5mm contact pitch as well
as a 1.0mm contact pitch (bottom contact only).
sApplications
Notebook computers, printers, PDAs, digital cameras and
other compact devices for interconnecting the main circuit
board with the LCD, HDD or other device.
6
sProduct
Specifications
Current rating: 0.4A DC Operating Temperature Range:_40 to +70ç (Note 1) Storage Temperature Range:_10 to +50ç (Note 2)
Rating
Voltage rating: 50V AC
Operating Humidity Range:Relative humidity, 90% max. Storage Humidity Range:Relative humidity, 90% max.
(Not dewed)
Applicable FPC
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Durability (Insertion/withdrawal)
5. Vibration
t=0.3±0.05
Tin-lead
plating(Note 3)
Specification
500M ohms minimum
No flashover or insulation breakdown.
50m ohms maximum
Contact resistance: 50m ohms maximum
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1µs or more
Contact resistance: 50m ohms maximum.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1µs or more
Contact resistance: 50m ohms maximum.
No damage, cracks, or parts dislocation.
t=0.18 ± 0.05 for FH12F-*S-0.5SH
Conditions
100V DC
150V AC/1 minute
1mA
20 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours in each of the 3 directions.
Acceleration of 490 m/s
2
, 11 ms duration,
sine half-wave waveform, 3 cycles in each of the 3 axis.
96 hours at temperature of 40ç and humidity of 90% to 95%
5 cycles under conditions as follows;
Temperature: -40ç
/
15 to 35ç
/
85ç
/
15 to 35ç,
Time: 30
/
5 max.
/
30
/
5 max.(minutes)
(Not dewed)
6. Shock
Contact resistance: 50m ohms maximum.
7. Humidity(Steady state) Insulation resistance: 50M ohms minimum.
No damage, cracks, or parts dislocation.
8. Temperature Cycle
9.Resistance to Soldering heat
Contact resistance: 50m ohms maximum.
Insulation resistance: 50M ohms minimum.
No damage, cracks, or parts dislocation.
No deformation of
Reflow: At the recommended temperature profile
Manual soldering: 350±5ç for 3 seconds
components affecting performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers nonconducting condition of installed connectors in storage, shipment or during transportation.
Note 3: When FPC is gold plated, the connector contacts should be also gold plated: Select the (05) specification.
sMaterial
Part
Insulator
Contact
Macal Fittings
Material
Polyamide
PPS
Phosphor bronze
Brass
Finish
Color : Beige
Color : Dark brown
Tin-lead
plating
Tin-lead
plating
Remarks
UL94V-0
–––––––
sOrdering
Information
FH12
q
A - 10 (4) - S A - 0.5 SH (05)
w
e
r
t
y
u
i
o
t
Contact alignment: Single
y
Eccentric direction:
Blank : standard type
A : Eccentric type
u
Contacts Pitch : 0.5mm, 1mm
i
Contact type
SH : SMT horizontal mounting type
SV : SMT vertical mounting type
o
Plating specification
Blank :
Tin-lead
plating
(05) : Gold plating
q
Series Name
: FH12
w
Blank : standard type
A : Top contact type
S : Type with strengthed flip-lock actuator
F : Type with 0.18mm FPC End Thickness
e
Standard type : Number of contacts
Eccentric type : Number of contacts in 0.5mm housing
r
Standard type : Blank
Eccentric type : Number of contacts
7

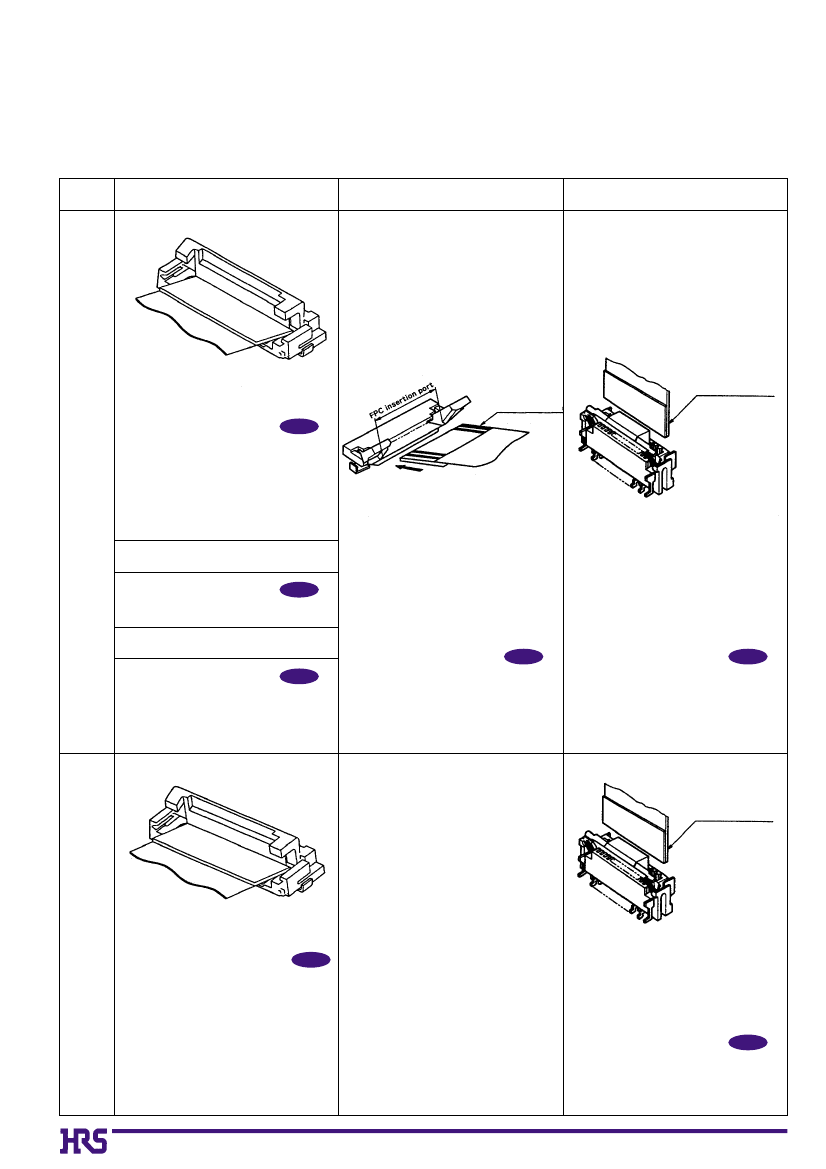

BSeries
Configuration
Pitch
Bottom Contact Type
Top Contact Type
Vertical mounting Type
FPC conductive
surface
FPC conductive surface
(bottom side)
FH12-
**
S-0.5SH
P.12
Number of contacts 6, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 20,
0.5mm
22, 24, 25, 26, 28, 30,
32, 33, 34, 36, 40, 45,
50, 53
Type with Strengthened Lock Lever
FH12S-
**
S-0.5SH
P.13
Number of contacts 30, 40, 45, 50, 53
Type with 0.18mm FPC End Thickness
FH12A-
**
S-0.5SH
FH12F-
**
S-0.5SH
P.14
Number of contacts 6, 10, 12, 13, 14, 15, 16,
18, 20, 22, 24, 26, 28,
30, 32, (33), 34, 36, 40
P.15
FH12-
**
S-0.5SV
P.16
Number of contacts 10, 12 ,15, 16, 18, 20,
22, 24, 26, 28, 29, 30,
32, 33, 34, 36, 40, 42,
45, 50
Number of contacts 10, 12, 13, 15, 16, 17,
18, 20, 22, 24, 26, 30,
32, 33, 34, 36, 40, 45,
49, 50
FPC conductive surface
(bottom side)
1mm
Standard
FH12-
**
S-1SH
Standard
Number of contacts
5, 6, 7, 8, 9, 11,
P.18
Eccentric
FH12-
**
(**)
S-1SH
16, 22, 26
Eccentric
Number of contacts
4, 6, 8, 10, 11,
FH12-
**
S-1SV
24
P.19
Number of contacts
6, 7, 8, 16, 20, 22,
14, 19, 24
8
BConnector
Operating Instructions, precautions and recommendations

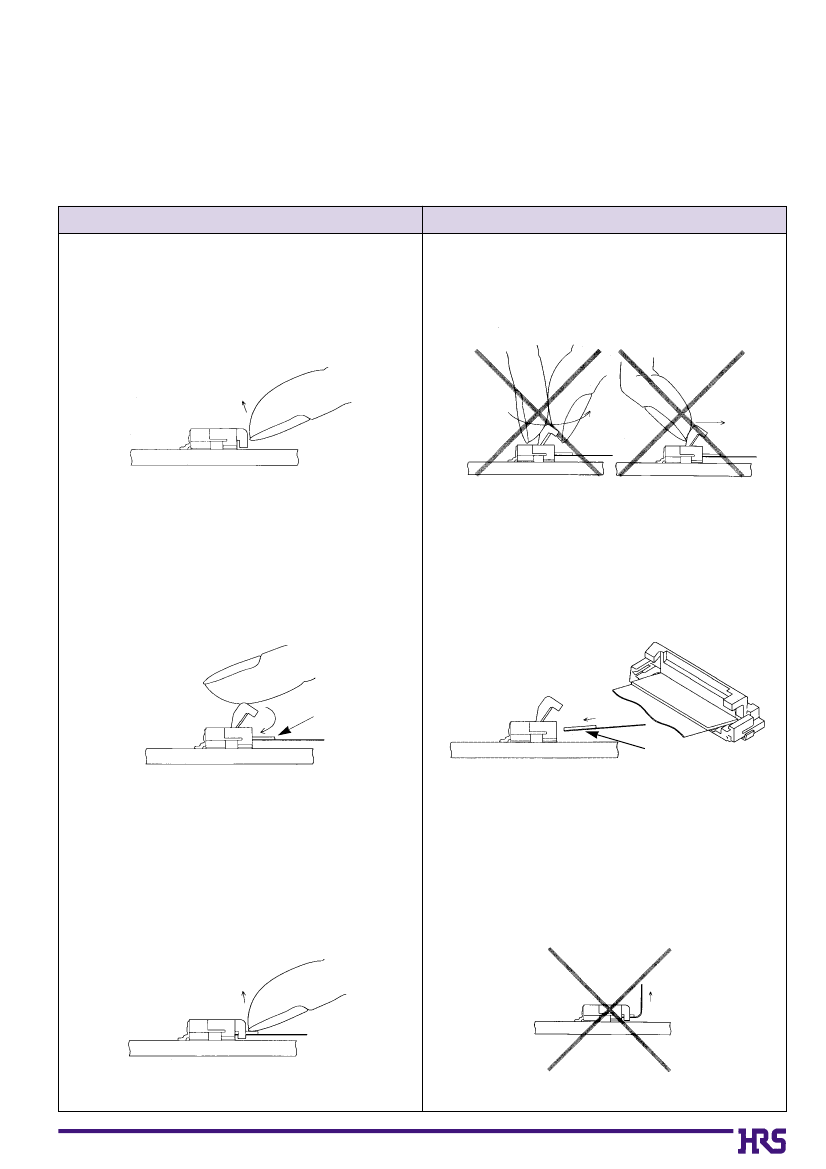

qBottom
Contact Type (common for 0.5mm/1mm)
Operation
Precautions
1) Avoid grasping the actuator with two fingers or lift-
ing the actuator with fingernail.
1. FPC/FFC Termination procedure.
Connector installed on the board.
1) Lift up the actuator. Use thumb or index finger.
2) Rotate down the actuator until firmly closed.
It is critical that the inserted FPC/FFC is not moved
and remains fully inserted. Should the FPC/FFC be
moved, open the actuator and repeat the process,
starting with Step 1 above.
2) Fully insert the FPC/FFC parallel to mounting sur-
face, with the exposed conductive traces facing
down.
Stiffener
FPC/FFC conductive traces
2. FPC/FFC Removal
1) Lift up the actuator.
2) Carefully remove the FPC/FFC.
3) Due to the structure of the connectors, they do
not have strong resistance to upward pulling;
therefore, support the FPC/FFC when a pulling
force is applied to it.
9

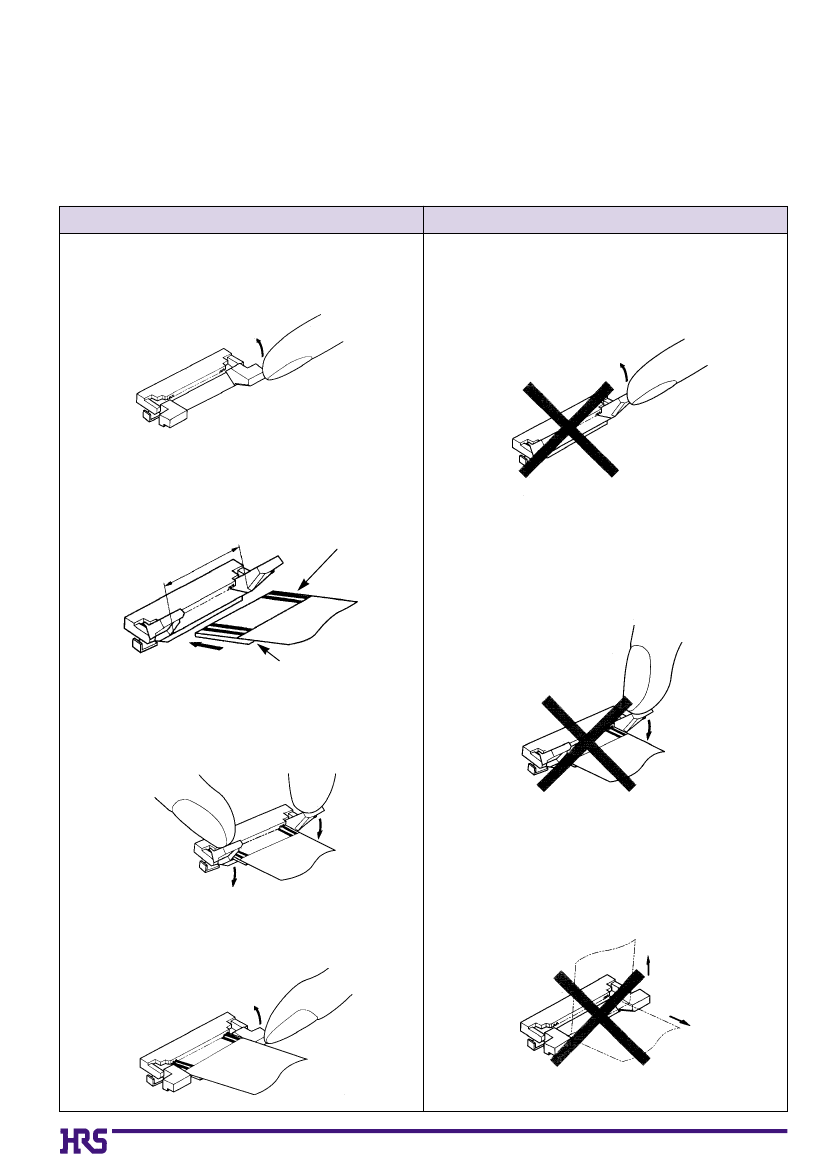

qTop
Contact Type
Operation
Precautions
1) Avoid forcing the actuator up or down without the
FPC/FFC inserted.
1. FPC/FFC Termination procedure.
Connector installed on the board.
1) Lift up the actuator. Use thumb or index finger.
2) Fully insert the FPC/FFC parallel to mounting sur-
face, with the exposed conductive traces facing
UP.
rea
na
io
ert
ins
C
FP
FPC/FFC conductive traces
2) When closing down the actuator apply equal pres-
sure to both sides of the actuator.
Stiffener
3) Rotate down the actuator until firmly closed.
It is critical that the inserted FPC/FFC is not moved
and remains fully inserted. Should the FPC/FFC be
moved, open the actuator and repeat the process,
starting with Step 1 above.
3) Avoid forced pulling of the FPC. Forced pulling
will cause the FPC to become disconnected or
damaged.
2. FPC/FFC Removal
1) Lift up the actuator.
2) Carefully remove the FPC/FFC.
10
