FC4513-440-S-12: DescriptionPin u0026 Socket Connectors PLUG HOUSE. 4 POS.; CategoryTopical application Mechanical and electrical/engineering/automation; File Size108KB，1 Pages; ManufacturerFascomp

Download Datasheet Parametric View All

FC4513-440-S-12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FC4513-440-S-12	-	-	View	Buy Now

FC4513-440-S-12 Overview

Pin u0026 Socket Connectors PLUG HOUSE. 4 POS.

FC4513-440-S-12 Parametric

Parameter Name	Attribute value
Product Category	Standoffs & Spacers
Manufacturer	Fascomp
RoHS	Details
Product	Standoffs
Type	Hex
Thread Size	4-40
Length	1 in
Material	Steel
Outside Diameter	3/16 in
Packaging	Bulk
Factory Pack Quantity	1

Preview

Download Datasheet

View All

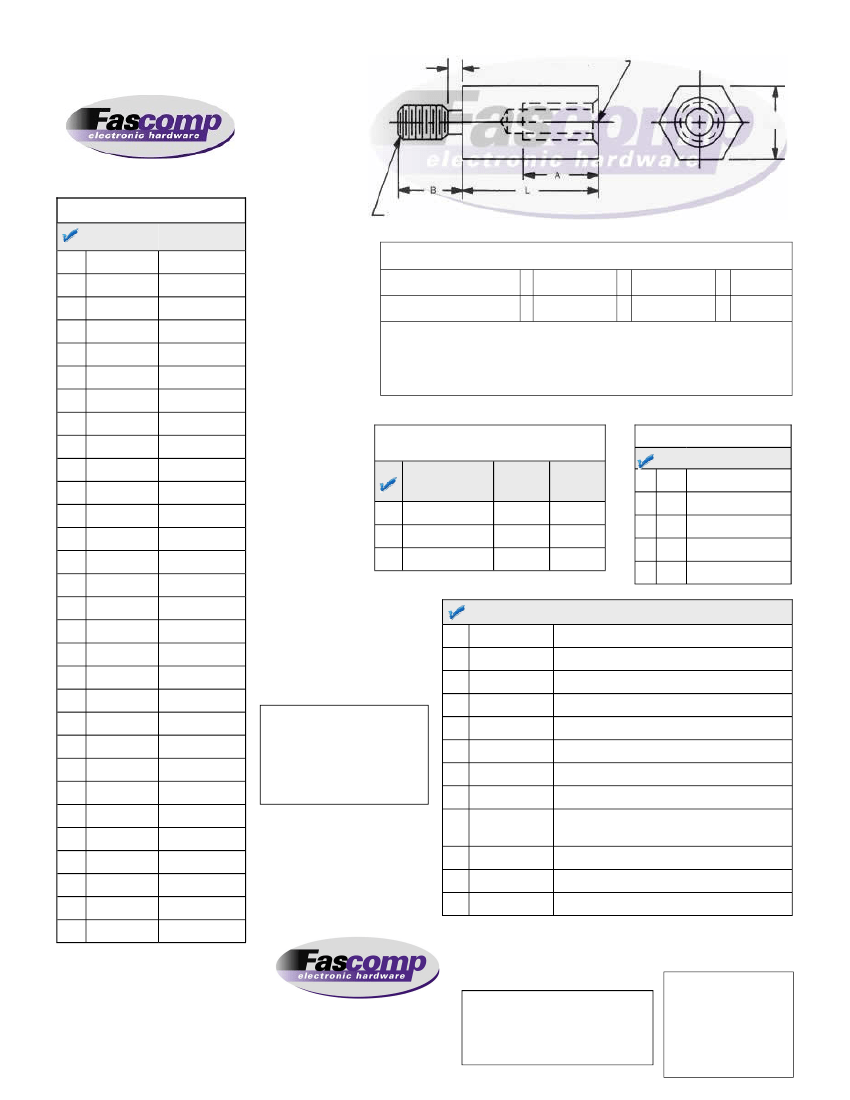

3/16 Hex Male-Female

1-1/2 THREAD

MAX. TO MINOR

DIA.

THREAD

3/16

Hex Length Table

FCXXXX

FC4500

FC4501

FC4502

FC4503

FC4504

FC4505

FC4506

FC4507

FC4508

FC4509

FC4510

FC4511

FC4512

FC4513

FC4514

FC4515

FC4516

FC4517

FC4518

FC4519

FC4520

FC4521

FC4522

FC4523

FC4524

FC4525

FC4526

FC4527

FC4528

FC4529

THREAD

Length (L)

3/16

1/4

5/16

3/8

7/16

1/2

9/16

5/8

11/16

3/4

13/16

7/8

15/16

1

1-1/16

1-1/8

1-3/16

1-1/4

1-5/16

1-3/8

1-7/16

1-1/2

1-9/16

1-5/8

1-11/16

1-3/4

1-13/16

1-7/8

1-15/16

2

A

B, S. SS

B, S

Tolerances

Unless otherwise Specified

.xxx +/-.005

.xx +/-.010

Angular +/- 1 Degree

Linear +/-.005

Break all sharp edges

Create a part number:

Length

FCXXXX

Thread

XXX

Material

XX

Finish

XX

_______________

-

________

-

_______

-

______

Thread

Short lengths, 'A' tapped to maximum depth

Material

Material Code (XX)

Depth

(A)

Length

(B)

Thread Code

(XXX)

A

B

S

SS

N

Aluminum

Brass

Steel

Stainless Steel

Nylon

256

440

632

3/16

1/4

3/8

5/32

3/16

1/4

Compatible Finish

A, B, S, SS

B, S

A

B, S

SS

A

0 - Plain

5 - Nickel Plate (QQ-N-290)

6 - Iridite #14 Gold (MIL-C-5541E)

7 - Iridite Clear (MIL-C-5541E)

9 - Alodine 1200

12 - Zinc Clear (ASTM-B-633)

16 - Electro Tin (MIL-T-10727 TYPE 1)

20 - Passivation (MIL-F-14072D)

22 - Clear Anodize (MIL-A-8625-TYPE2)

(Sulphuric) Hot Water Seal (Clear)

24 - Black Anodize (MIL-A-8625)

26 - Black Oxide

28 - Zinc Yellow (ASTM-B-633)

Facomp Electronic Hardware

7814 Kingspointe Pkwy

Orlando, FL 32819

www.fascomp.com

Tel: (407) 226-2112

Fax: (407) 226-3370

Source Contral Drawing:

To be produced by

Fascomp Electronic Hardware

This document is the

property of Fascomp

Inc. and shall not be

reproduced, distributed,

or used as a basis for

manufacturing without

written permission

from Fascomp Inc.
