83872112 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 83872112

83872112: CategoryTopical application Mechanical and electrical/engineering/automation; File Size152KB，3 Pages; ManufacturerCrouzet

Download Datasheet Parametric Compare View All

83872112 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	83872112	-	-	View	Buy Now

83872112 Parametric

Parameter Name	Attribute value
Product Category	Limit Switches
Manufacturer	Crouzet
RoHS	Details
Contact Form	SPDT
Actuator	Roller Plunger
Current Rating	10 A
Voltage Rating AC	125 VAC, 250 VAC
Voltage Rating DC	24 VDC
Operating Force	10 N
NEMA Rating	1, 3, 4, 6, 13
Termination Style	Cable (2 m)
Mounting	Cable
IP Rating	IP66, IP67
Operating Temperature Range	- 25 C to + 70 C
Factory Pack Quantity	1
Switch Type	Limit Switches
Type	Enclosed Limit Switch

Preview

Download Datasheet

View All

02/11/2015

www.crouzet.com

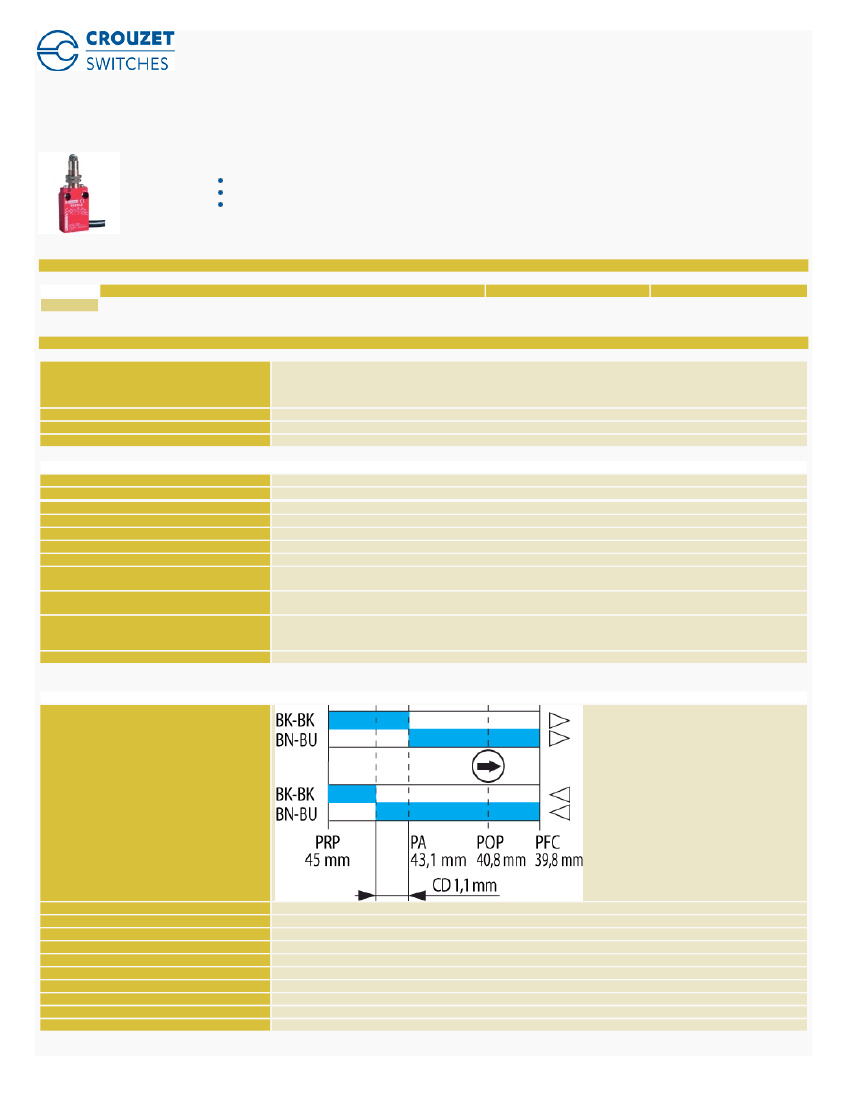

83870 with cable output Roller plunger - metal with threaded barrel Part number 83872101

IP 66/67

Metal case

cUL approval

Part numbers

Type

83 872 101

Roller plunger - metal with threaded barrel

Characteristics

Standard

Type of output

Cable length 1 m

Specifications

Conformity to standards

IEC / EN 60947.5.1

Dimensional conformity : NFC 63145

Low voltage directive : 73/23/EEC and 93/68/EEC

Electric shock protection : NFC 20030 ou IEC 60536 class 1, degree of pollution 3

Protection against electric shocks

Degree of protection IEC 60529

Degree of protection according to NEMA 250

Type 1, 3, 4, 6, 13

Electrical characteristics

Connection

Operating temperature (°C)

Assigned impulse voltage (Uimp) - V

Assigned insulation voltage Ui (V)

Thermal current I (A)

Low-load switching - Minimum voltage (V)

Low-load switching - Minimum current (mA)

Assigned working characteristics (EN 60 947.5.1, UL

508)

Electrical life according to IEC 947-5-1 appendix C

Electrical protection

-25 →+70 °C

2500

500

100

A300 = AC15 240 V 3 A / 120 V 6 A Alternating current

Q150 = DC13 125 V 0.55 A Direct current

250 V 3 A AC15 500,000 operations

24 V 8 W DC13 500,000 operations

Integral protective earth conductor

Short-circuit protection device : IEC/EN 60947-5-1

Fuse 6 AgG

UL 508, UL 50

Approvals

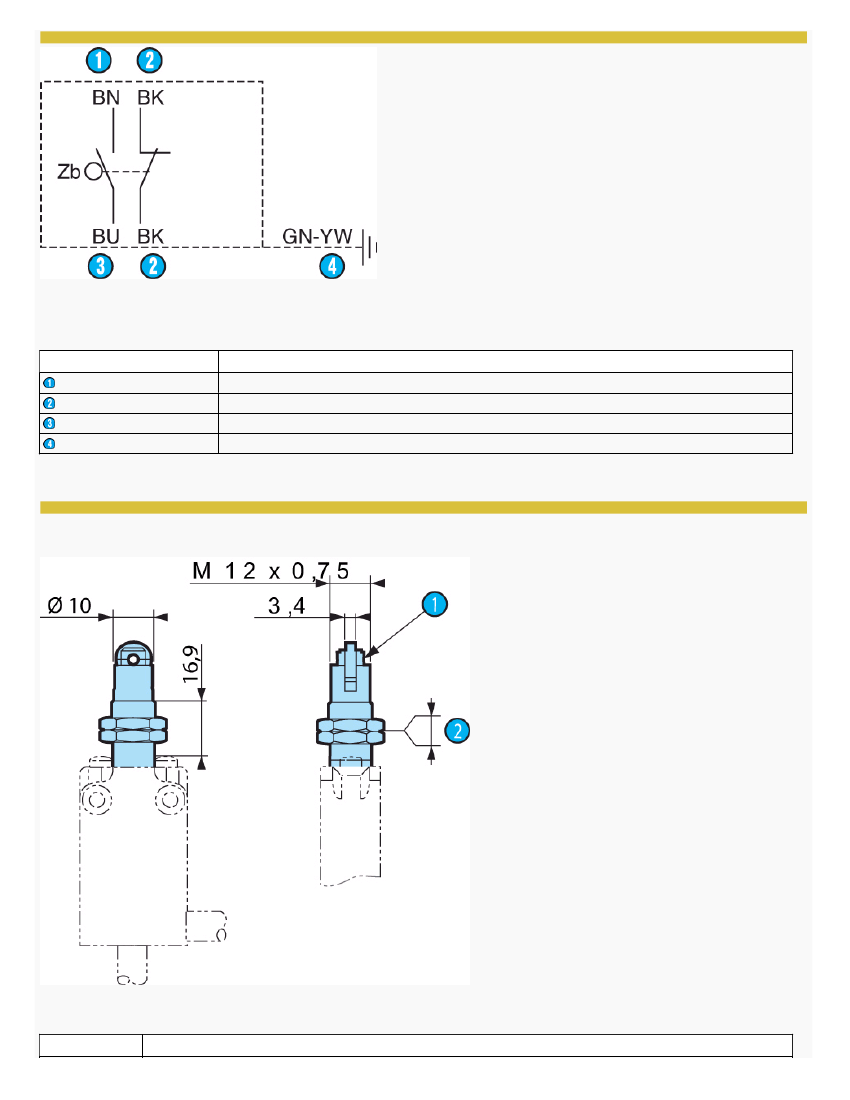

Mechanical characteristics

Sequence

Snap action

Minimum operating force (N)

Minimum operating force (Nm)

Minimum total travel force (N)

Minimum total travel force (Nm)

Min. positive opening travel (N)

Min. positive opening travel (Nm)

Mechanical life (millions of operations)

Vertical approach speed

Horizontal approach speed (30° cam)

Weight (g)

1 mm/min →0,5 m/s

1 mm/min →0,3 m/s

200

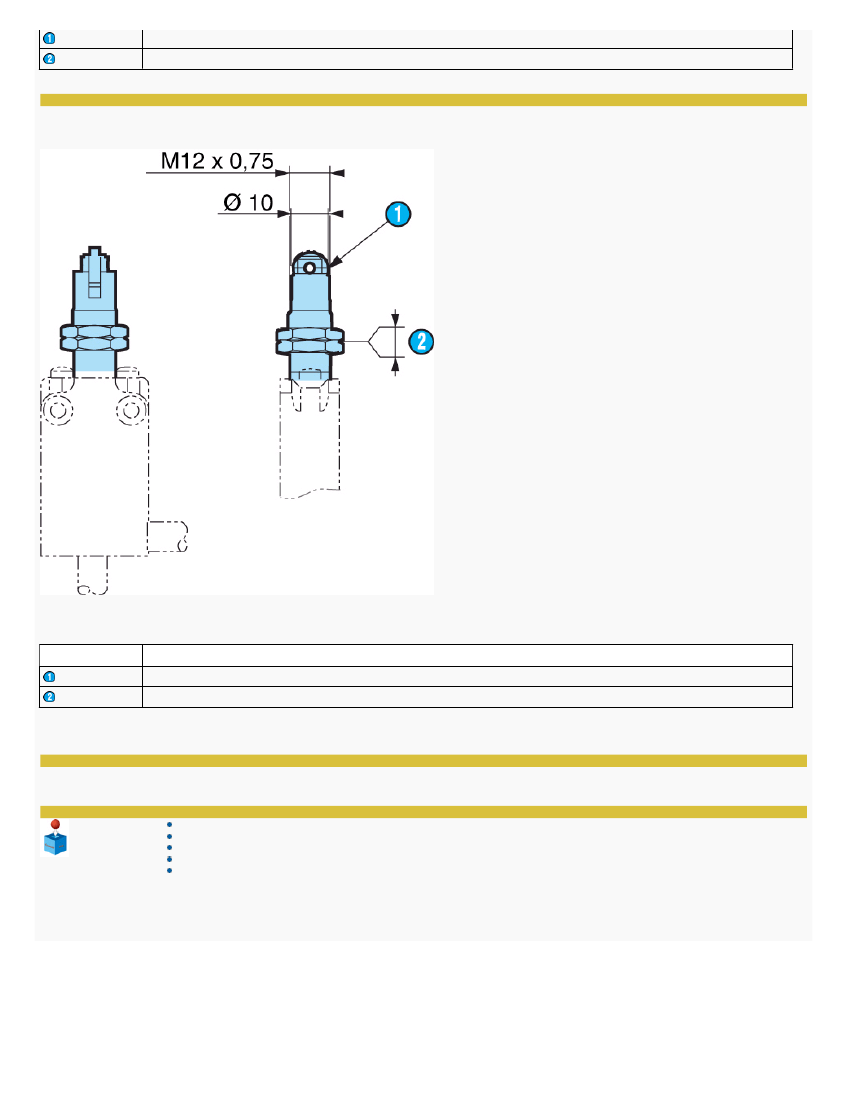

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected

83872112 Related Products

	83872112	83872101
Description		Limit Switches EB THRDRLR SIDXIT 1M CBL
Product Category	Limit Switches	Limit Switches
Manufacturer	Crouzet	Crouzet
RoHS	Details	Details
Contact Form	SPDT	SPDT
Actuator	Roller Plunger	Roller Plunger
Current Rating	10 A	10 A
Voltage Rating AC	125 VAC, 250 VAC	125 VAC, 250 VAC
Voltage Rating DC	24 VDC	24 VDC
Operating Force	10 N	10 N
NEMA Rating	1, 3, 4, 6, 13	1, 3, 4, 6, 13
Termination Style	Cable (2 m)	Cable (1 m)
Mounting	Cable	Cable
IP Rating	IP66, IP67	IP66, IP67
Operating Temperature Range	- 25 C to + 70 C	- 25 C to + 70 C
Factory Pack Quantity	1	1
Switch Type	Limit Switches	Limit Switches
Type	Enclosed Limit Switch	Enclosed Limit Switch
