25CPV120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 25CPV120

25CPV120: DescriptionSolid State Relays - Industrial Mount CPV; CategoryLED optoelectronic/LED photoelectric; File Size667KB，4 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric Compare View All

25CPV120 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	25CPV120	-	-	View	Buy Now

25CPV120 Overview

Solid State Relays - Industrial Mount CPV

25CPV120 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	PLASTIC PACKAGE-8
Reach Compliance Code	compliant
Maximum insulation voltage	4000 V
Number of components	1
Maximum on-state current	25 A
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Base Number Matches	1

Preview

Download Datasheet

View All

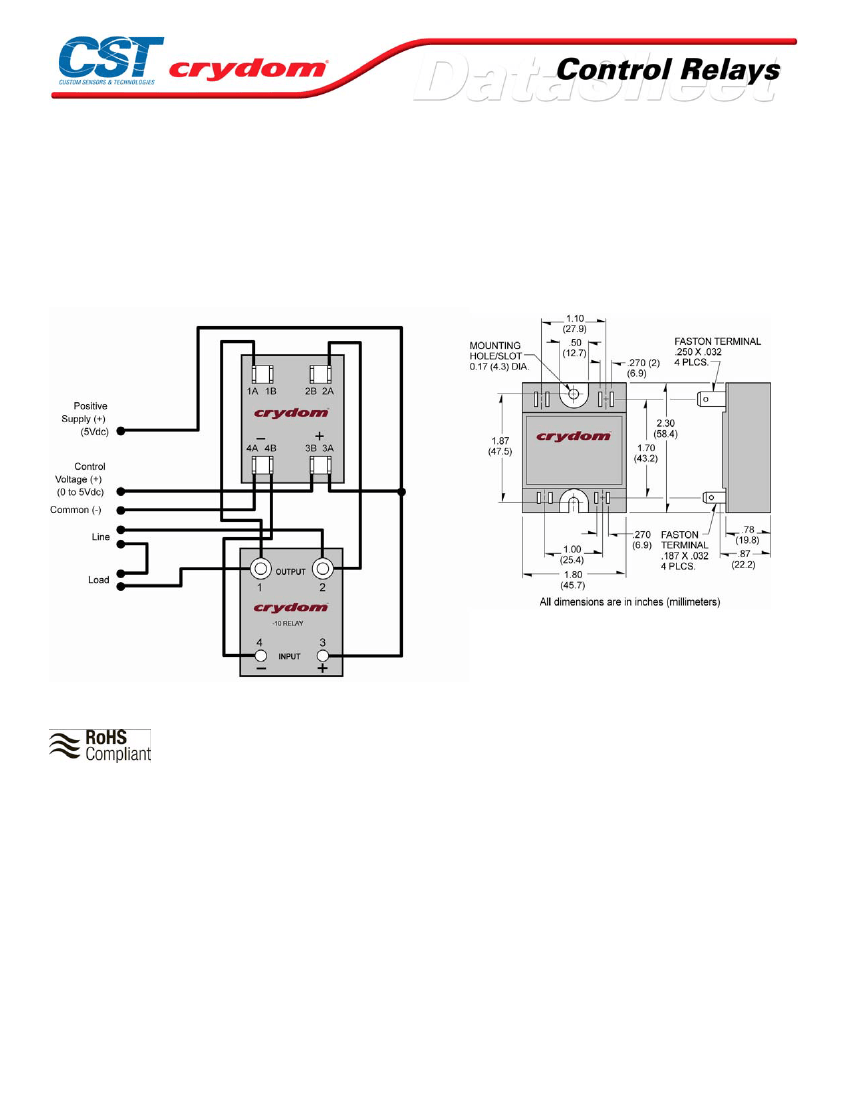

CPV Series

• Phase control modules

• 120/240 VAC models

• 0-5 V DC phase control

• Used with Series 1 random-fire solid-state relays

PRODUCT SELECTION

Description

120 VAC

240 VAC

OUTPUT SPECIFICATIONS (voltage) (1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)

OUTPUT SPECIFICATIONS (current) (1)

Description

CONTROL MODULE INPUT SPECIFICATIONS (1)

Description

Control Voltage Range

Minimum Turn-Off Voltage

Typical Supply Current

Nominal Control Input Impedance

Maximum Turn-On Time [msec]

Maximum Turn-Off Time [msec]

Maximum Load Current (3) [Arms]

Minimum Load Current [Arms]

Maximum Surge Current (16.6ms) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Thermal Resistance Junction to Case (Rjc) [°C/W]

Maximum I²t for Fusing (8.3 msec) [A² sec]

Minimum Power Factor (with Maximum Load)

CONTROL MODULE OUTPUT SPECIFICATIONS (Terminal 4B - Input to Relay) (1)

Description

DC Control

36 VDC

3.0 mA

0.5 VDC

1.0 µADC

Maximum Off-State Operating Voltage

Maximum Load Current (Sink)

Maximum On-State Voltage @ 3 mA

Max. Off State Leakage @ 10 VDC

GENERAL SPECIFICATIONS

Parameters

4000 Vrms

-30 to 80°C

-40 to 125°C

3.0 oz. (43g)

Themally Conductive Epoxy

Dielectric Strength, signal to load

Dielectric Strength, signal to Base

Ambient Operating Temperature Range

Ambient Storage Temperature Range

Weight (typical)

Encapsulation

For Contact information visit our web site.

10 A

25 A

50 A

75 A

90 A

10CPV120

10CPV240

25CPV120

25CPV240

50CPV120

50CPV240

75CPV120

75CPV240

90CPV120

90CPV240

120 VAC

240 VAC

90-140 VAC

400

500

180-280 VAC

600

500

10 A

0.04

120

1.6

1.48

0.5

25 A

0.04

250

1.6

1.02

260

0.5

50 A

0.04

625

1.6

0.31

4150

0.5

75 A

0.04

1000

1.6

0.63

1620

0.5

90 A

0.04

1200

1.6

0.28

6000

0.5

DC Control

0-5 VDC

1.0 VDC

1.6 mA @ 5 VDC

1500 Ohm

0.02

1/2 Cycle

www.crydom.com

Specifications subject to change without notice.

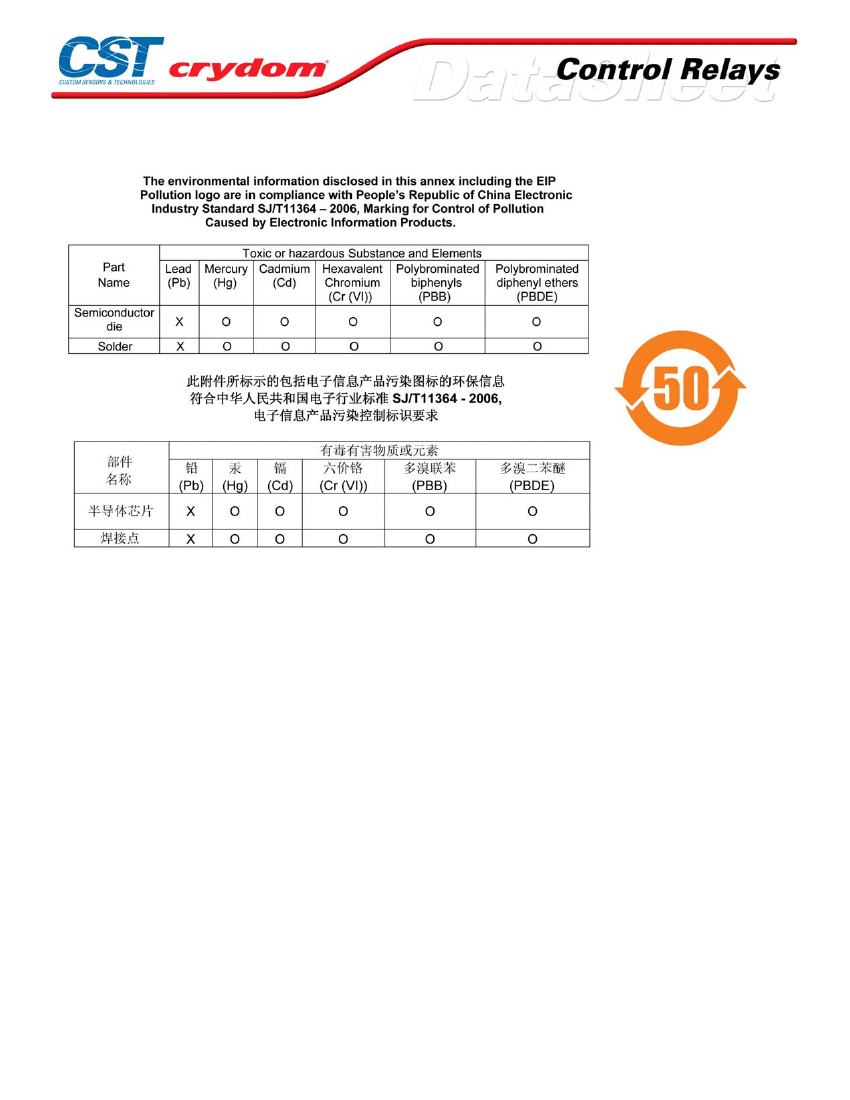

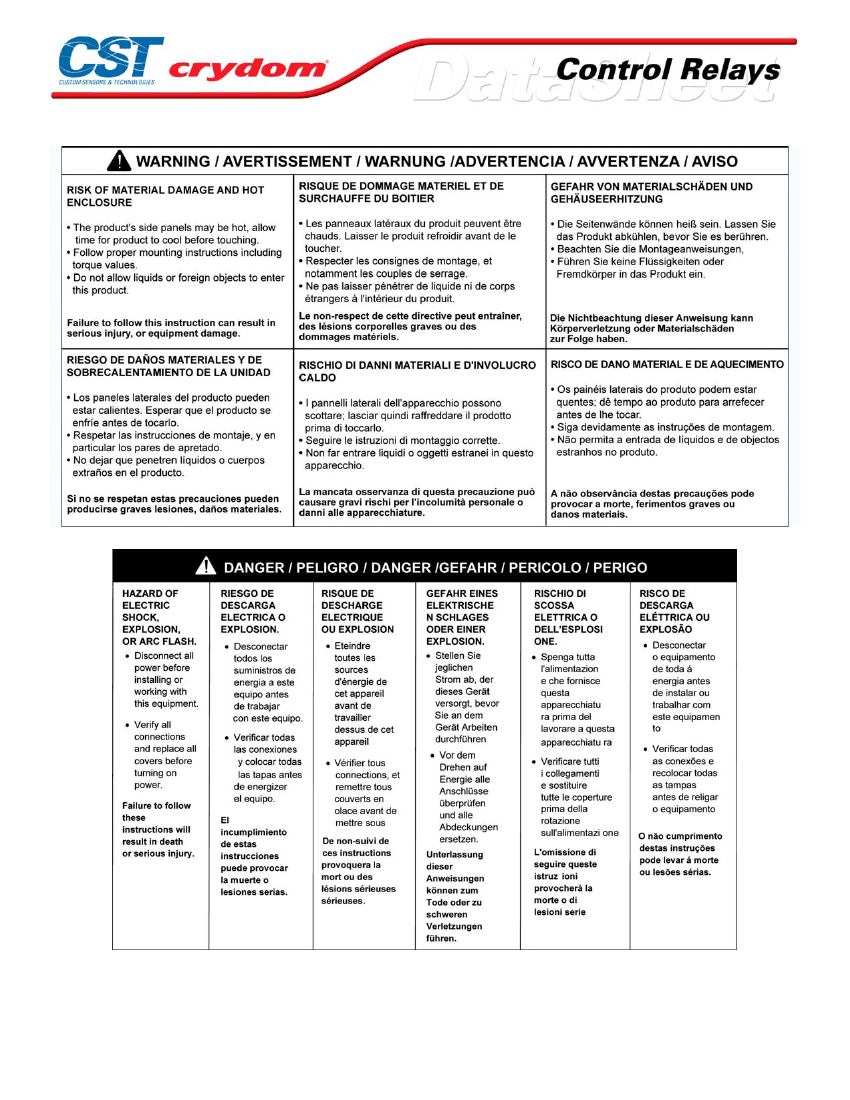

25CPV120 Related Products

	25CPV120	CPV120	25CPV240
Description	Solid State Relays - Industrial Mount CPV	I/O Modules Phase Control Module	Solid State Relays - Industrial Mount CPV
Is it Rohs certified?	conform to	-	conform to
package instruction	PLASTIC PACKAGE-8	-	PLASTIC PACKAGE-8
Reach Compliance Code	compliant	-	compliant
Maximum insulation voltage	4000 V	-	4000 V
Number of components	1	-	1
Maximum on-state current	25 A	-	25 A
Maximum operating temperature	80 °C	-	80 °C
Minimum operating temperature	-30 °C	-	-30 °C
Optoelectronic device types	TRIGGER OUTPUT SSR	-	TRIGGER OUTPUT SSR
Base Number Matches	1	-	1
